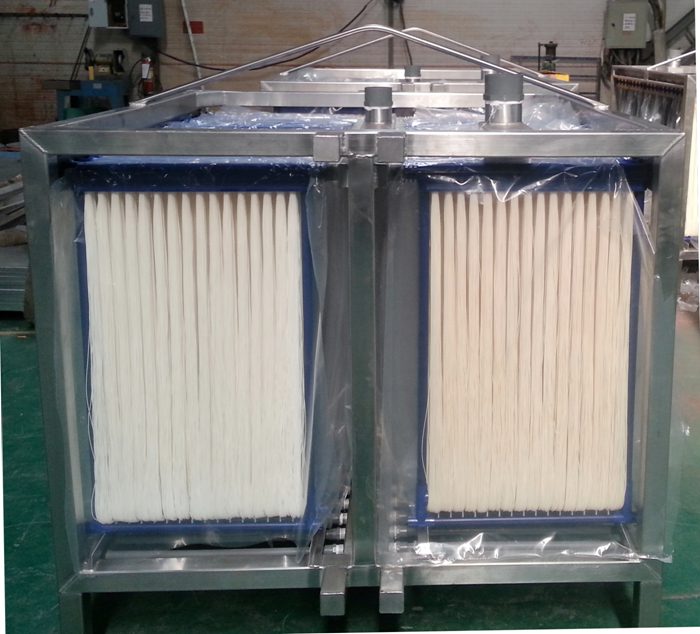

MBR Membrane Modular
MBR Membrane Bioreactor is designed for municipal or industrial wastewater treatment, the combination of a membrane process like microfiltration or ultrafiltration with a suspended .The MBR Modular provides an aerobic microbiological treatment of waste water in which good efficiency is acquired and purified water of good quality is achieved.
PVDF MBR Membrane Specification:
| Material | PVDF hollow fiber |
| Model | NM-MBR-1010 |
| I/O diameter | 0.6/1.2mm |
| Implosion pressure | Above 2 bar |
| Burst Pressure | Above 4 bar |
| Water Permeability | 10—25 L/m2. h |
| Elongation at break | About 25% |
| Operating Temperature | 5℃-45℃ |
| PH | 2月12日 |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.2 NTU |
| Filtration Method | Suction |
| Pore Size | 0.01—0.4um (Micron) |
Designation:
Accord to different input wastewater quality we suggest the range at: 10—25 L/m2. H
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
