Ultrafiltration Membrane (UF Technology)

Hinada is one of leading ultrafiltration membrane manufacturers in China, providing quality membrane with permeability is high, while pressure differences remain low, energy saving. Ultrafiltration Technology is used to produce potable water and process water, Hinada Series UF Elements could be used for filtration of various kind of industrial process water, surface water, borewell water, sea water and treated wastewater of ETP and STP system with low to moderate total suspended solids ( TSS ) content (< 50mg/L)

* Hollow fiber material: PVDF and PVC alloy
* Pore size: 0.01um
* Size : NM-UF-90 , NM-UF-200 , NM-UF-2860 , NM-UF-250 and customized
* PVDF Hollow Fiber inner / outer diameter: 0.6 / 1.2mm / PVC Hollow Fiber inner / outer diameter: 1.0 / 1.96mm
* Design flux: 60-160L / m2.h

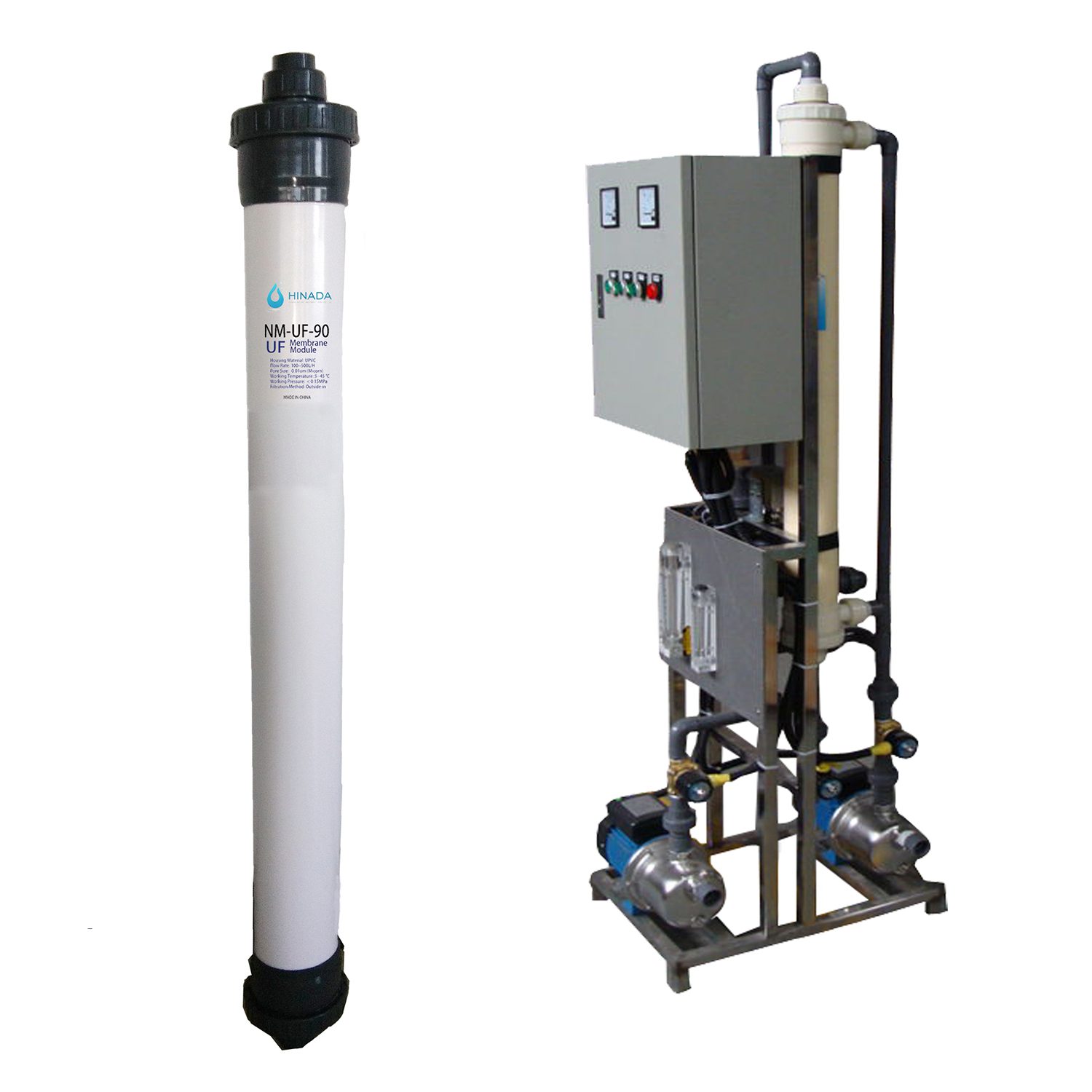

UF Membrane NM-UF-90

UF Membrane NM-UF-90 (4 Inch) Model: NM-UF-90 Permeate Water Quality: Suspended Matter ＞2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Descriptions: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Read More
Electrophoresis Painting UF Membrane

Electrophoresis painting EUF-90 Membrane Specification PP material hollow fiber Electrophoretic Paint Membrane Flow rate:100L/H Area:12㎡ Ø90×1175mm UPVC housing To meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint. Removal of impurity ions, purification of bath solution, improve coating quality
Read More
Household Water UF Filter

Household UF Filter specifications PVDF material hollow fiber Housing: SUS304, 2.0mm thickness Flow rate:500L/H Area:1.4㎡ Ø108×300mm Application: for city water or surface water filtration
Read More

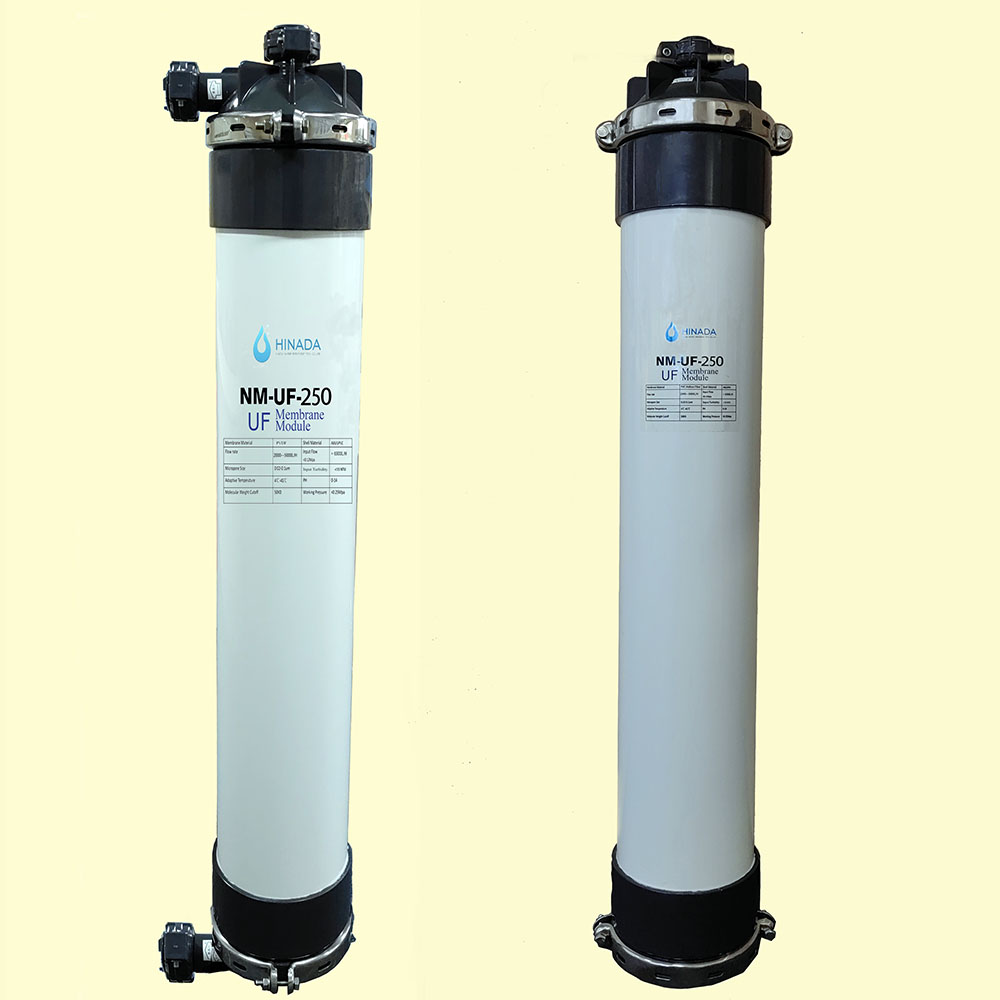

Ultrafiltration Membrane (NM-UF-250 )

Ultrafiltration Membrane (NM-UF-250 ) Application : Ideas for project with capacity above 30 m3/hour of river water treatment /city water Permeate Water Quality: Suspended Matter ＞2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Description: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Read More

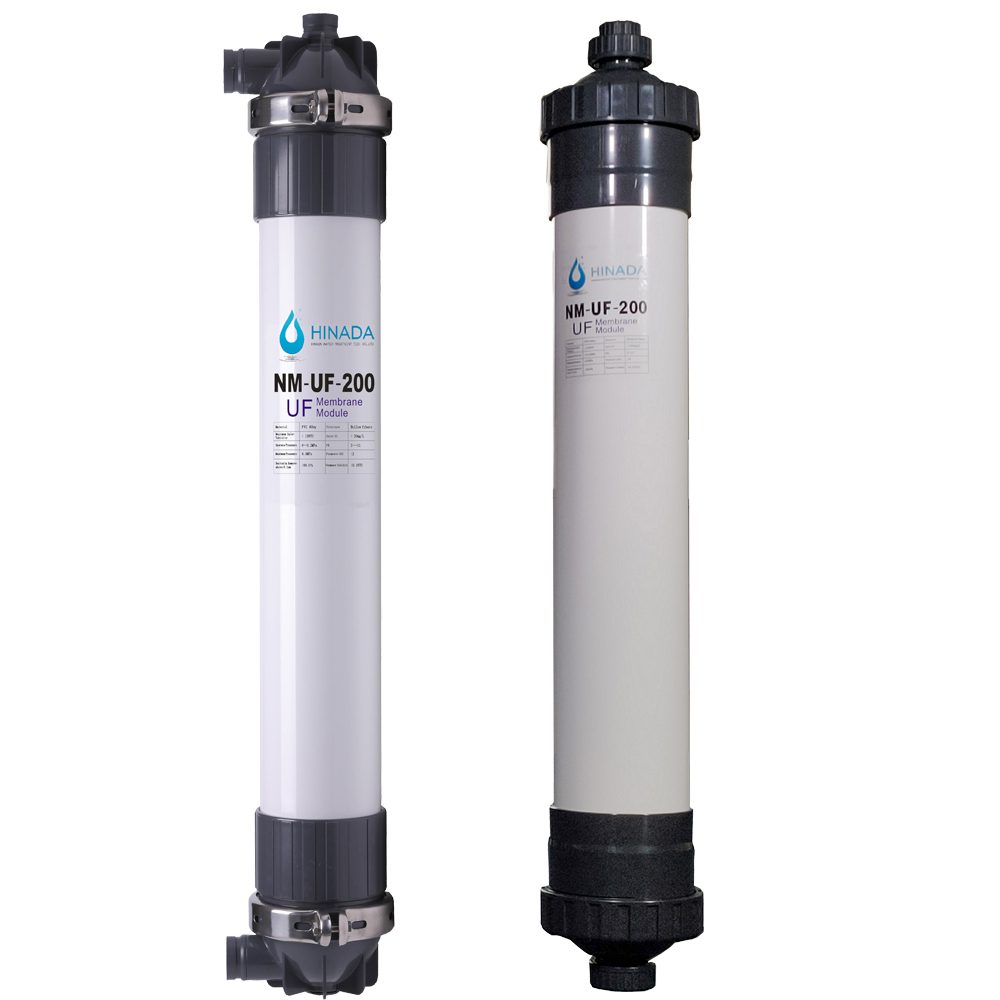

Ultrafiltration Membrane NM-UF-200

Model: NM-UF-200 NM-UF-200 Permeate Water Quality: Suspended Matter ＞2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Descriptions: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Read More

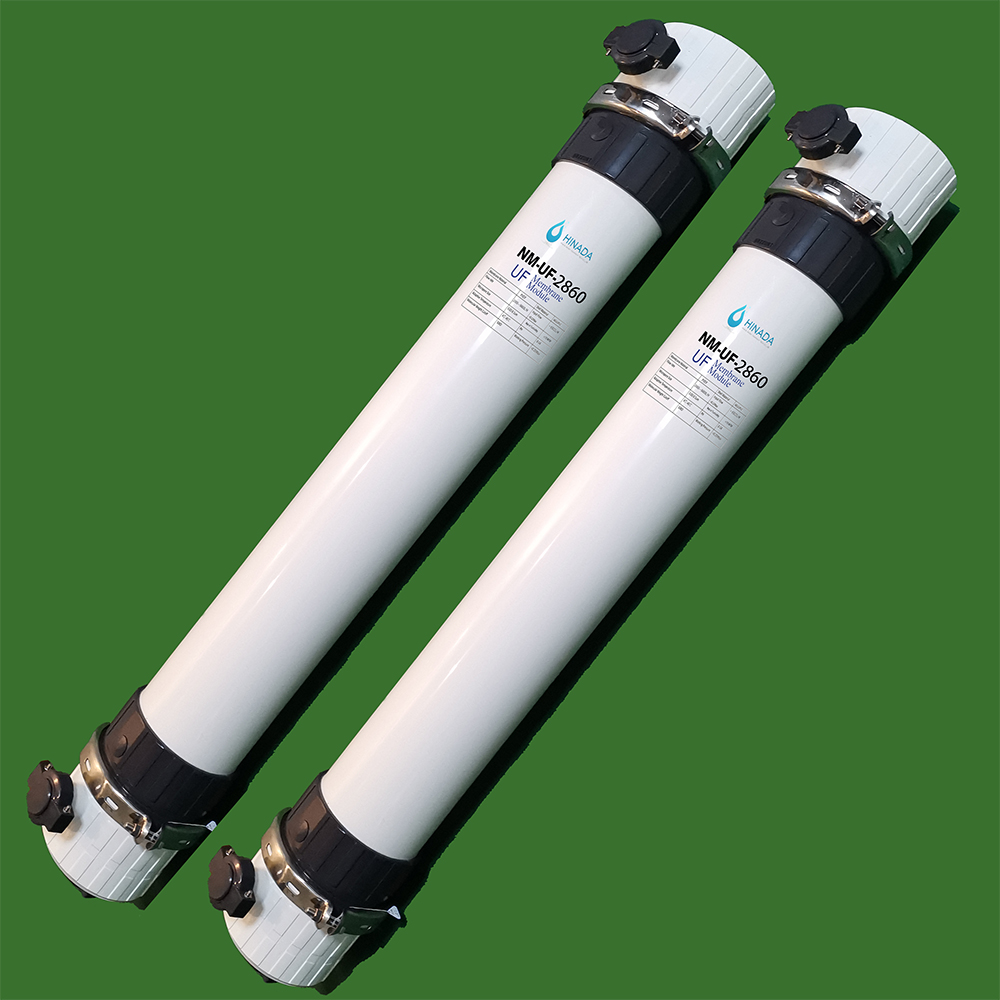

UF Membrane (NM-UF-2860)

UF-2860 Ultrafiltration Membrane(9 Inch) Model: NM-UF-2860 Specifications Fiber inner/outer diameter: 0.6 / 1.2mm Effective membrane area: 52m² Dimension: Dia: 225mm; Length: 1860mm Design Flux: 2000-5500L / h Hollow fiber material: PVDF
Read More
