Hinada is a leading manufacturer of MBR Membrane Bioreactor, we are available in providing submerged membrane element or completely MBR module with Frame Skid. The key features of these elements and recommended applications are summarized in the Table

Products Model Number		Lab Test MBR	NM-RMBR-1010	NM-RMBR-1520
Membrane	Nominal pore size (μm)	0.06 Micron (Average)
	Material	PVDF, PET non-woven fabric and ABS resin
Membrane area per element (m ² )		2 m ²	10 m ²	20 m ²
Recommended usage		Lab Scare test Project capacity less than 2 m ³ /d	Smaller capacity plants (<200 m ³ /d) Containerized package plants In-building wastewater reuse Marine application Municipal & industrial wastewater	Medium and large capacity plants (>200 m ³ /d) Municipal & industrial wastewater

Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements.

Our vast experience and drive for excellence can be put to use in your facility – quickly and easy.

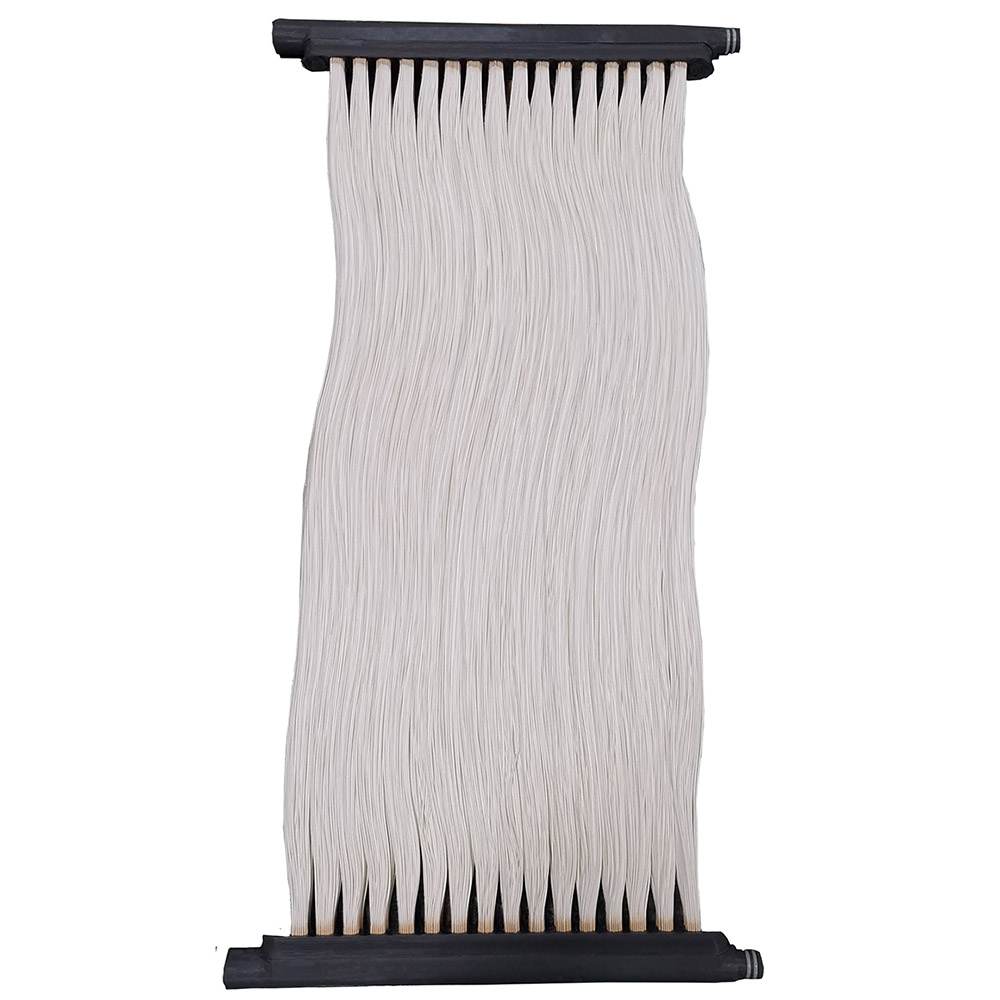

Submerged MBR Membrane NM-RMBR-1520

Submerged MBR Membrane NM-RMBR-1520 Model: NM-RMBR-1520 Size (LxWxH, mm): 571 × 45 ×1535 Membrane area (m2): 20 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 200-500 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF Description: Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment
Read More

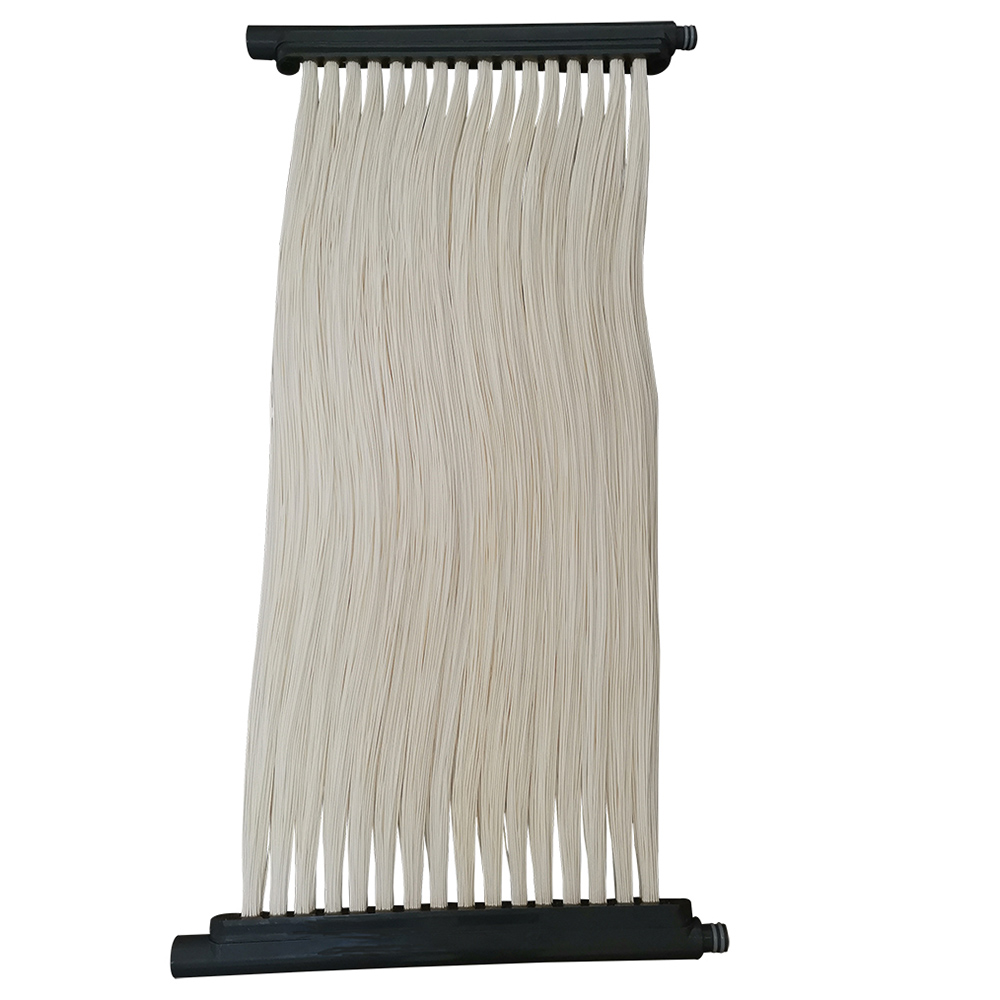

Membrane Bioreactor NM-RMBR-1010

Membrane Bioreactor Model: NM-RMBR-1010 Size (LxWxH, mm): 571 × 45 ×1100 Membrane area (m2): 10 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 150-200 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF Description: Our membrane bioreactor (MBR) is very high quality and reasonable price, which is combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment
Read More

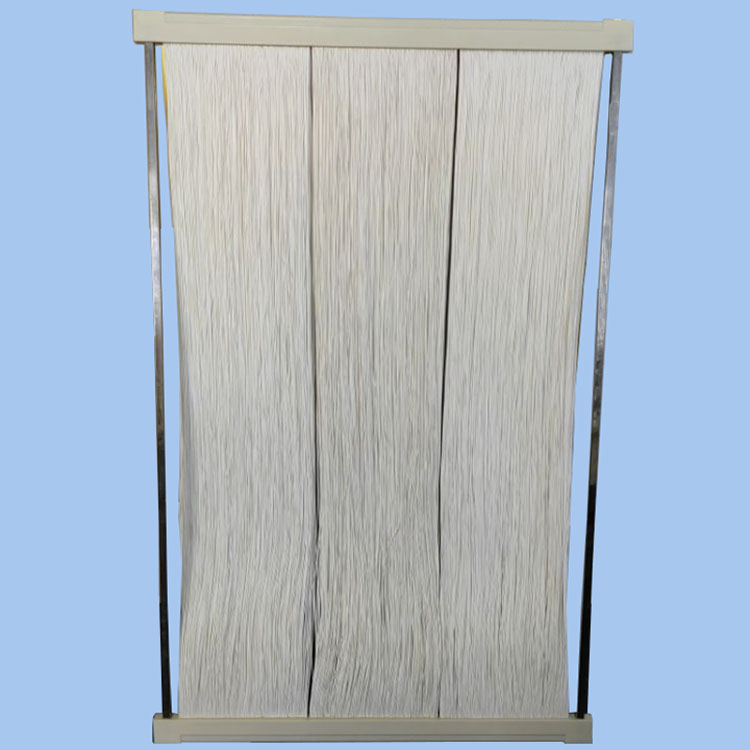

Submerged MBR Membrane NM-RMBR-1530

Submerged MBR Membrane NM-RMBR-1530 Model: NM-RMBR-1530 Size (LxWxH, mm): 1250 × 30 ×2000 Membrane area (m2): 30 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 300-750 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF Description: Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment
Read More

MBR Membrane Bioreactor

Hinada is a leading manufacturer of MBR Membrane Bioreactor, we are available in providing submerged membrane element or completely MBR module with Frame Skid. The key features of these elements and recommended applications are summarized in the Table
