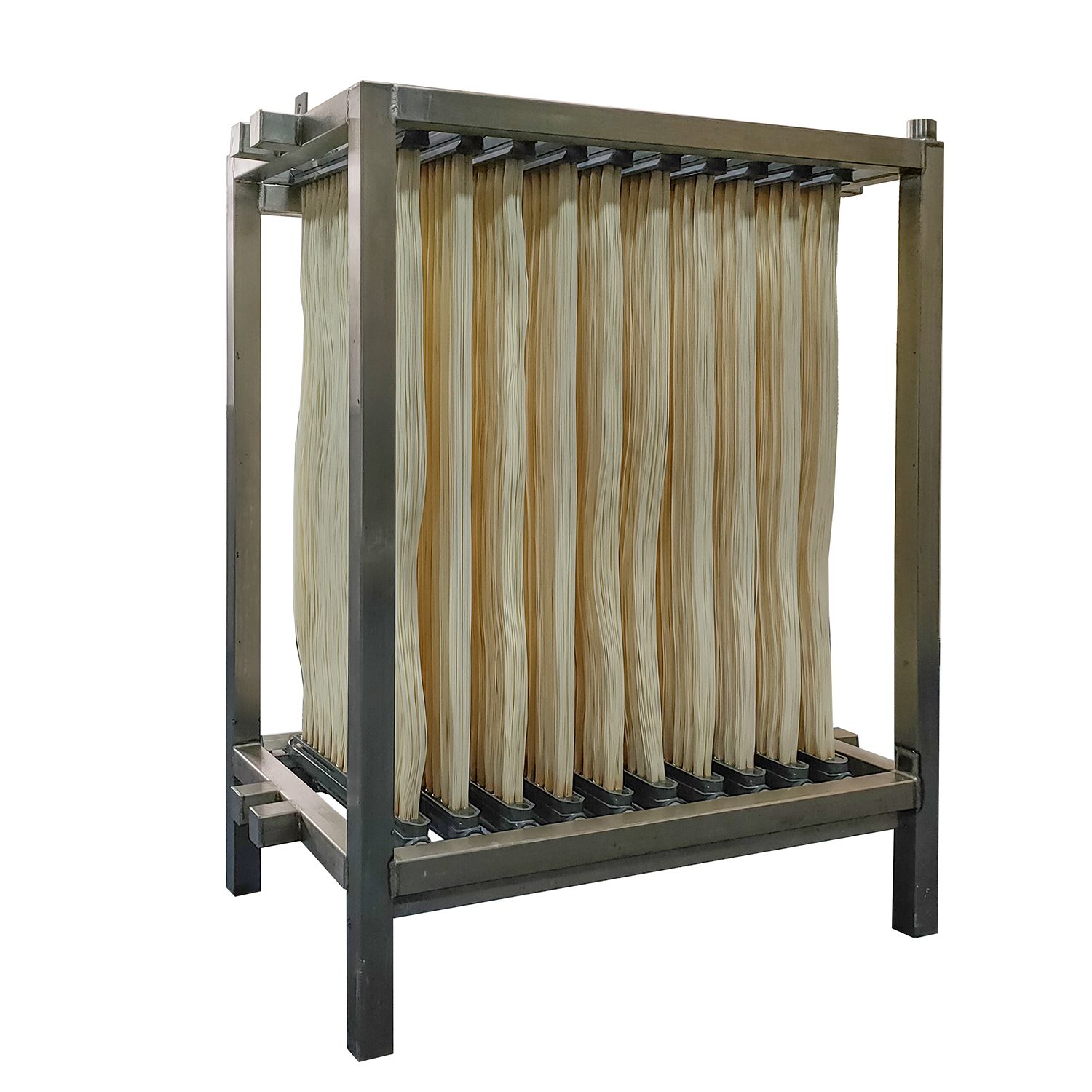

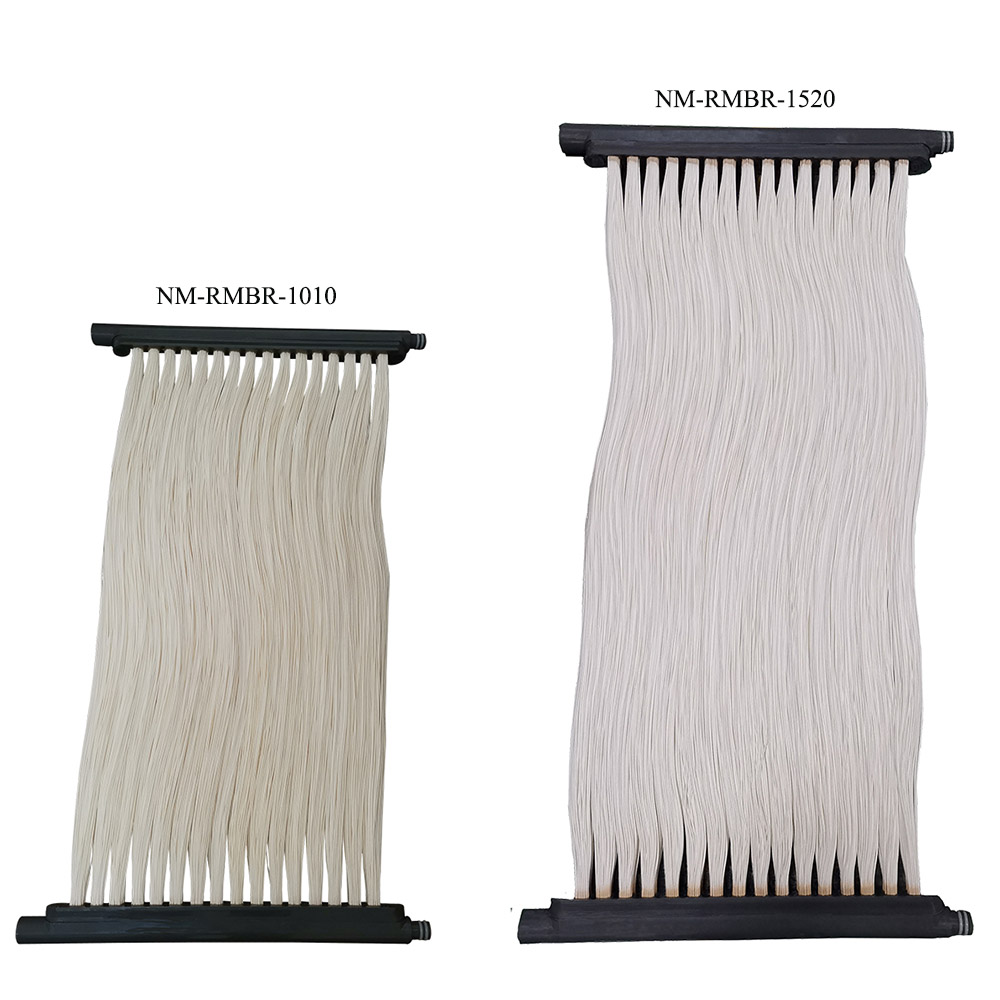

Membrane Bioreactor NM-RMBR-1010

Membrane Bioreactor NM-RMBR-1010

Membrane Bioreactor

Model: NM-RMBR-1010
Size (LxWxH, mm): 571 × 45 ×1100
Membrane area (m2): 10
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 150-200
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF



Description:
Our membrane bioreactor (MBR) is very high quality and reasonable price, which is combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment

Inquire Now
    Membrane Bioreactor NM-RMBR-1010

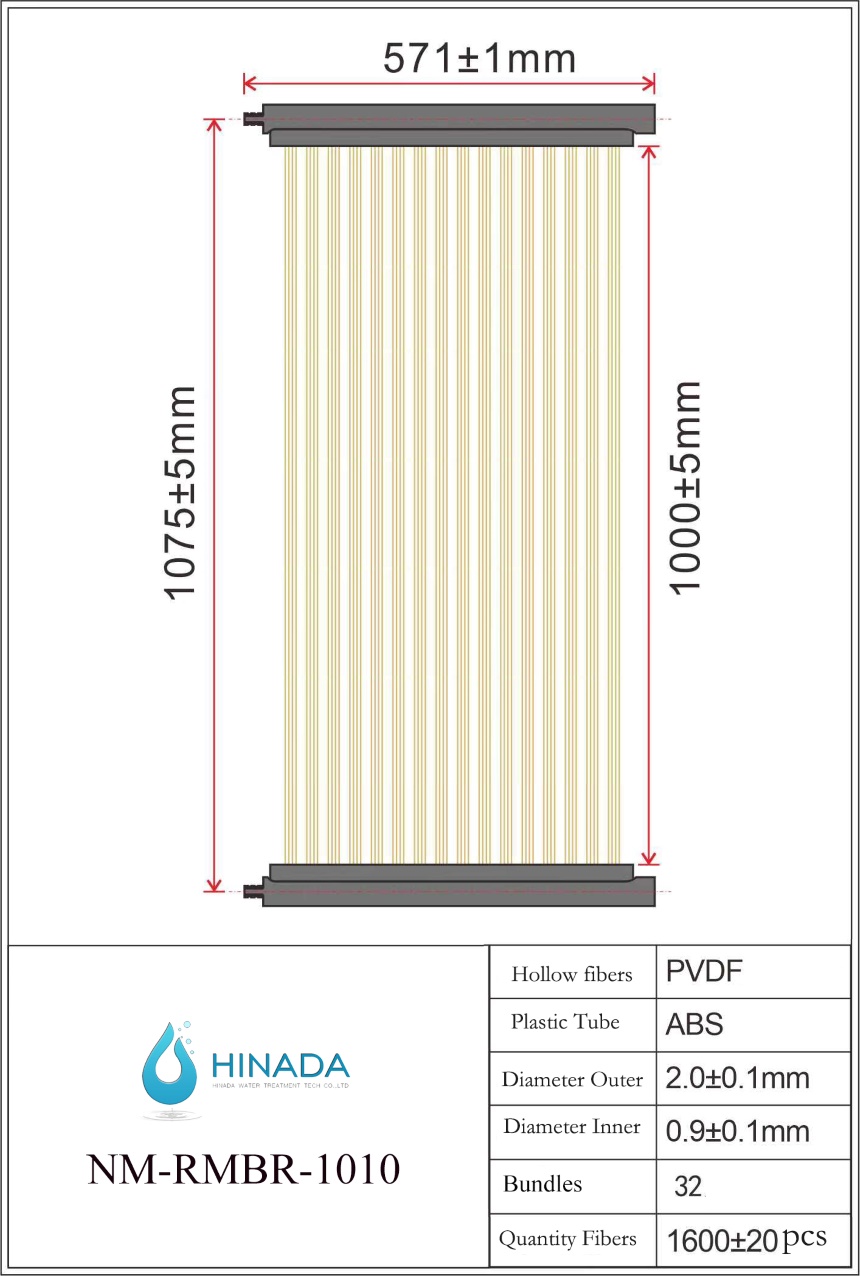

    Membrane Bioreactor NM-RMBR-1010 Specification:

    Type NM-RMBR-1010
    Membrane Nominal pore size (μm) 0.06 Micron (Average)
    Material PVDF, PET non-woven fabric and ABS resin
    Membrane area per element (m 2 ) 10 m 2

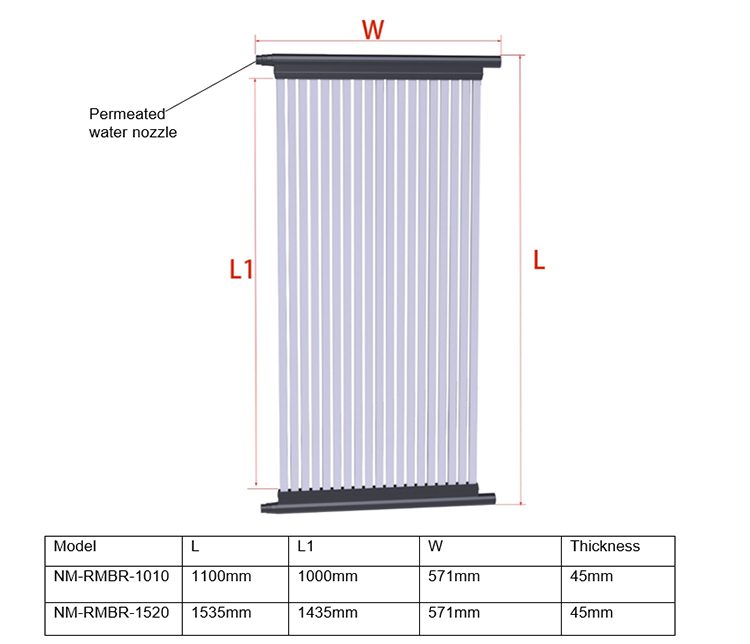

    Membrane Element dimension Height: 1100mm
    Wide: 571mm
    Thickness: 45mm
    Filtration Method Suction /Outside-in
    Hollow fibers I /O diameter 1.0 /2.0mm
    Design flow rate 100—300 Liters/ Hour

    (Sewage design 150 L/H)
    Air diffuser Fine bubble, tube type,

    EPDM rubber
    Recommended usage Smaller capacity plants (<200 m 3 /d)

    Containerized package plants

    In-building wastewater reuse Marine application

    Municipal & industrial wastewater

    Futher technical data or information please do contact with us!



    Application

    Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment.

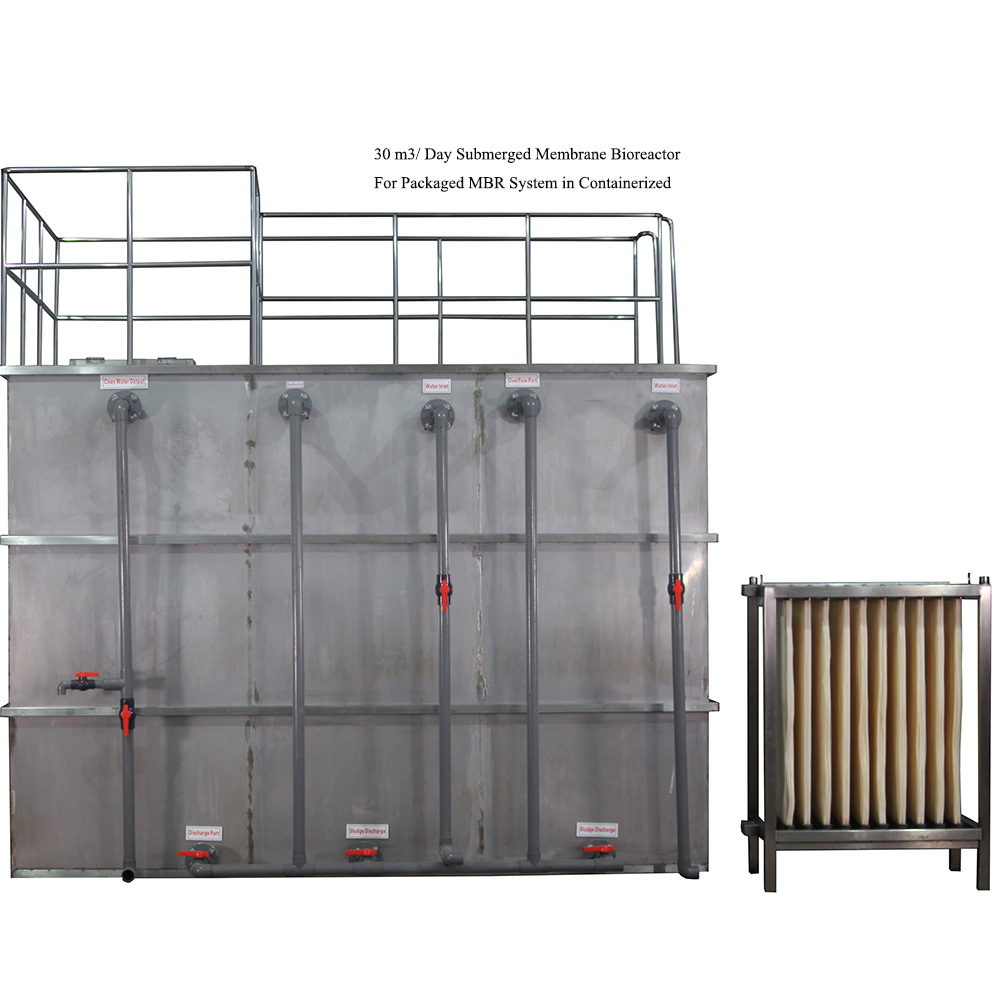

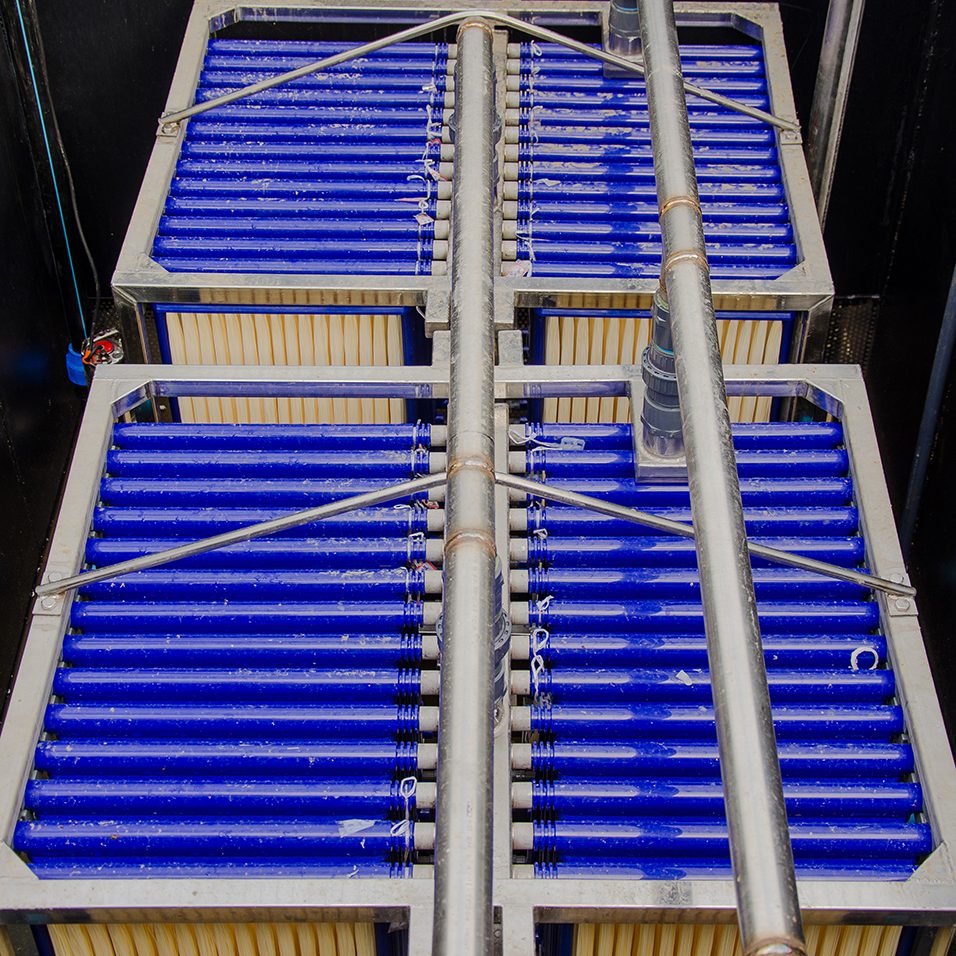

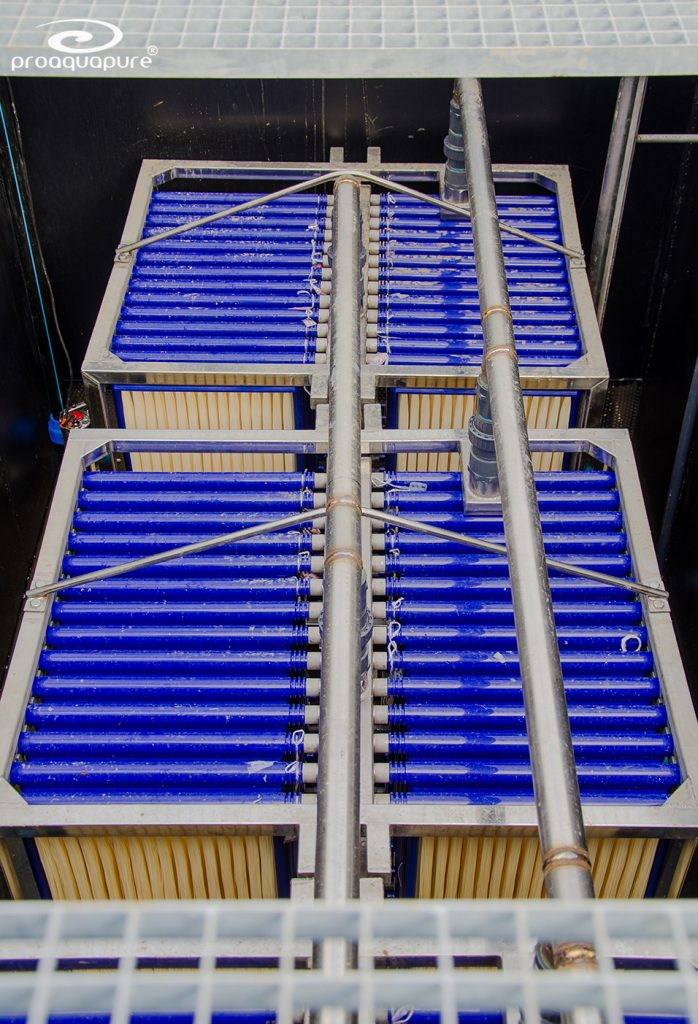

    PVDF Membrane Bioreactor NM-RMBR-1010 is widely used for industrial and sewage waste water treatment, it’s special better for packaged wastewater treatment plant in container.





    Benifits

    * System operates at a low pressure
    * Removes bacteria and viruses
    * Keeps essential minerals in water
    * Installs quickly and easily
    * Does not generate waste water



    Packaging

    Membrane Bioreactor NM-RMBR-1010 Paper carton pack, 5 pcs / carton

    One carton gross weight: 30kgs

    Dimension of Carton: 110* 60*30cm



    Our Service

    Hinada is the leading manufacturer and top brand MBR Membrane, we can offer quality products and 3 years gurantee and techincal support.
    According to client requirement design the completely wastewater project treatment solution.




    MBR Membrane Cleaning Method:



    Working setting /Relaxation

    Interval Working, 7minutes working 1-minute stop.

    With air bubbles continuing.

    Air Vibration Cleaning Method

    Aeration Vibration

    0.15—0.2 Nm3 /m². Hour

    Backwash by clean water

    Frequency

    5 minutes/ Every 120—300 minutes

    Time

    5minutes

    Cleaning flow rate

    Doubles of output flow rate/ Back flushing around 30 LMH

    Clean water

    Output water or clean water with cartridge filter

    Backwash by Chemical [ Maintenance cleans]

    CEB Cleaning

    Frequency

    l  1 time per week for Sodium hypochlorite (NaOCL)

    l  1 time every two weeks for Citric acid

    Time

    0.5 hour (Dosing time 8 minutes, soaking 20 minutes, clean water flush 2 minutes)

    Chemicals

    l  200～500ppm of Sodium hypochlorite ；

    l  0.5% of Citric acid < C6H8O7>

    Chemical Cleaning Method

    [ Recovery cleans, offline cleans]

    Frequency

    Every 3---6 months /time, or flow rate low than 80% of designed flow flux.

    Time

    1 day

    Clean water with chemical

    Output water or city water with cartridge filter filtration, add chemicals.

    Cleaning Method

    Immerse the MBR Modular with Vibrating in the MBR Tank or chemical clean water tank.

    Chemical

    l   Sodium hypochlorite ： 2000ppm

    l   Acid：1％Citric acid < C6H8O7>（pH between 2.5-3）

    Steps

    1.     Pump the activated sludge to the aerobic tank, and discharge all the dead sludge.

    2.      Disassembly the MBR Modules from Frame skid if the Membrane completely blocked or have too much sludge between hollow fibers.

    3.     Use the Spray gun (the one for car wash or fire-fighting workable) flush on and between surface of hollow fibers.

    4.     Fix the MBR membrane to the Frame skid.

    5.     Add the Clean water with Chemical(NaOCl with 2000mg/L), the PH Around 11 (add some caustic soda adjust the PH)

    6.      The MBR Modular completely immersed in the liquid, and with Aeration 6 hours and discharge the wastewater.

    7.     Add the Clean water with Chemical 1％Citric acid < C6H8O7>, the PH Around 2; The MBR Modular completely immersed in the liquid, and with Aeration 6 hours

    8.     Add clean water flush the MBR modules. Done
