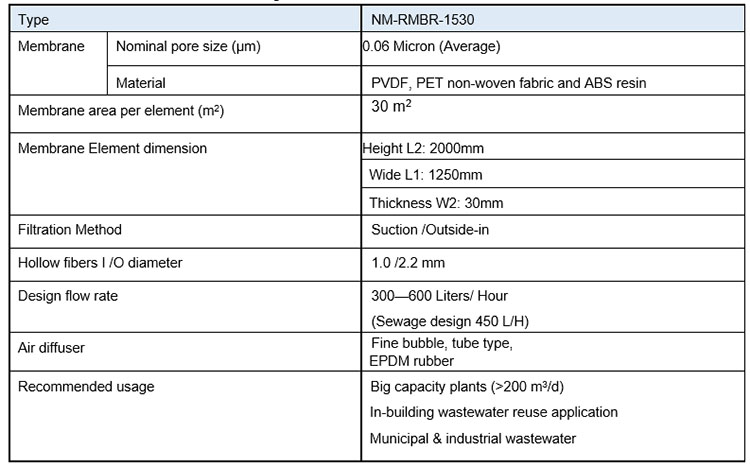

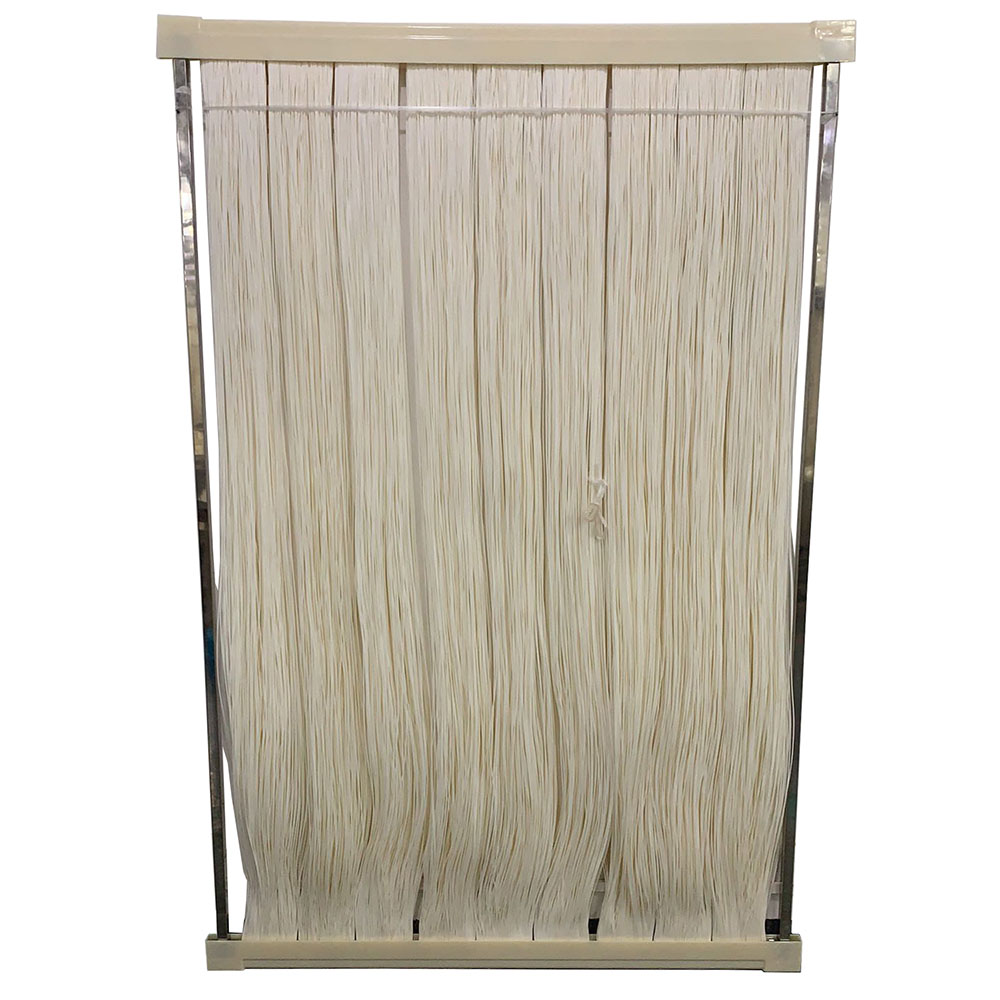

NM-RMBR-1530 Membrane Element Specification
|
Type
|
NM-RMBR-1530
|
|
Membrane
|

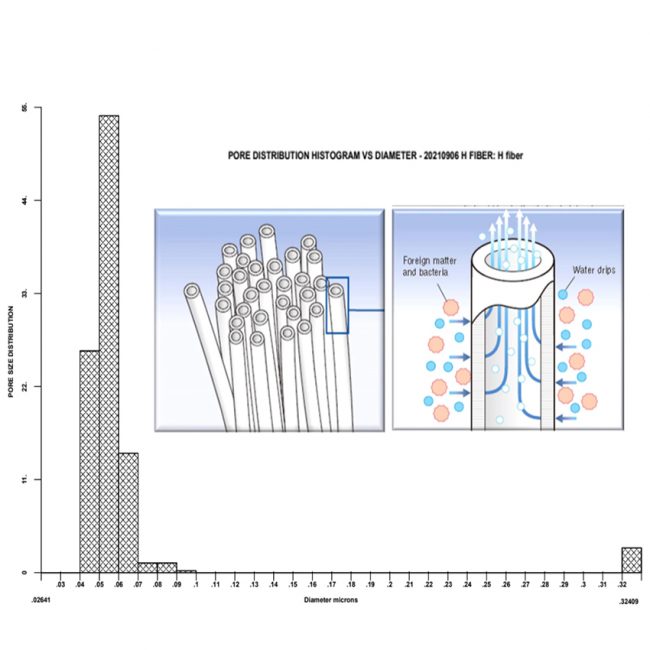

Nominal pore size (μm)
|
0.06 Micron (Average)
|
|
Material
|
PVDF, PET non-woven fabric and ABS resin
|
|
Membrane area per element (m2)
|
30 m2
|
|

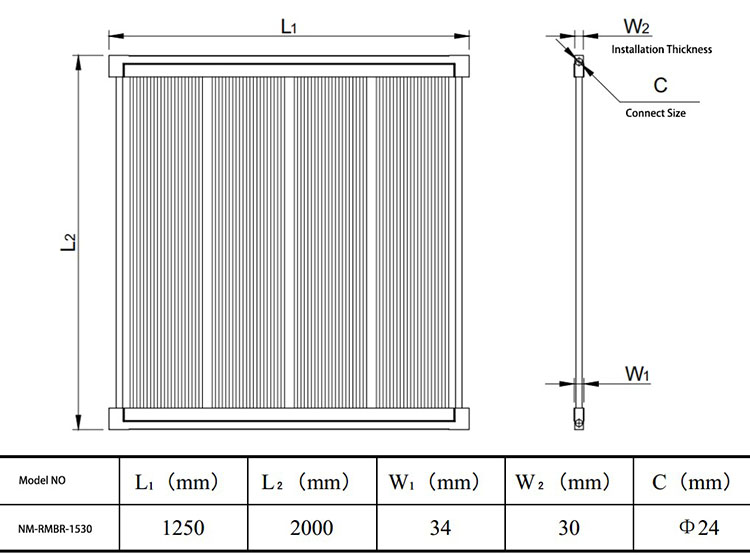

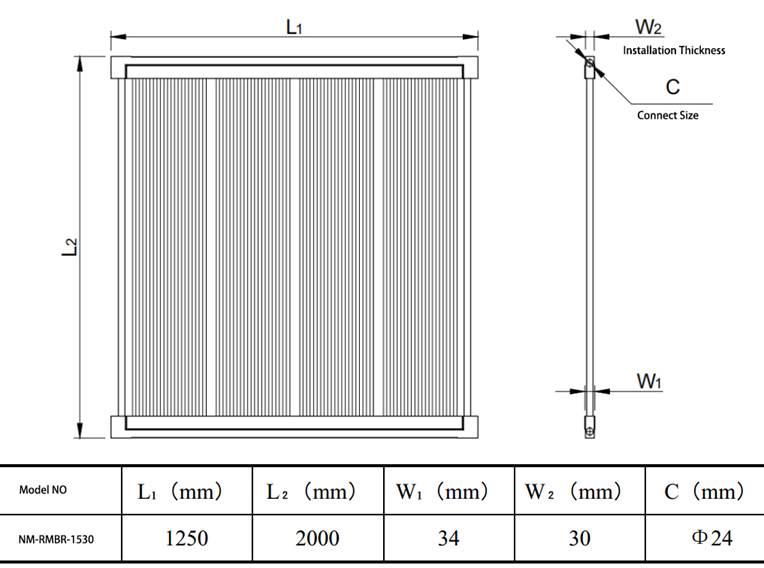

Membrane Element dimension
|
Height L2: 2000mm
|
|
Wide L1: 1250mm
|
|
Thickness W2: 30mm
|
|
Filtration Method
|
Suction /Outside-in
|
|
Hollow fibers I /O diameter
|
1.0 /2.2 mm
|
|
Design flow rate
|
300—600 Liters/ Hour
(Sewage design 450 L/H)
|
|
Air diffuser
|
Fine bubble, tube type,
EPDM rubber
|
|
Recommended usage
|
Big capacity plants (>200 m3/d)
In-building wastewater reuse application
Municipal & industrial wastewater
|
Application

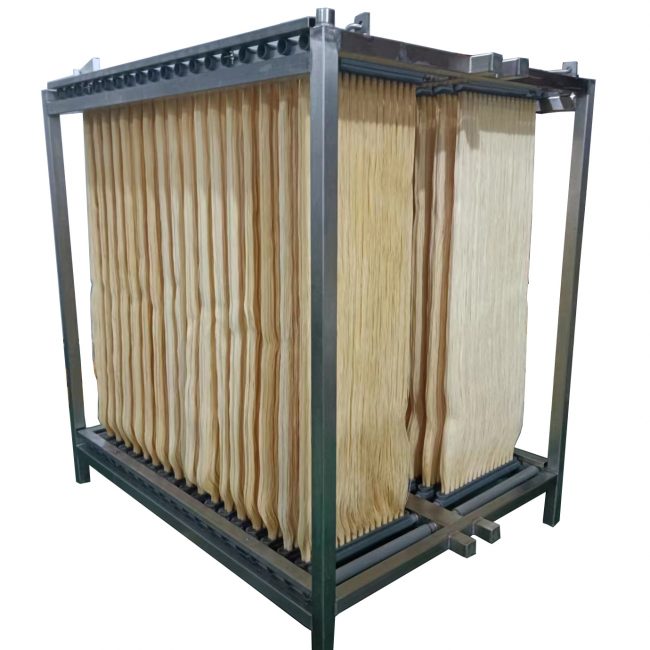

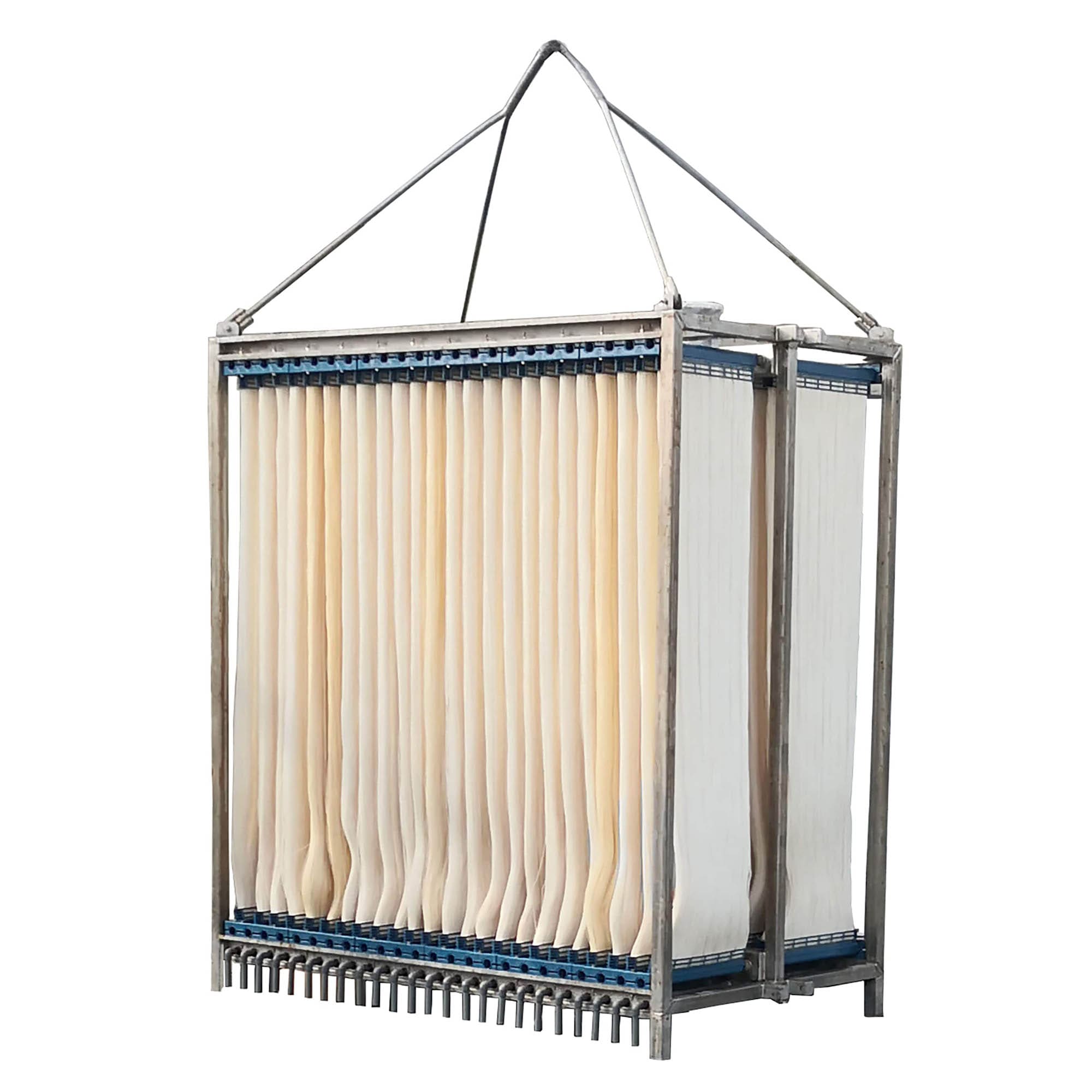

MBR NM-MBR-1530 is widely used for industrial and sewage wastewater treatment, it’s ideal for capacity above 300m3/day.
Reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration.

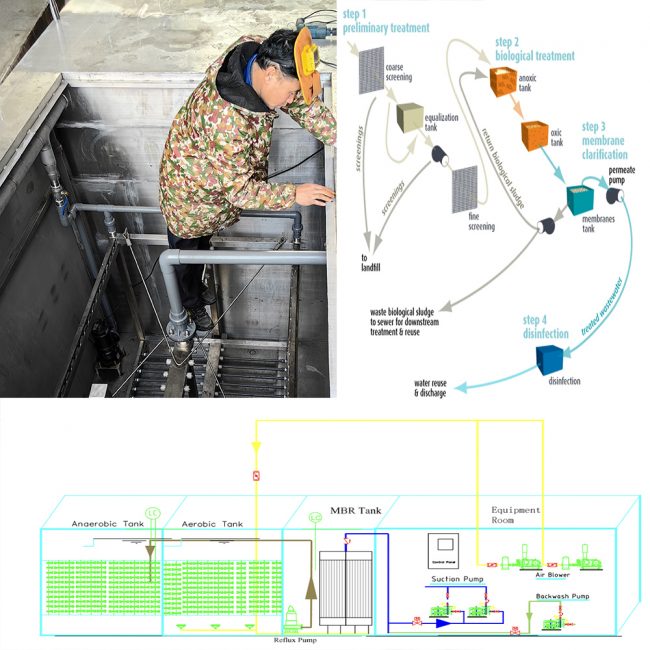

The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation, and reduced downstream disinfection requirements.
The advantages of MBR in wastewater plant:
- Higher Biomass Concentration: The membranes allow operation with much higher concentrations of microorganisms (6-8 g/L or MLSS 6000---8000mg/L), leading to better effluent quality and smaller footprint, it’s especially for big city that land costly.
- High flow rate, easy cleaning and operation
- High quality effluent stable, use MBR that make sure industrial wastewater meet environmental discharge standards.
- Fully automatic, easy operation and management
- Lower energy costs, reinforced hollow fibers
- Customerized MBR Modular, according to your project requirement.
The Benifits of MBR Technology:
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
Package
This MBR Element will be packaged in container or plywood case.
Our Service
1. Hinada is the leading manufacturer and top brand MBR Membrane, we can offer quality products and 3 years gurantee and techincal support.
2. We Provides a full range of services , even small sewage treatment plant and water treatment equipment, sewage treatment plant from the design proposal, producing to installation and testing, even after sale. We regard our customer as a long term business partner.

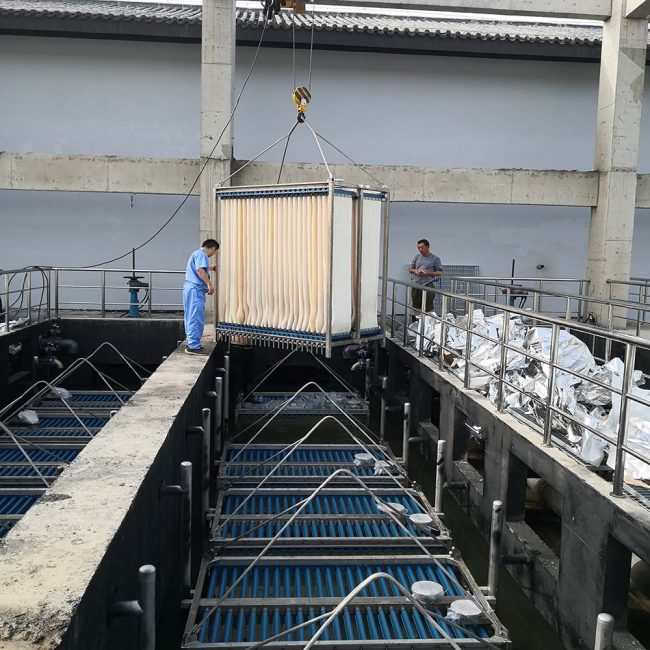

3. Equipment and project sample as your reference.

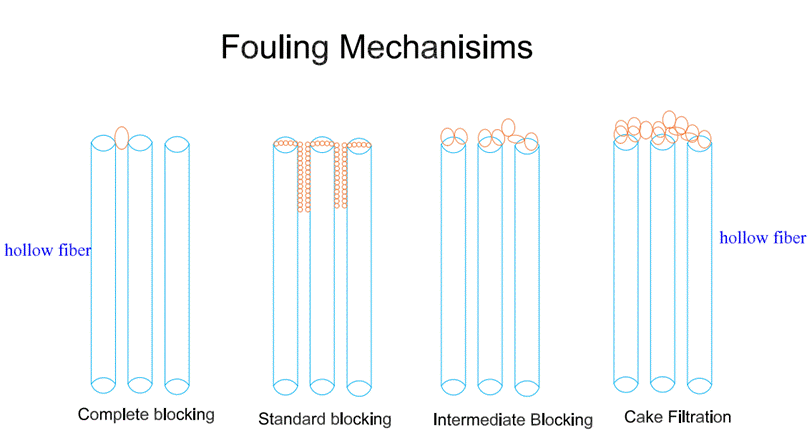

All Models of Blocking
Filtration proceeds according to number of widely recognized mechanisms, which have their origins in early filtration studies (Grace, 1956), Comprising (Fig.2.10):
l Completely blocking
l Standard blocking
l Intermediate blocking
l Cake filtration

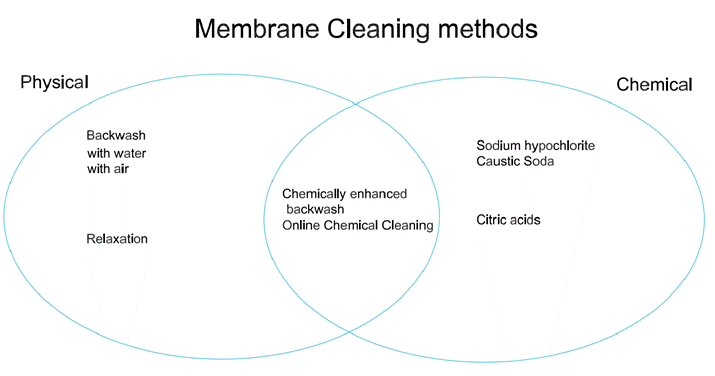

Physical and Chemical Cleaning
The main impact of the operating flux is on the period between cleaning, which may be by physical or chemical means, and usually both. In MBRs, physical cleaning is normally achieved either by backwashing (reversing the flow) and relaxation (we suggest 7-minutes working 1-minute stop).
