PVDF MBR Modular

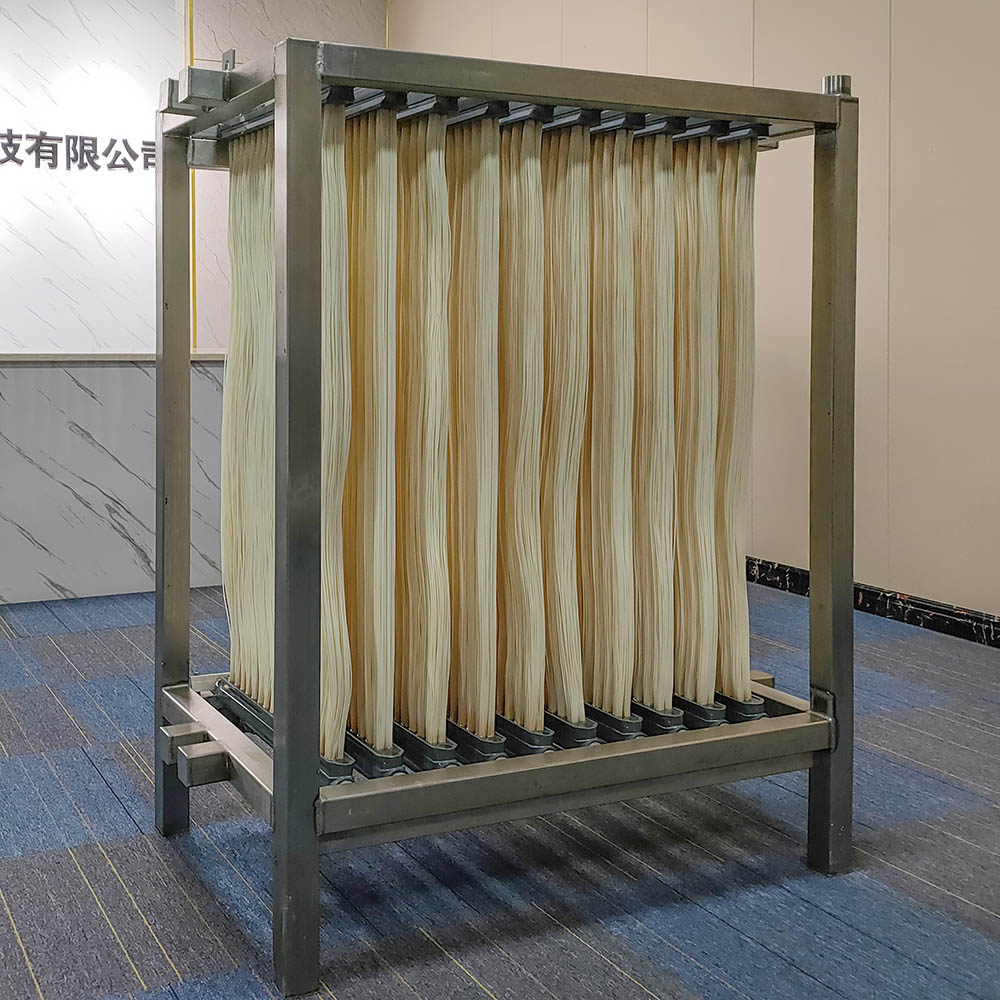

Submerged Membrane Bioreactor for Packaged MBR System in Containerized Model: NM-MBR-30KLPD Specifications Project capacity: 30 m 3 / Day Effective membrane area: 100m² Hollow fiber material: PVDF Membrane Element : 10 units MBR Modular Dimension: 965x640x1380mm

PVDF MBR Membrane Lower energy costs High quality effluent Lower footprint/space Advanced MBR technology High flow rate,easy cleaning,easy operation     MBR Modular  Including: * MBR membrane * MBR Skid * Collector Pipe and Aeration System

Customized Submerged Membrane Bioreactor for your project  Membrane Element Model: NM-RMBR-1520 specifications Size (LxWxH, mm): 571 × 45 ×1535 (the length can be customized) Membrane area (m2): 20 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 20-50 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF

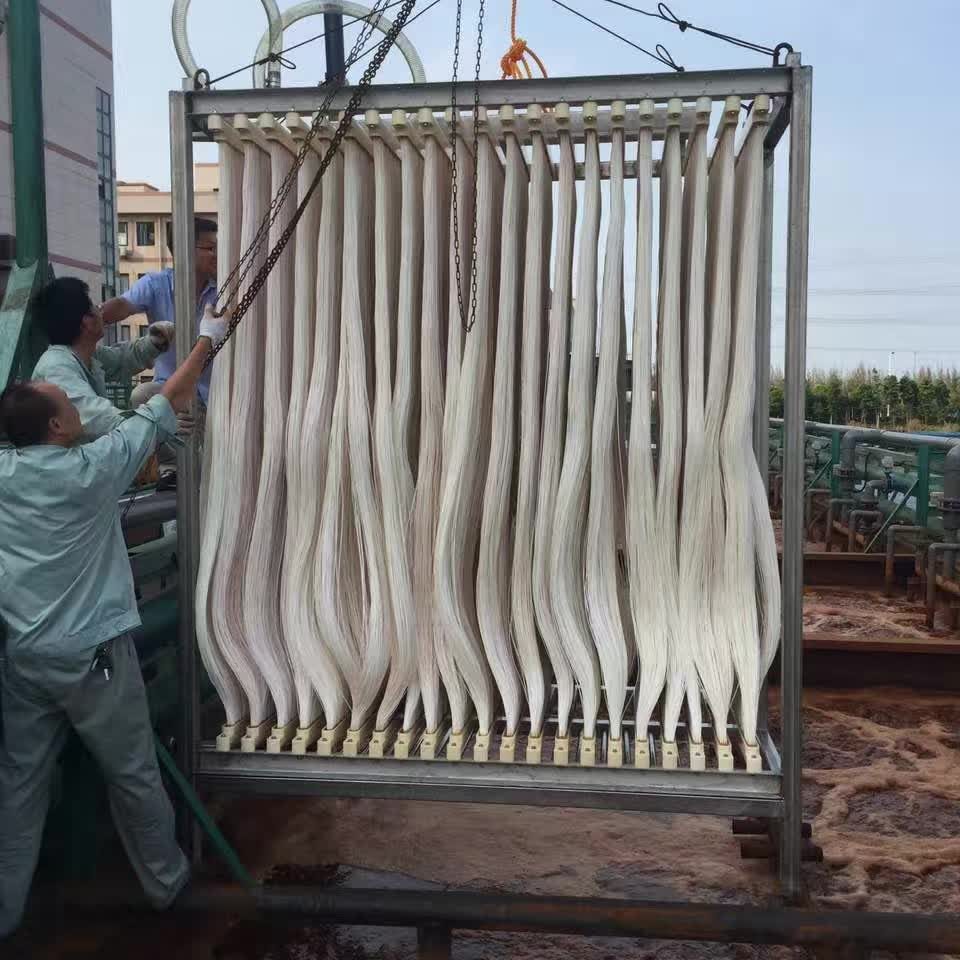

MBR Bioractor Wastewater Treatment Lower energy costs High quality effluent Lower footprint/space Advanced MBR technology High flow rate,easy cleaning,easy operation   MBR Modular  Including: * Reinforced MBR membrane * MBR skid * Collector pipe and aeration system According to project offer customized quotation!

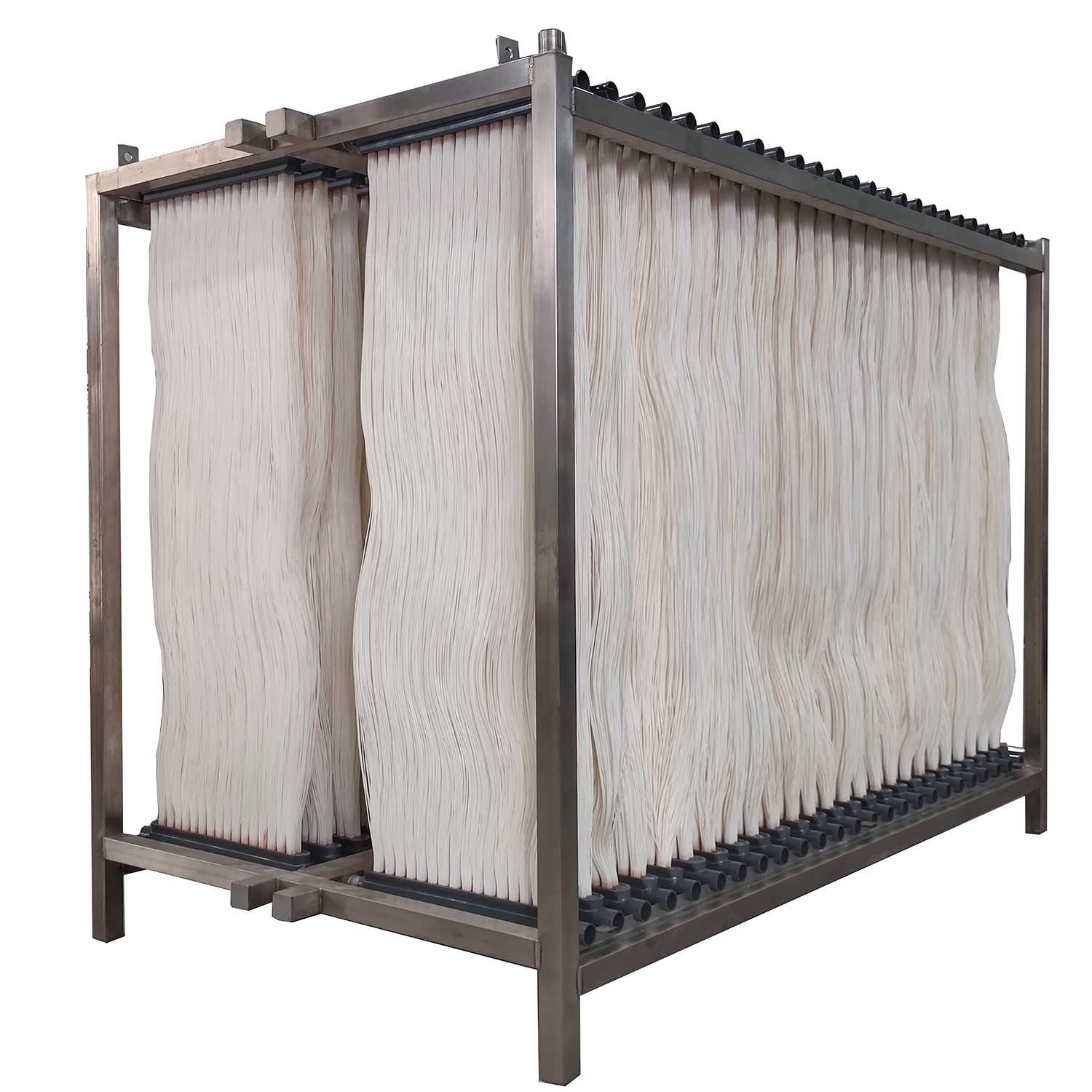

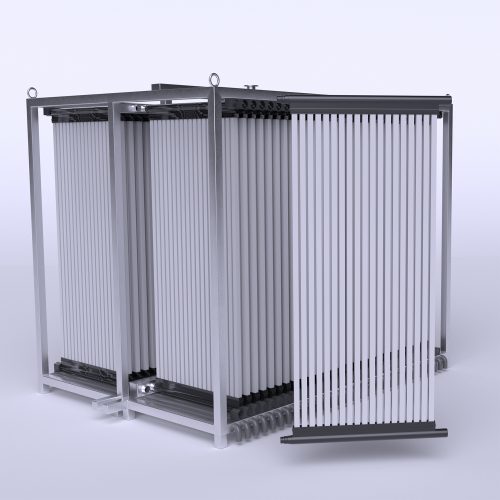

Submerged Membrane Bioreactor MBR Modular Model: NM-MBR250KLPD Specifications Project capacity: 250 m 3 / Day Effective membrane area: 960m² Hollow fiber material: PVDF Membrane Element : 48 units MBR Modular Dimension: 2155x1280x1980mm

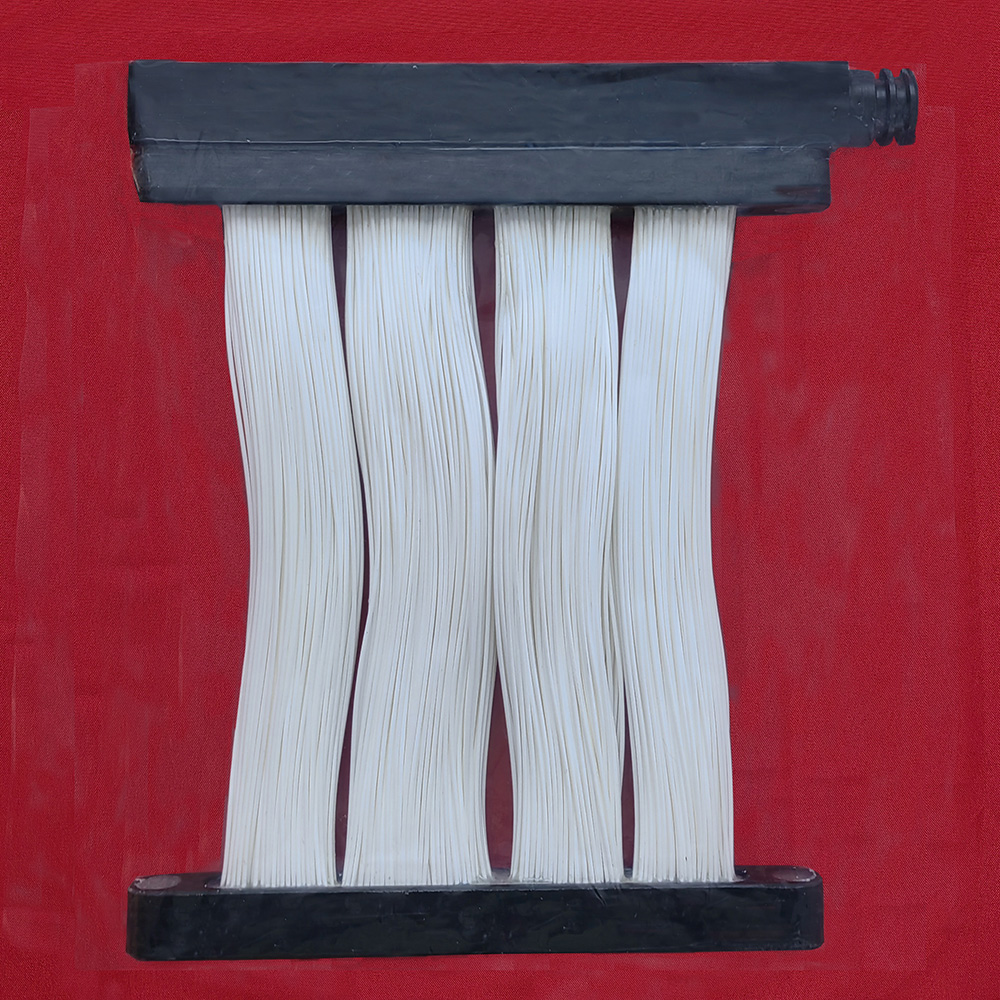

Lab Scare Test MBR Membrane (Membrane Bioreactor) Model: NM-RMBR-1002 specifications Size (LxWxH, mm): 450 × 45 ×350 (the length can be customized) Membrane area (m2): 2 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 20-50 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF Hinada can provide the completely Lab Test Wastewater Treatment System according to your designation.
