MBR Modular for Industry wastewater or Sewage Treatment， ideal for small project with capacity around 30m 3 / Day, Packaged in containerized MBR System for wastewater treatment, the MBR Tank height around 2m, the MBR Membrane is Interval working, 7 minutes working 1-minute stop.
Capacity Design as :30 m 3 / Day , 24 hours working per day.
- MBR Working Conditions
| Item | Specification |
| Working Temperature | 5—45℃ |
| PH | 5–8 |
| Input SS | ≤ 2mm |
| Oil Grease | <5mg/L |
| Hard (CaCO3 mg/l) | Too much CaCO3 will harden the Hollow fibers. |

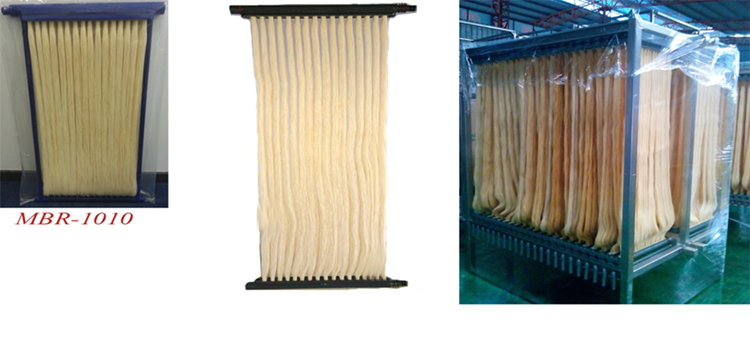

2. MBR Element
| MBR model | NM-RMBR-1010 |
| Area for each unit | 10 ㎡ |
| Total Membrane Area | 100㎡ |
| Modular Quantity | 10 sets (Each set with 100㎡ membrane area) |
| Design flow rate | 15.0 L/㎡. H |
| Each Modular flow rate | 1.5 m3/H |
| Rock dimension | 965x640x1350mm |
3.MBR Element Air Stirring Quantity as reference.
| Air Volume for each element | 3 Nm3/H |
| Volume for 1 Module | 20 Nm3/H |
| Working time | 7 minutes |
| Stop time | 1 minute |

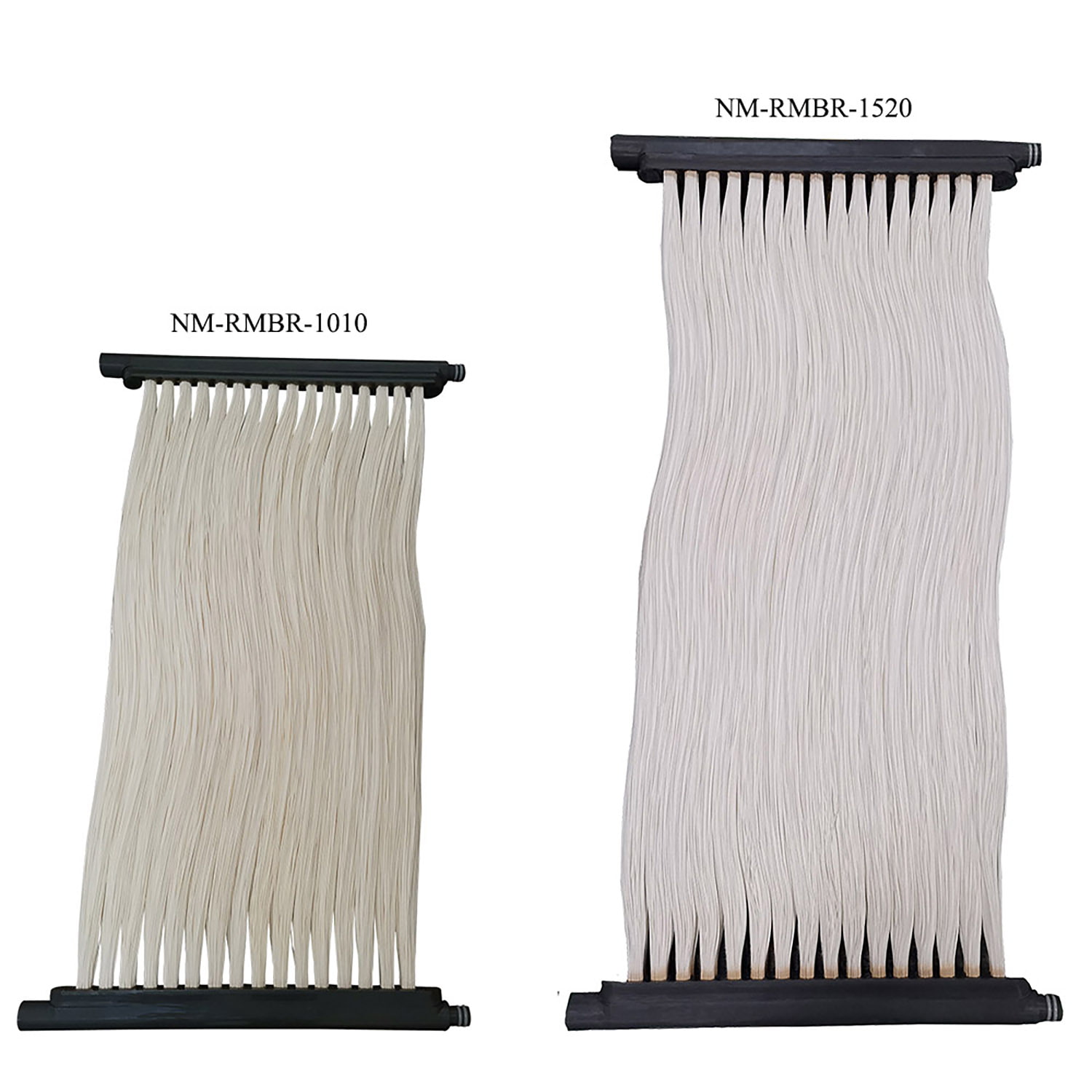

4. PVDF Hollow Fiber Specification:
| Material | PVDF hollow fiber |
| Model | NM-RMBR-1010 |
| I/O diameter | 1.0/2.2mm |
| Implosion pressure | Above 2 bar |
| Burst Pressure | Above 4 bar |
| Water Permeability | 10—25 L/m 2 . h |
| Operating Temperature | 5℃-45℃ |
| PH | 2-12 |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.2 NTU |
| Filtration Method | Suction |
| Pore Size | 0.01—0.4um (Micron) |
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5

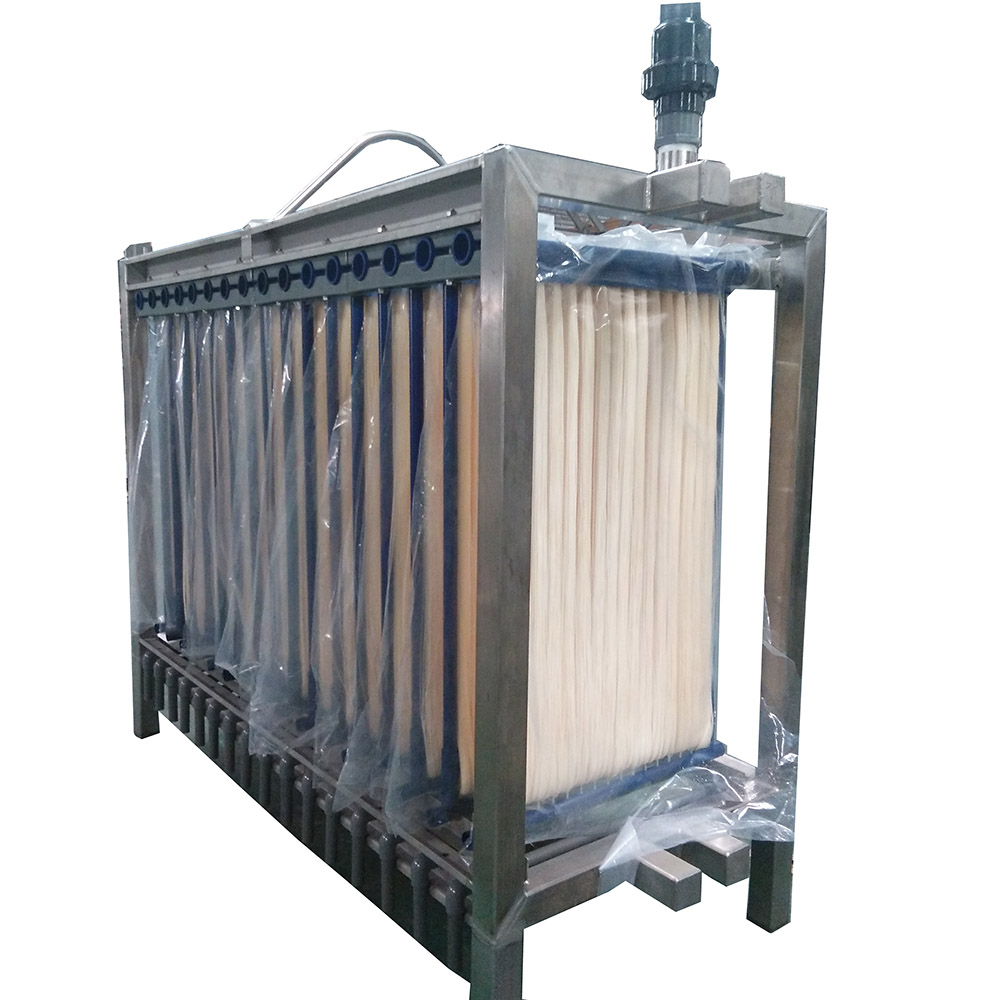

Submerged MBR Membrane in Packaged MBR System moveable containerized.
