Submerged Membrane Bioreactor Quotation for your project please contact with us
Membrane Element
Model: NM-RMBR-1520
specifications
Size (LxWxH, mm): 571 × 45 ×1535 (the length can be customized)
Membrane area (m2): 20
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 20-50
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF
| Material | Reinforce PVDF hollow fiber(PET+PVDF) |
| I/O diameter | 1.0/2.1mm |
| Operation Mode | Outside-in |
| Water Permeability | 10—25 L/m 2 . h |
| Operating Temperature | 5℃-45℃ |
| PH | 2-11 |
| Pore Size | 0.06um (Micron) |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.5 NTU |
| Filtration Method | Suction |
| Max TMP | 60 kPa |
| Backwash Flux | 30—50L/ m 2 . h |
| Max Backwash pressure | 70 kPa |

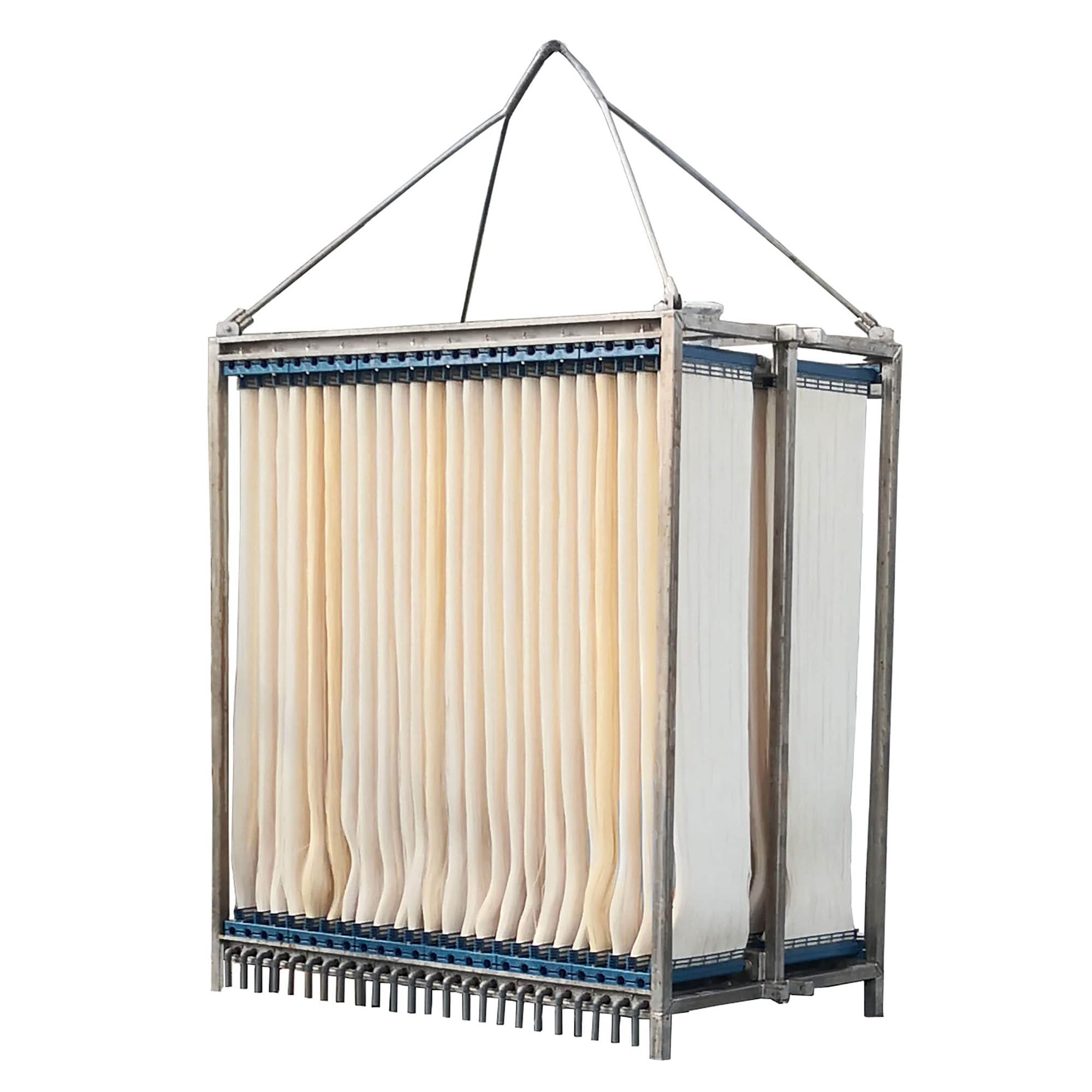

Submerged MBR Membrane (Membrane Bioreactor)
Model: NM-RMBR-1520
specifications
Size (LxWxH, mm): 571 × 45 ×1530
Membrane area (m2): 20
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 20-50
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF
Hinada can Provide high quality membrane filtration system and water treatment solution for 8 years with variety industrial application experience, based on modification of polyvinylidene fluoride (PVDF) and polyvinyl chloride (PVC ) membrane technology
Application
This Submerged Membrane Bioreactor manufacturer supply they products to industrial and sewage waste water treatment .
Benifits
* Lower energy costs
* High quality effluent and stable output water quality
* Lower footprint ( space)
* High flow rate, easy cleaning and operation.
* Less Maintenance
Submerged Membrane Bioreactor manufacturer Products Package
Plywood case or carton packed according to the project
Our Service
We are the manufacturer of MBR Membrane, we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements

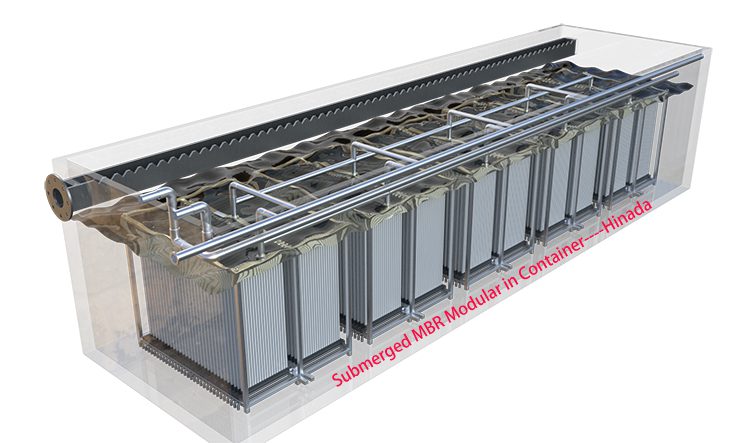

Submerged Membrane Bioreactor for Packaged MBR System in Containerized Model: NM-MBR-30KLPD Specifications Project capacity: 30 m 3 / Day Effective membrane area: 100m² Hollow fiber material: PVDF Membrane Element : 10 units MBR Modular Dimension: 965x640x1380mm
Read More
Submerged Membrane Bioreactor MBR Modular Model: NM-MBR250KLPD Specifications Project capacity: 250 m 3 / Day Effective membrane area: 960m² Hollow fiber material: PVDF Membrane Element : 48 units MBR Modular Dimension: 2155x1280x1980mm
Read More
Lab Scare Test MBR Membrane (Membrane Bioreactor) Model: NM-RMBR-1002 specifications Size (LxWxH, mm): 450 × 45 ×350 (the length can be customized) Membrane area (m2): 2 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 20-50 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF Hinada can provide the completely Lab Test Wastewater Treatment System according to your designation.
Read More
Submerged Membrane Bioreactor Quotation for your project please contact with us Membrane Element Model: NM-RMBR-1520 specifications Size (LxWxH, mm): 571 × 45 ×1535 (the length can be customized) Membrane area (m2): 20 Hollow fibers inside and outside diameter (mm): 1.0 / 2.2 Design Flux (L / h): 20-50 Working pressure (KPa): 10-50 Operating temperature (° C): 5-45 Work PH: 1-10 Hollow fibers: reinforced PVDF
Read More

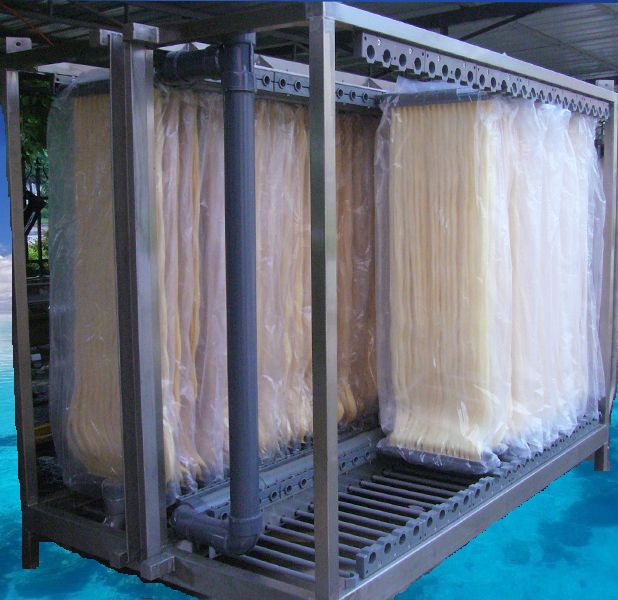

MBR Bioractor Wastewater Treatment Lower energy costs High quality effluent Lower footprint/space Advanced MBR technology High flow rate,easy cleaning,easy operation MBR Modular Including: * Reinforced MBR membrane * MBR skid * Collector pipe and aeration system
Read More
PVDF MBR Membrane Lower energy costs High quality effluent Lower footprint/space Advanced MBR technology High flow rate,easy cleaning,easy operation MBR Modular Including: * MBR membrane * MBR Skid * Collector Pipe and Aeration System
