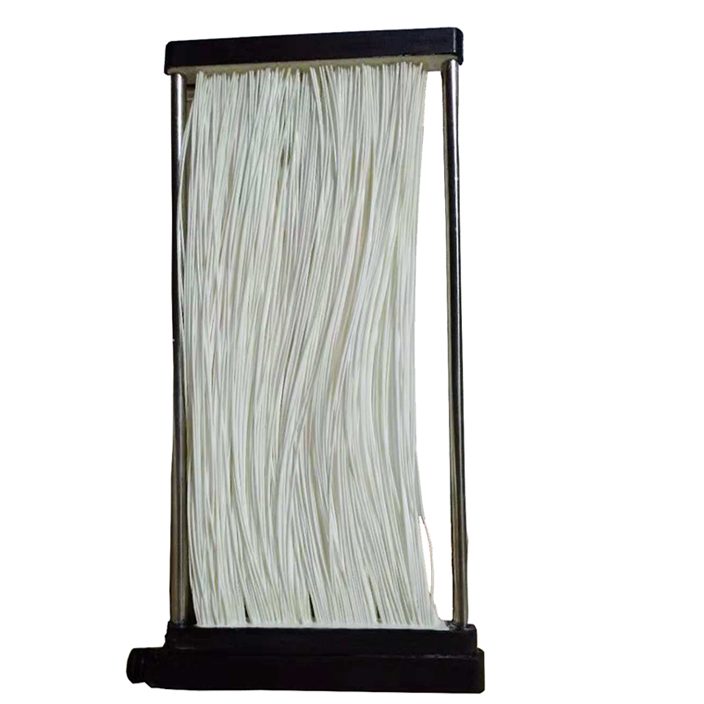

Lab Scare Test MBR Membrane (Membrane Bioreactor)
Model: NM-RMBR-1002
specifications
Size (LxWxH, mm): 450 × 45 ×350 (the length can be customized)
Membrane area (m2): 2
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 20-50
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF
Hinada can provide the completely Lab Test Wastewater Treatment System according to your designation.
| Material | Reinforce PVDF hollow fiber(PET+PVDF) |
| I/O diameter | 1.0/2.2mm |
| Operation Mode | Outside-in |
| Water Permeability | 10—25 L/m 2 . h |
| Operating Temperature | 5℃-45℃ |
| PH | 2-11 |
| Pore Size | 0.06um (Micron) |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.5 NTU |
| Filtration Method | Suction |
| Max TMP | 60 kPa |
| Backwash Flux | 30—50L/ m 2 . h |
| Max Backwash pressure | 70 kPa |
Hinada can aslo provide high quality lab test wastewater treatment system and solution for 8 years with variety industrial application experience, based on modification of polyvinylidene fluoride (PVDF) and polyvinyl chloride (PVC ) membrane technology
Application
This Lab-Scare Test MBR Membrane is widely used for industrial and sewage waste water treatment Test or Wastewater Study purpose.

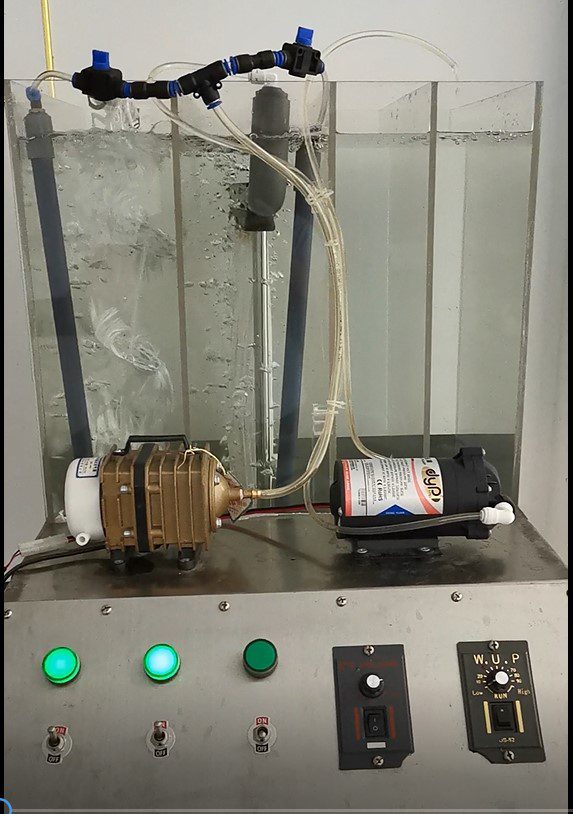

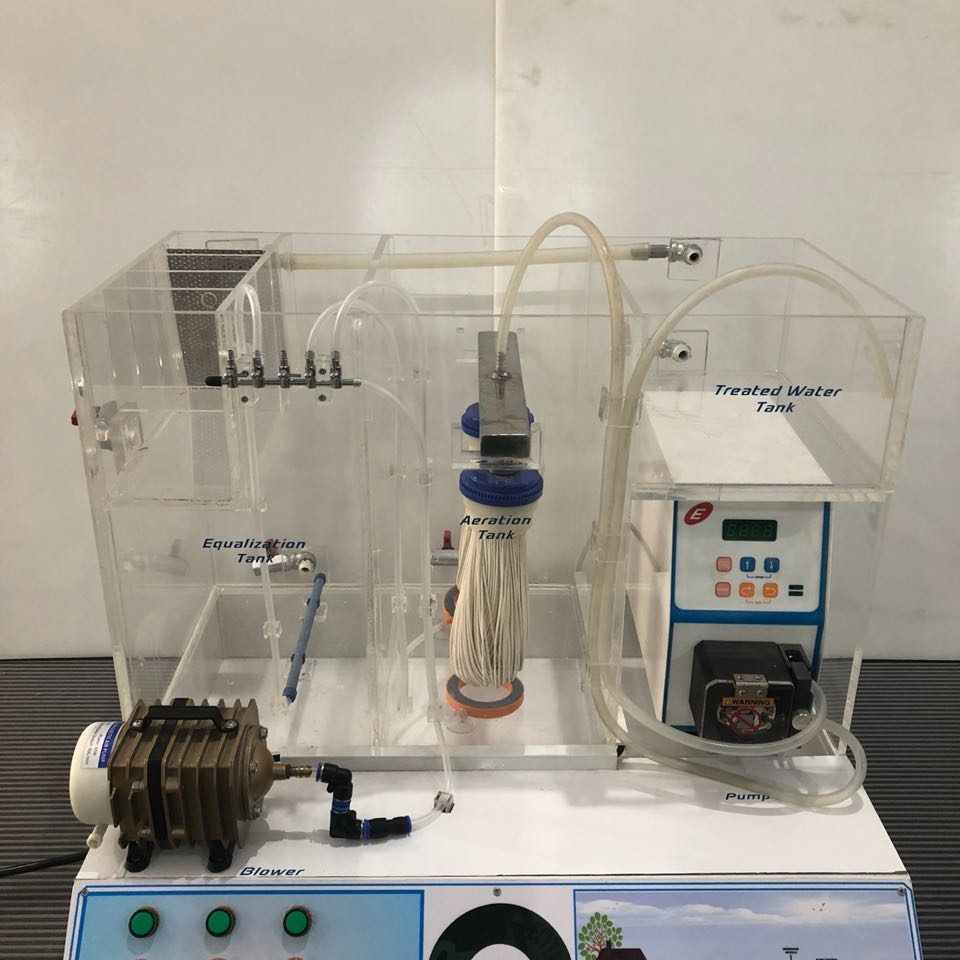

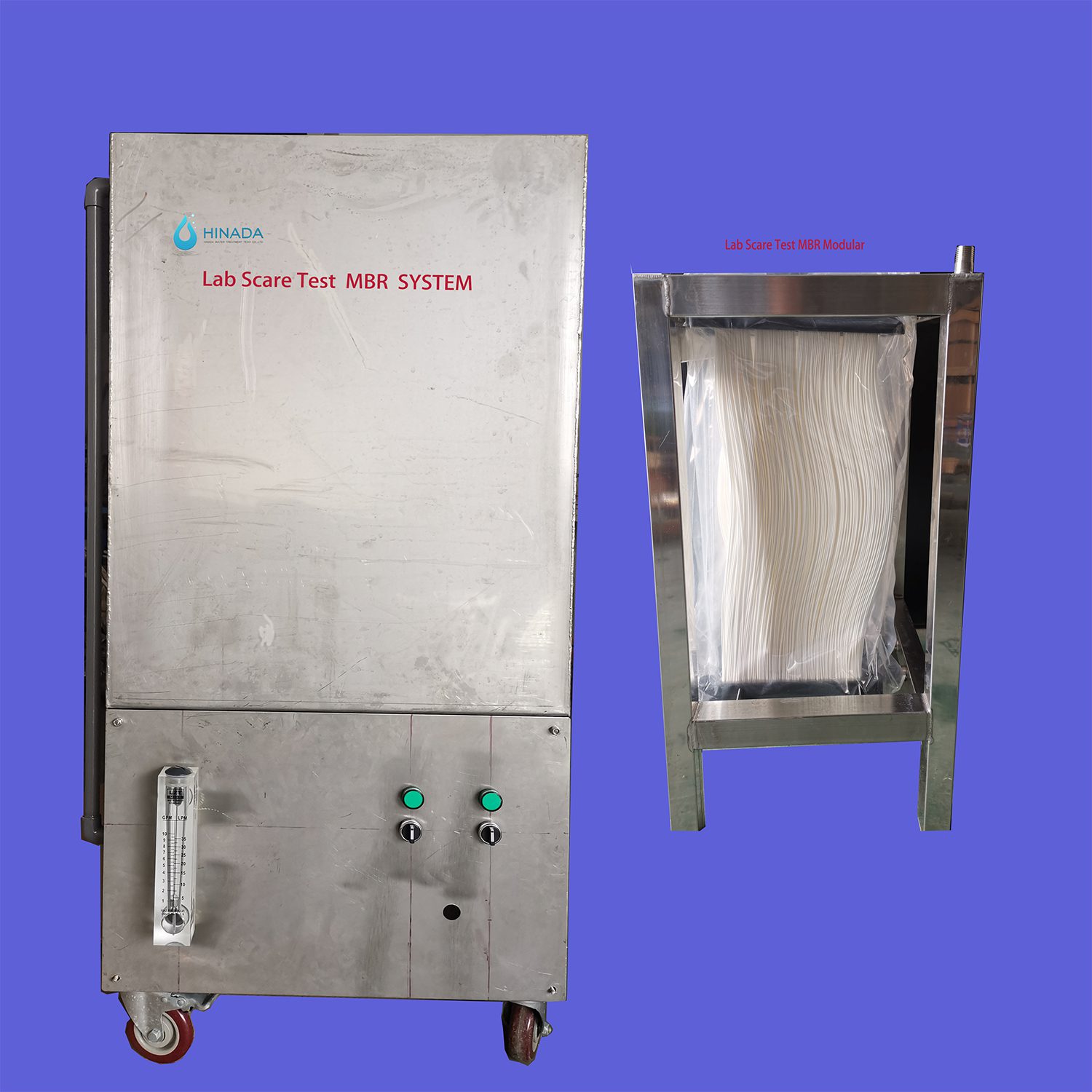

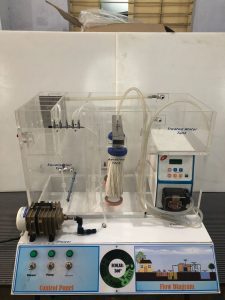

We also can offer the completely pilot Test MBR Equipment.
Benifits
* Lower energy costs
* High quality effluent and stable output water quality
* Lower footprint ( space)
* High flow rate, easy cleaning and operation.
* Less Maintenance
Lab-Scare Test MBR Membrane Packaging
Paper carton packed, gross weight around: 4kgs.
Dimension: 45* 32* 6cm
