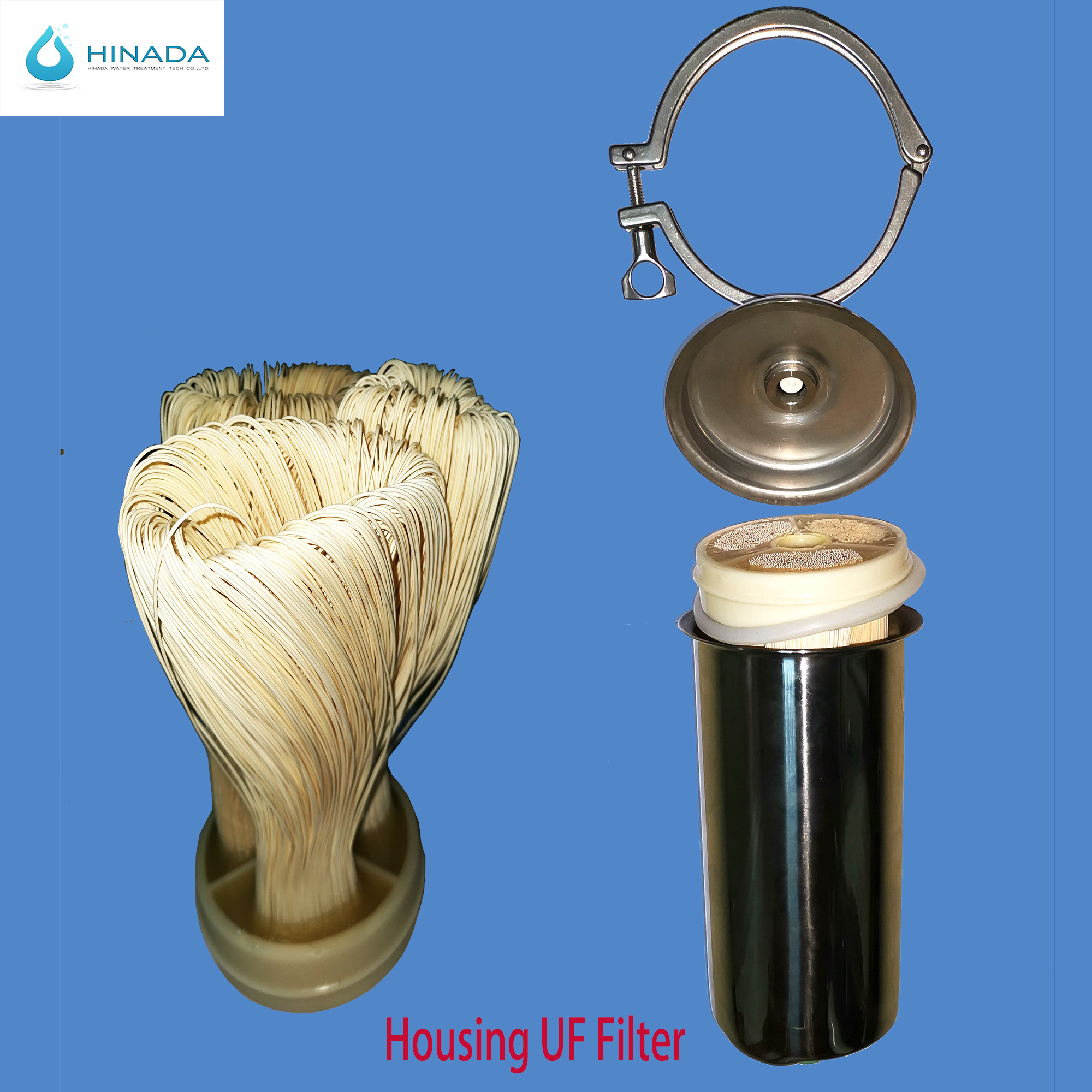

Household Water UF Filter

UF-2860 Ultrafiltration Membrane(9 Inch) Model: NM-UF-2860 Specifications Fiber inner/outer diameter: 0.6 / 1.2mm Effective membrane area: 52m² Dimension: Dia: 225mm; Length: 1860mm Design Flux: 2000-5500L / h Hollow fiber material: PVDF

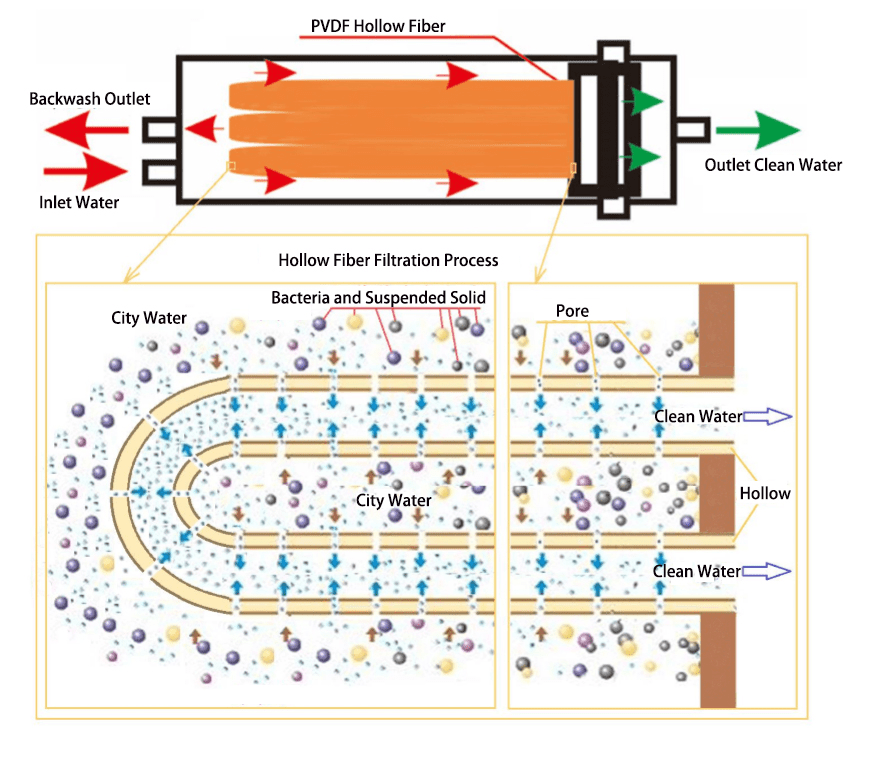

Model: NM-UF-200 NM-UF-200 Permeate Water Quality: Suspended Matter ＞2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5   Descriptions: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron.  Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.

Ultrafiltration Membrane (NM-UF-250 ) Application : Ideas for project with capacity above 30 m3/hour of river water treatment /city water Permeate Water Quality: Suspended Matter ＞2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Description: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron.  Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.

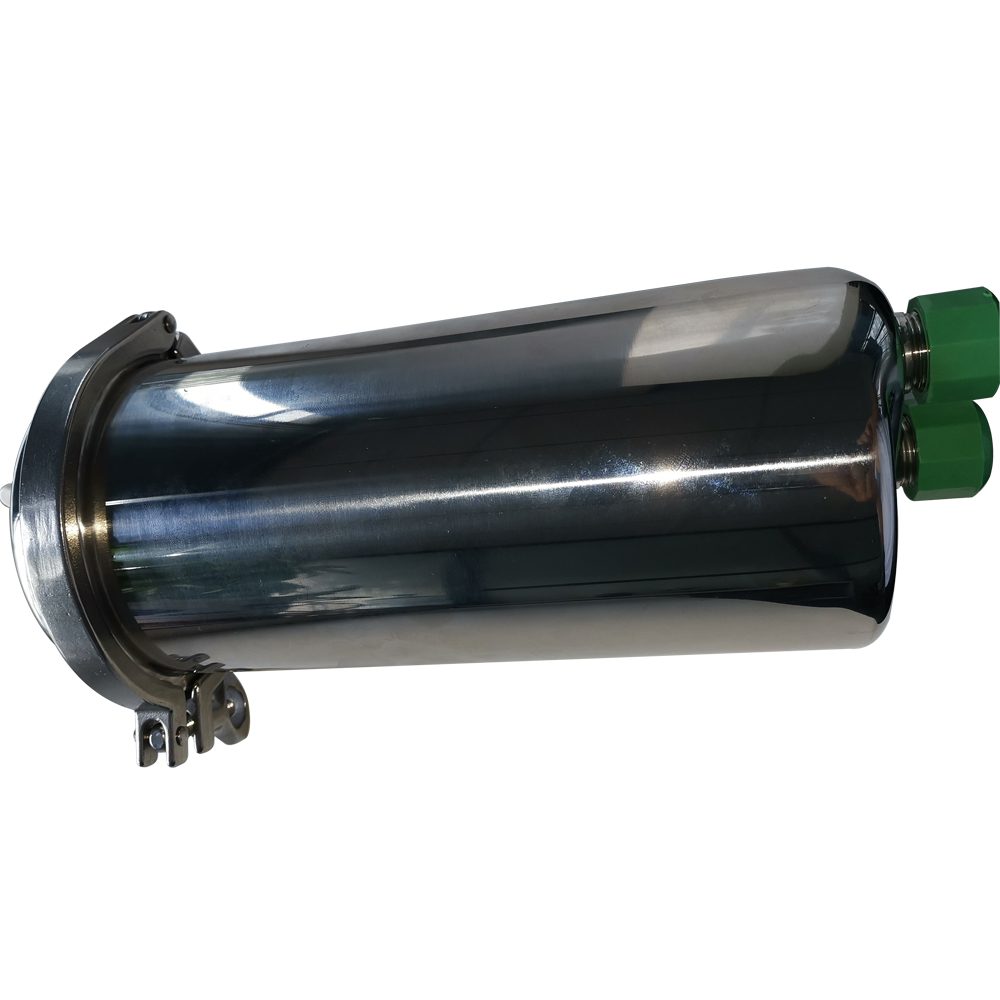

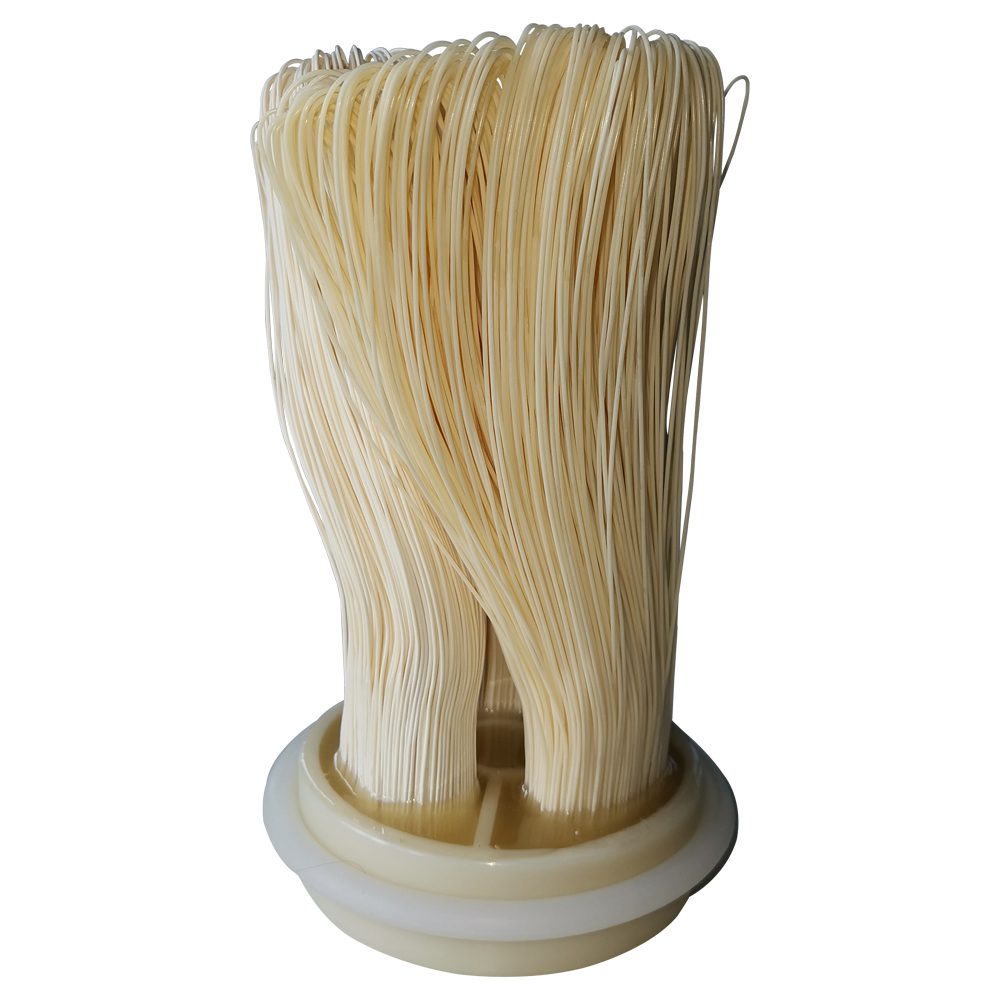

Household UF Filter specifications PVDF material hollow fiber Housing: SUS304, 2.0mm thickness Flow rate:500L/H Area:1.4㎡ Ø108×300mm Application: for city water or surface water filtration

Electrophoresis painting EUF-90 Membrane Specification PP material hollow fiber Electrophoretic Paint Membrane Flow rate:100L/H Area:12㎡ Ø90×1175mm UPVC housing To meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint. Removal of impurity ions, purification of bath solution, improve coating quality

UF Membrane NM-UF-90 (4 Inch) Model: NM-UF-90 Permeate Water Quality: Suspended Matter ＞2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5   Descriptions: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron.  Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
