Electrophoresis Painting UF Membrane

Name: Electrophoresis Painting UF Membrane
Availability: InStock

Electrophoresis painting EUF-90 Membrane Specification

PP material hollow fiber

Electrophoretic Paint Membrane

Flow rate:100L/H

Area:12㎡

Ø90×1175mm

UPVC housing

To meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint. Removal of impurity ions, purification of bath solution, improve coating quality

Inquire Now

Product Details

Description

Electrophoresis painting EUF-90 Membrane, to meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint, which can be applied to the coated product. If you do not use the ultrafiltration system, the recovery rate is only 70%-80%.

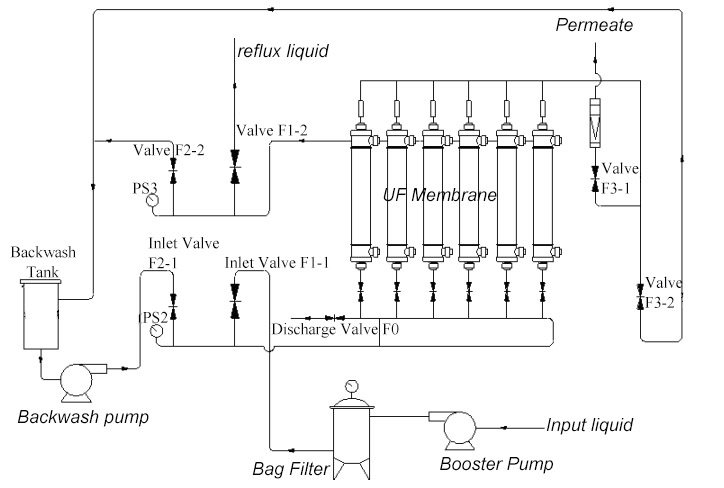

UF Treatment Process for Electrophoresis painting:

Electrophoretic painting UF Treatment process

Model	NM-EUF-90 (Material: PP Polypropylene)
Diameter of Hollow fibers	0.3/0.4mm
Filtration Method	Outside-in
Effective Membrane Area	12m²
Design Flow rate	60—160L/m².H
Potting Material	Epoxy resine
Housing Material	U-PVC
Pore Size	0.02—0.1micron
Maximumu pressure	0.2MPa
Inlet Liquid particle size	Less than 50um

electrophoretic paint UF Membrane EUF-90

Pore size	0.01 um
Max turbidity of inlet water	≤100 NTU
Filtration	Cross-flow filtration filtration
Inlet water pressure	0.1—0.15 MPa
Filtration Method	Outside-in
Design flux	60—100L/H
Dia I/O	0.3/ 0.7mm
Max pressure difference of transmembrane	0.1 MPa
Applicable PH range	2- 13
Tolerable continuous residual chlorine	100 PPM
Tolerable interval residual chlorine	200 PPM
Backwash Interval	Every 15-60min
Backwash time	30-60sec
Backwash pressure	0.12—0.15MPa
Backwash flow design	0.8T/H
CIP Backwashing	Every 30-90day
CIP Chemical	NaClO, NaOH liquid

Electrophoresis Painting UF Membrane Application

Electrophoretic paint UF Membrane, which is widely applied in the coating process of automobile, hardware, electrical appliances, tractors, bicycles, jewelry, spectacle frames and other industrial manufacturing industries. The use of Electrophoretic UF Membrane to recover electrophoretic paint can save 30% of the amount of electrophoretic paint, that greatly reduce the discharge of painting in the production process. The electrophoretic UF Membrane can be greatly improved by improving the conductivity in the Bath tank and the quality of coating.

We can accord to clients requirement supply the completely UF System for coating.

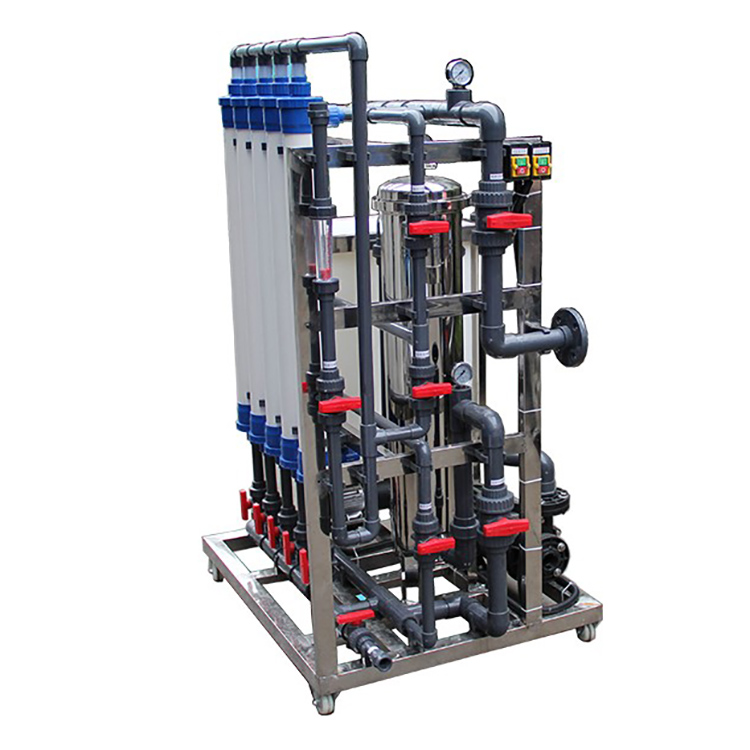

Electrophoretic Painting UF System

Benifits

* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly.

Packaging

Paper carton pack.

Our Service

We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
