UF is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.

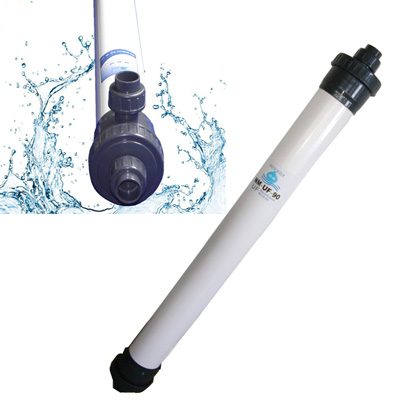

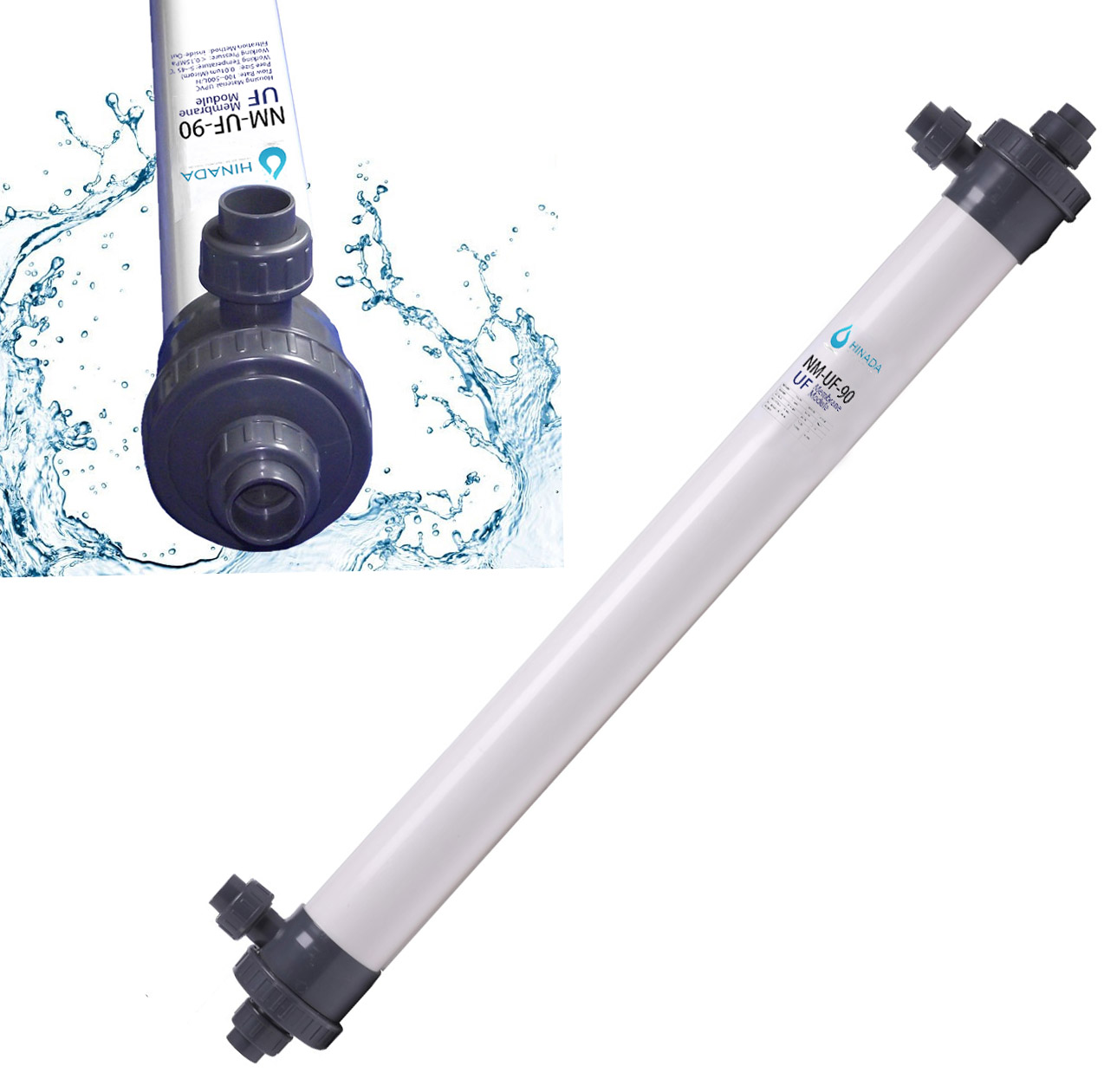

This UF Membrane NM-UF-90 is special designed for industrial small project like less than 5000Ltr/Hour.

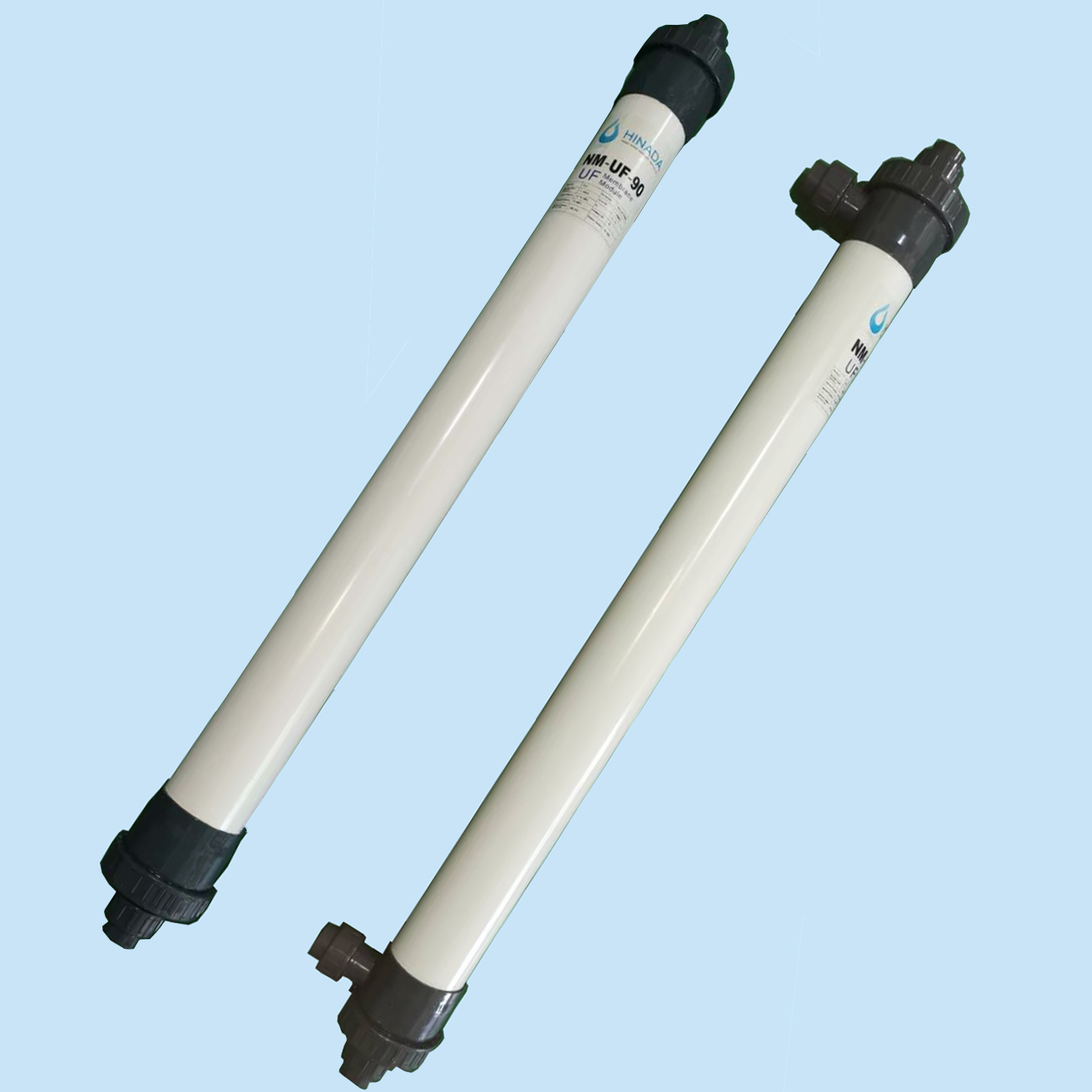

Hinada has PVDF material and PVC material hollow fibers, the UF Membrane UF-90 design capacity around 500 Liters / Hour for surface water filtration.

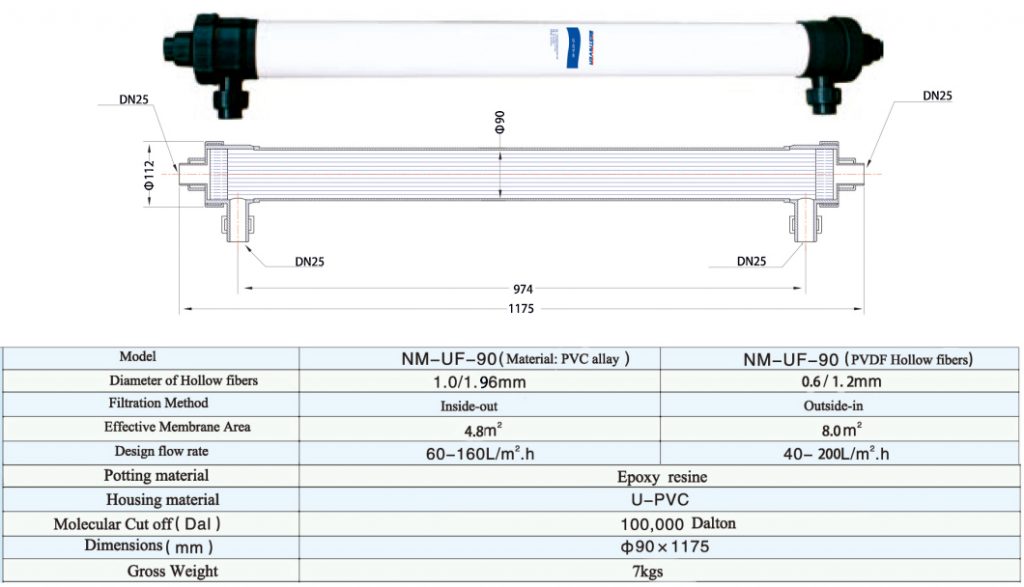

NM-UF-90 Dimension:
NM-UF-90 Specification:
| Hollow fibers | PVDF | PVC |
| Pre – filtration | 50-150 um | 50-150 um |
| Max turbidity of inlet water | ≤50 NTU | ≤15 NTU |
| Hollow fibers I/O diameter | 0.6 /1.2mm | 1.0 /1.96mm |
| Design flow rate | 500—1200L/ Hour | 300—800L/ Hour |
| Housing Material | U-PVC | U-PVC |
| Membrane Area | 8m² | 4.8m² |
| Filtration | Outside-in | Inside-out |
| Max inlet water pressure | 0.45 MPa | 0.45 MPa |
| Max pressure difference of transmembrane | 0.25 MPa | 0.25 MPa |
| Applicable PH range | 2- 13 | 2- 13 |
| Tolerable continuous residual chlorine | 100 PPM | 100 PPM |
| Tolerable interval residual chlorine | 200 PPM | 200 PPM |
| Backwash Interval | Every half hour | Every half hour |
| Backwash time | 30-60sec | 30-60sec |
| CIP Backwash | Every 30-90day | Every 30-90day |
| CIP Chemical | NaClO, NaOH liquid | NaClO, NaOH liquid |
