MBR Production Line
 |
 |

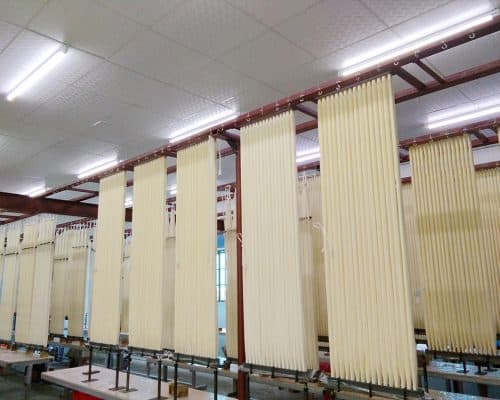

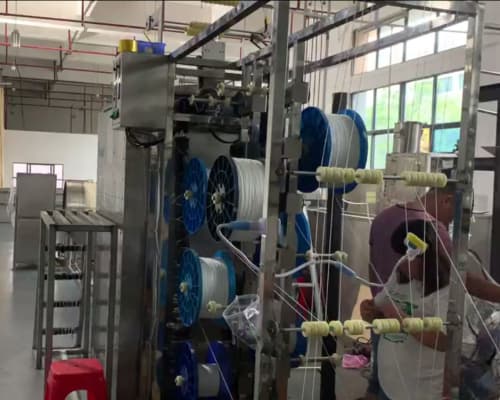

| The PVDF hollow fibers spinning machine | The MBR Element Gluing Workshop |
Our Production Line
Hinada has a very strong and professional engineers team and sophisticated workers for Hollow fiber manufacturing and water treatment machine designation, assembly, installation, test, commissioning and after-sales service.
Hinada has a leading MBR Production Line of hollow fiber, the hollow fibers has good hydrophilicity feature, its material can be PVDF and PVC, it can be applied to wastewater and water filtration purpose. Our MBR Production line has built in year of 2012.
| Material | Reinforced PVDF hollow fiber | PVDF hollow fiber | PVC hollow fiber |
| I/O diameter | 1.0/2.2mm | 0.6/1.2mm | 0.9/1.95mm |
| Water Permeability | 10—25 L/m2. h | 10—25 L/m2. h | 10—25 L/m2. h |
| Operating Temperature | 5℃-45℃ | 5℃-45℃ | 5℃-45℃ |
| PH | 2月12日 | 2月12日 | 2月12日 |
| Operating pressure | -0.2—0.4MPa | -0.2—0.4MPa | -0.2—0.4MPa |
| Turbidity of output water | Less than 1NTU | Less than 1NTU | Less than 1NTU |
| Filtration Method | Suction / Outside-in | Suction / Outside-in | Inside-Out |
| Pore Size | 0.03–0.06um (Micron) | 0.03–0.06um (Micron) | 0.03–0.06um (Micron) |
| Application | Widely in waste water treatment of MBR application | Widely in waste and surface water treatment of MBR or UF application | Widely in surface water treatment of UF application |
More technical data of Hollow fibers, please contact with us.

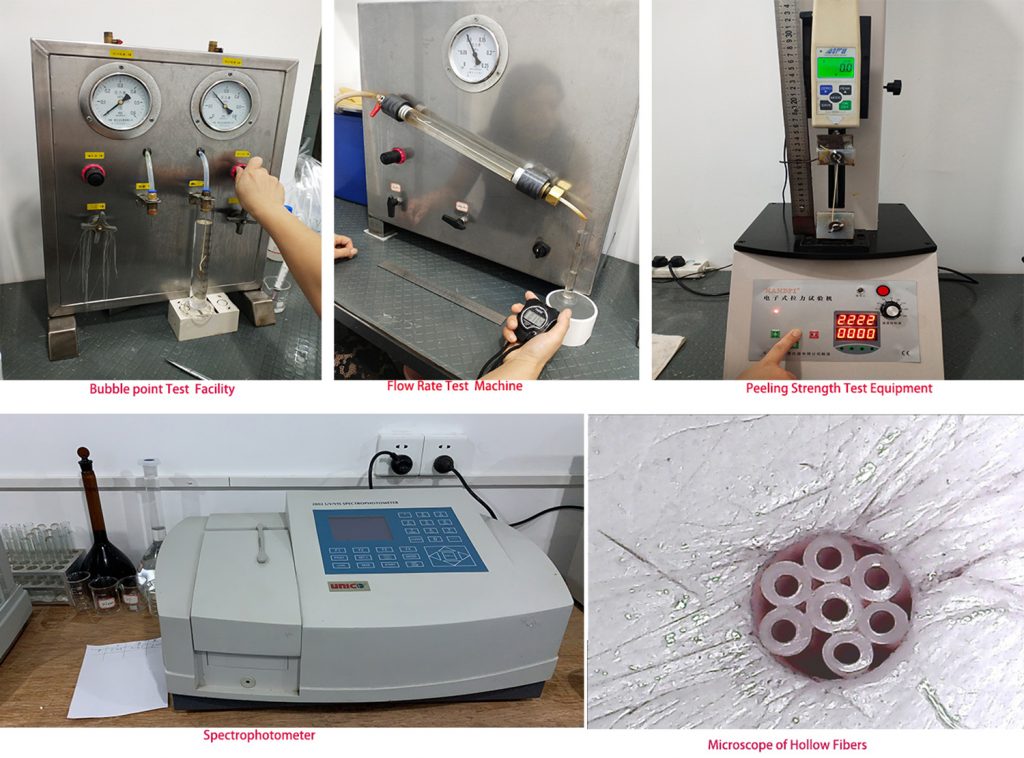

Some of our Test Equipment of Hollow fibers
One of the most critical aspects of employing membrane technology is in assuring that the membranes are in good quality. There are several different methods that can be employed to monitor membrane integrity, including:
* Flow rate test at different working pressure and water temperature
* Bubble Testing
* Microscope of Hollow fibers, check the thickness of hollow fibers and Uniformity
* Peeling strength of hollow fibers
