Submerged MBR Membrane NM-RMBR-1530
Submerged MBR Membrane NM-RMBR-1530 for is widely used for industrial and sewage waste water treatment，it’s ideal for capacity above 300m3/day.
Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor.
NM-RMBR-1530 Membrane Element Specification
| Type | NM-RMBR-1530 | |
| Membrane | Nominal pore size (μm) | 0.06 Micron (Average) |
| Material | PVDF, PET non-woven fabric and ABS resin | |
| Membrane area per element (m 2 ) | 30 m 2 | |

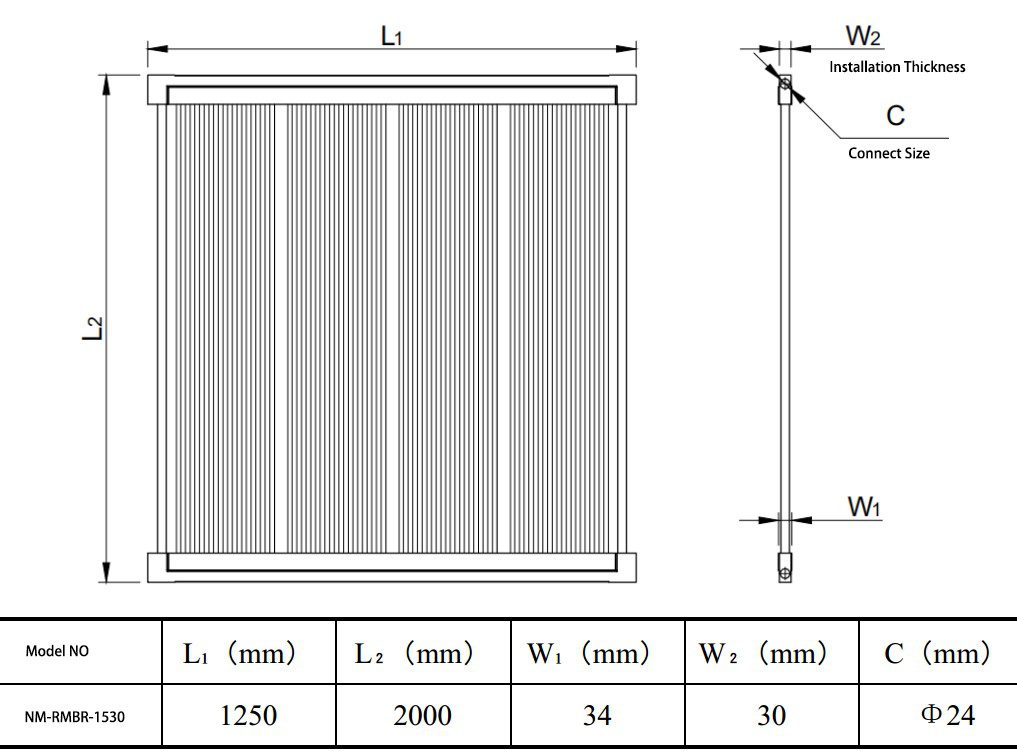

| Membrane Element dimension | Height L2: 2000mm | |
| Wide L1: 1250mm | ||
| Thickness W2: 30mm | ||
| Filtration Method | Suction /Outside-in | |
| Hollow fibers I /O diameter | 1.0 /2.2 mm | |
| Design flow rate |
300—600 Liters/ Hour
(Sewage design 450 L/H) |
|
| Air diffuser |
Fine bubble, tube type,
EPDM rubber |
|
| Recommended usage |
Big capacity plants (>200 m
3
/d)
In-building wastewater reuse application Municipal & industrial wastewater |
|
Reinforced PVDF Hollow Fibers Specification:
| Material | Reinforce PVDF hollow fiber (PET+PVDF) |
| I/O diameter | 1.0/2.2mm |
| Operation Mode | Outside-in |
| Water Permeability | 10—25 L/m 2 . h |
| Operating Temperature | 5℃-45℃ |
| PH | 2-11 |
| Pore Size | 0.06um (Micron) |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.5 NTU |
| Filtration Method | Suction |
| Max TMP | 60 kPa |
| Backwash Flux | 30—50L/ m 2 . h |
| Max Backwash pressure | 70 kPa |
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.5NTU
SDI of output clean water: ≤ 3
Hinada is the leading manufacturer of MBR Membrane , further information or technical data please contact with us.
