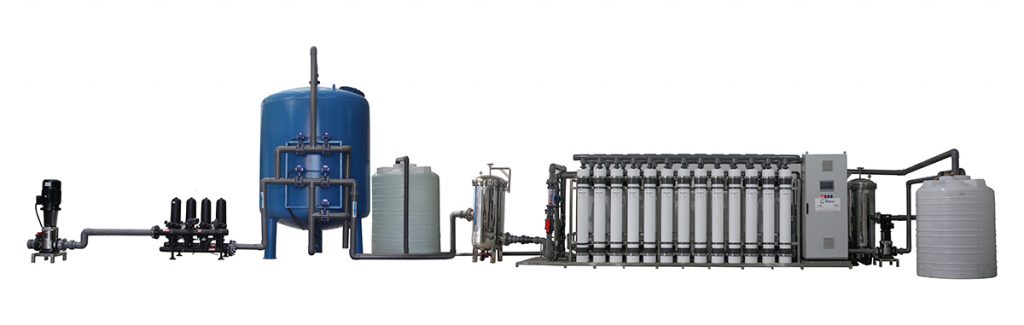

Drinking Water System UF Technology 1000 m3 per Day
Application: Drilling Water for Drinking Water System UF Technology

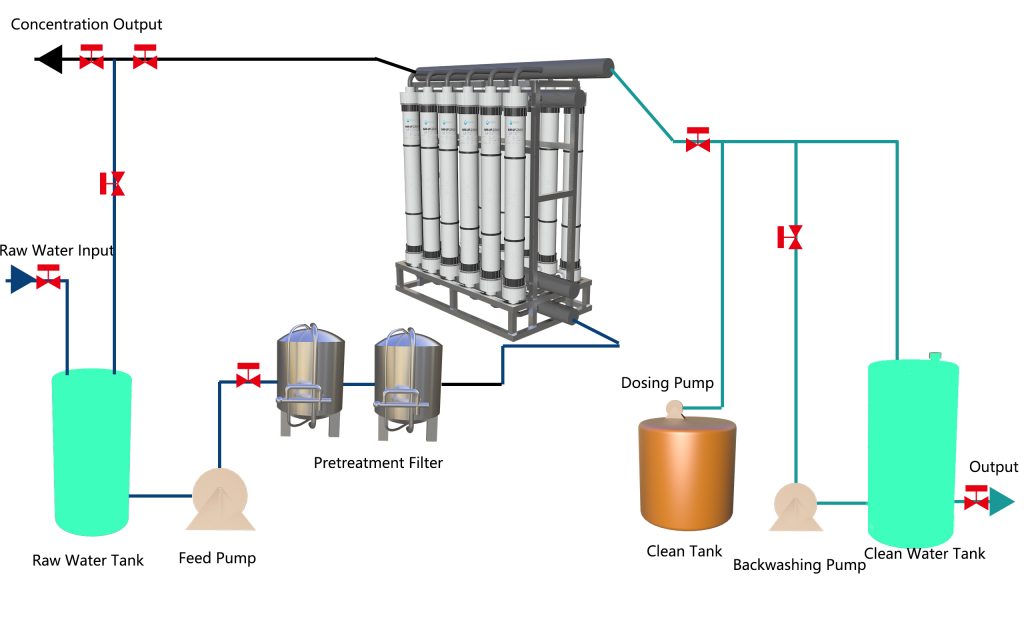

UF System Process
- Overall Capacity – 1000 m3/Day
- Feed Pumps
- Activated Carbon Filter
- Siemens PLC Control Panel With HMI for UF System
- Hinada UF Modules NM-UF-2860
- Air Blower + 304L SS Air Scour Line
- Electrical Valves + Ball Valves
- 5um Micron Cartridge Filter With SS Housing
- Backwash pump + Cartridge PP Filter
- CIP Clean System ( Centrifugal pump + PE Tank + Cartridge PP Filter)
Applied Solution: Hinada manufactures the most efficient ultrafiltration systems around the world for applications regarding underground or surface of treated water. An ultrafiltration system was designed for generating clean water for produce in USA. These UF Systems are used as pretreatment for the removal of unwanted impurities before sending the treated water to domestic use that complete the purification process, and the production of fresh, clean water.
UF Advantages:
- Superior filtration performance with high flux Very small nominal pore diameter (0.06 µm)
- Efficiently gets rid of bacteria and viruses
- Periodically back washed and air scoured to enhance overall performance and casting off the fouling layer to extend working life
- Low fouling membrane modules
- UF Outside-In or Inside-Out Configuration lets in reduced plugging and greater solids loading
- Basic, vertical, modular plan approves low cost, compact systems Effective membrane cleaning has a high chemical resistance and temperature tolerance
Our Video of Drinking Water System UF Technology 1000 m3 per Day as your reference:
Further information about this project or similar UF Solution, please do contact with us.
