How to Choose a Packaged MBR System for Hotel Wastewater Treatment

How to Choose a Packaged MBR System for Hotel Wastewater Treatment

Resort hotels located in airports, close to the sea, or in remote areas with good landscapes, as well as remote communities without access to a municipal sewage system, often need to build their own wastewater treatment plant. Hotel wastewater presents unique challenges: variable seasonal flows, high concentrations of fats, oils, and grease (FOG) from kitchens, and strict discharge or water reuse requirements.

A packaged MBR system for hotel wastewater treatment from Hinada offers a compact, automated solution—but selecting the right configuration requires careful evaluation. Here is a step-by-step guide.

1). Start with a Project-Specific Proposal, Not Nominal Capacity

The most critical step is to avoid selecting equipment based on a generic capacity figure alone. Hinada advises buyers to request a project-specific proposal that explains the recommended process, pretreatment requirements, equipment scope, and operating assumptions for your site. For a hotel wastewater treatment system, this means providing:

• Raw water quality test report
• Required output water quality standard
• Treatment capacity per hour or number of rooms

2). Determine the Right Treatment Capacity

Hinada’s packaged MBR systems typically range from 10 m³/day to 200 m³/day, with larger flows handled by multiple containers or custom designs. For a hotel, calculate capacity based on:

• Occupancy rate (peak vs. average)
• Restaurant and kitchen load (high FOG and organic content)
• Laundry and landscaping water demand
• Diurnal flow variations—hotels often have sharp morning and evening peaks

For example, a 200 m³/day system may have a peak capacity of around 240 m³/day, with the MBR designed to work at 10 m³/hour. Specify both average and peak flows in your inquiry.

3). Match Pretreatment to Hotel Wastewater Characteristics

Hotel wastewater contains hair, fibrous materials, and FOG that can clog membranes. Hinada recommends a pretreatment train including coarse bar screen, aerated grit and sand removal, fine screen, and coagulation where needed. For FOG, the target at the biological treatment inlet should be less than 5 mg/L—typical domestic FOG levels will not affect membrane performance if properly managed. If your hotel has a large kitchen, a dissolved air flotation (DAF) system may be advisable as a pretreatment step.

4). Define Effluent Quality and Reuse Goals

MBR effluent is well-suited for irrigation, toilet flushing, and dust suppression because it produces low-suspended-solids water with consistent quality. Hinada systems can achieve turbidity below 0.2 NTU and remove bacteria and viruses. Clarify your discharge limits: if phosphorus or nitrogen removal is required, the MBR design should include anaerobic and anoxic tanks for biological nutrient removal. If dissolved-salt reduction is needed, reverse osmosis (RO) may be added downstream.

5). Evaluate Footprint and Installation Options

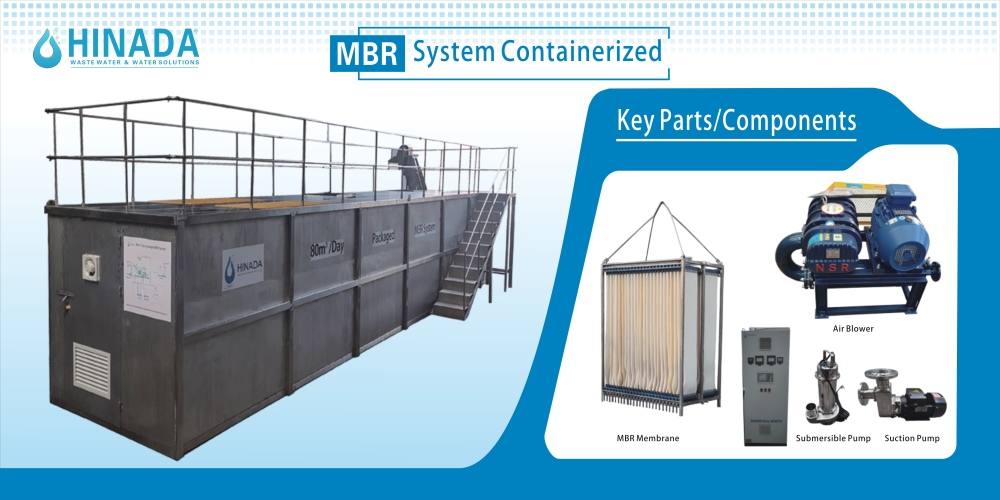

Hinada’s containerized MBR systems are fully preassembled and packaged in carbon steel containers with anti-corrosion painting (5–8 mm thickness), making them moveable and requiring minimal construction work. If your hotel has limited space—such as a basement or a compact service yard—confirm the exact footprint and available access for delivery and maintenance. For sites with very tight constraints, Hinada can also supply non-containerized integrated equipment.

6). Review Automation and Maintenance Requirements

Hinada MBR systems use PLC control with HMI, automatic backwashing, dosing, alarms, and optional remote monitoring via SCADA or 4G. This level of automation reduces operator workload, but an MBR system still requires skilled maintenance for membrane cleaning and fouling control. Ask Hinada about:

• Membrane lifespan (typically 3–5 years with proper operation)
• Backwash pump specifications and cartridge filter needs
• Whether a frequency converter is recommended for your capacity

7). Consider Total Cost and Support

Packaged MBR systems have higher capital and operating costs than simple treatment systems, but they deliver superior effluent quality and a smaller footprint. When comparing quotes, look beyond the purchase price: factor in power consumption (e.g., 2.5–3.5 kW/h for 10–20 m³/day units), membrane replacement, chemical dosing, and remote support availability. Hinada provides guidance on pretreatment selection, MBR tank sizing, and mechanical design as part of the proposal process.

Quick Checklist Before You Buy

Choosing a Hinada packaged MBR system for hotel wastewater treatment is not about picking the equipment unit only—it is about matching the process to your actual wastewater profile. By providing raw water data, effluent goals, and site constraints upfront, you enable Hinada to deliver a hotel wastewater treatment solution that works reliably for years, not just on paper.
