1000m3/D Containerized UF System for Drinking Water

Containerized UF System for Drinking Water

In modern industry, a reliable supply of pure water is critical for uninterrupted production and high-quality output. But how do you achieve large-scale, high-efficiency purification in a compact, smart, and ready-to-deploy package.

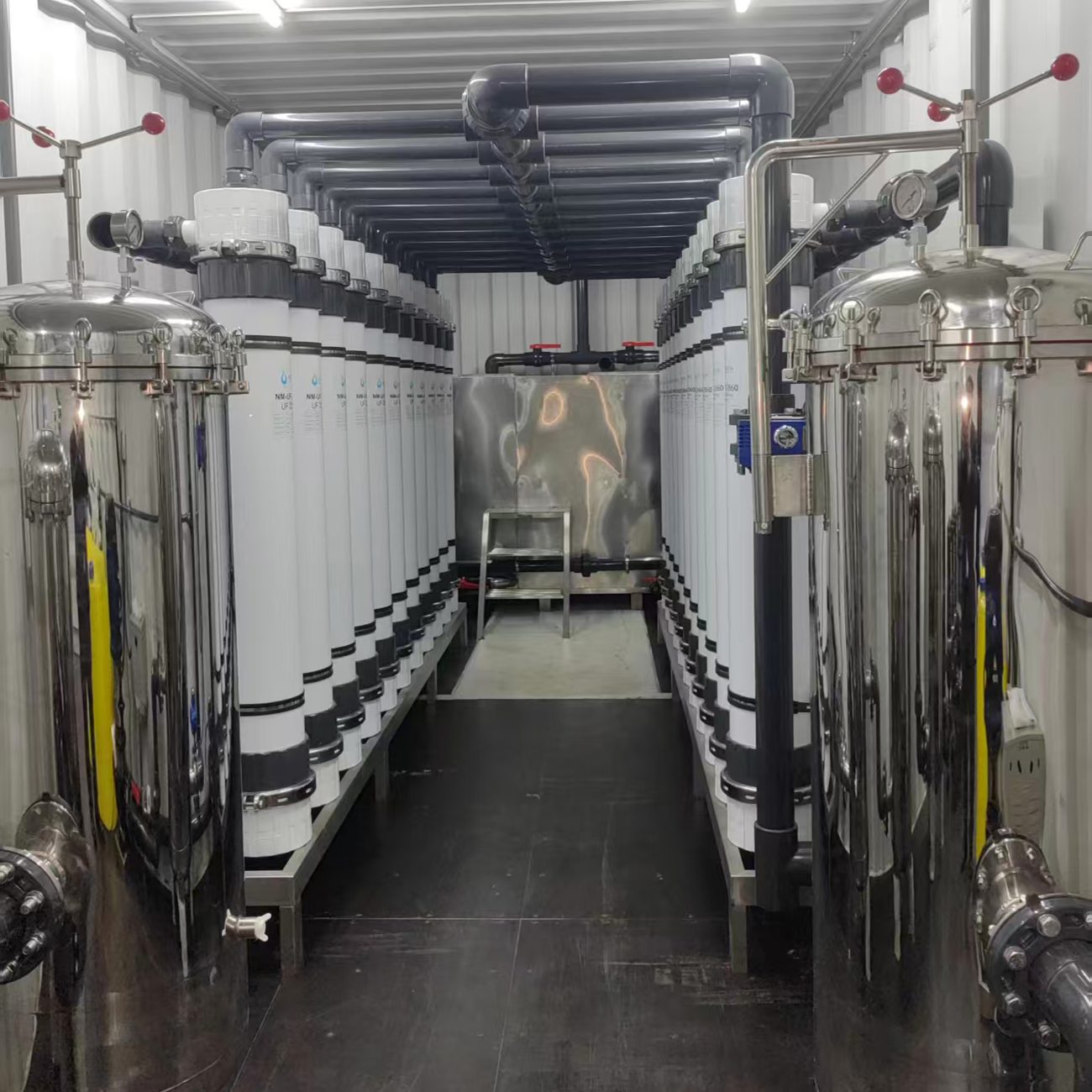

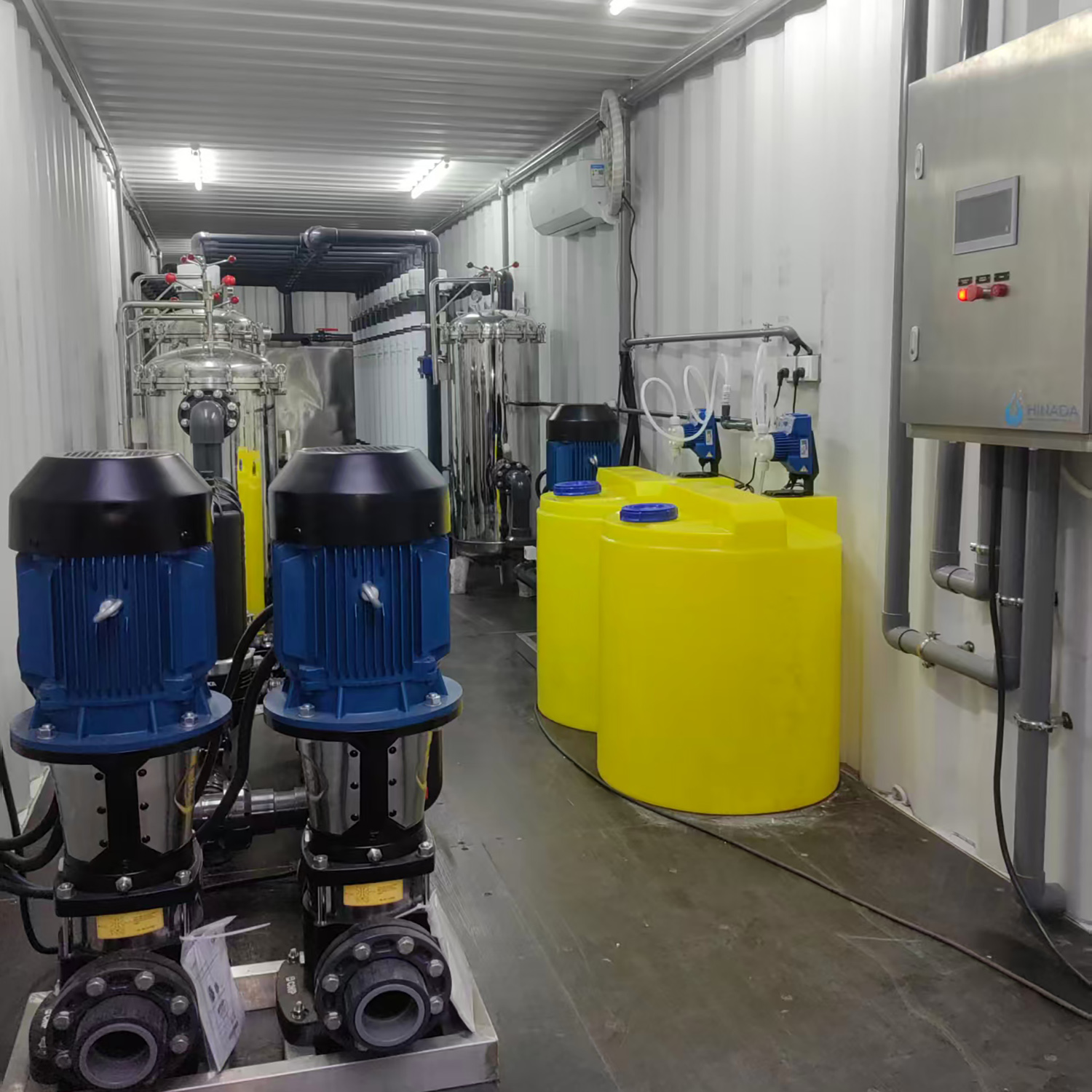

The answer is right here. This is our advanced Containerized Ultrafiltration System.The capacity is 1000m3 per day. It integrates the entire water treatment process into a single, standardized shipping container.

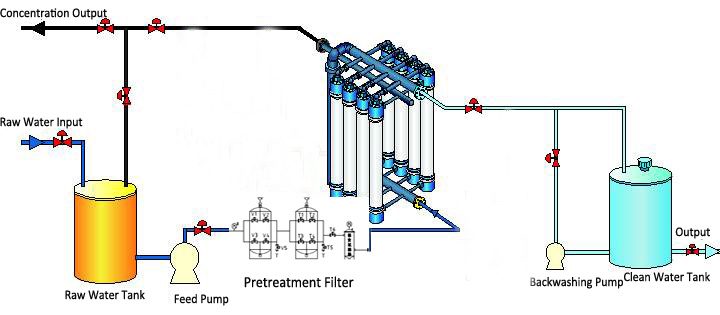

What you get is more than just equipment; it’s a plug-and-play water treatment plant, ready for rapid deployment Raw water is first pressurized by the feed pump. It then sequentially passes through the disc filter and bag filter, effectively removing suspended solids and larger particles.

Next, the water is polished by the cartridge filter, for deeper pre-treatment.

Finally, the core of the process – water enters the Ultrafiltration membrane modules. With pores at the microscopic level, they efficiently separate colloids, bacteria, viruses, and macromolecules, producing a consistent stream of highly purified water for your most demanding applications.

To ensure long-term, stable performance, the system features a fully automatic backwash system, integrated with inline chemical cleaning. This easily manages membrane fouling and restores flux. Furthermore, we’ve included a convenient Offline CIP circuit with a dedicated pump.

For intensive maintenance, you can perform a highly efficient, isolated cleaning of the membranes without complex disassembly, drastically reducing downtime and operational costs.

From feed water to product, from intelligent backwash to easy maintenance—this containerized ultrafiltration system is your all-in-one water treatment solution. It means a smaller footprint, faster deployment, and a lower total cost of operation.

Hinada — Advanced Water Treatment for Industrial Excellence.

UF System Including:

* UF Membrane module

* Valves & Meters

* Control System

* Pipes and Fitting

* 304 stainless Skid Frame

* Preccision Filter

* Raw water pump

* Backwash pump

Application

The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

1. Surface Water Clarification for drinking or industry application

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one.

Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement.
According to your project requirement design the UF System.
Offer installation and commissioning support.
