Ultrafiltration plant are build with, which hollow fiber outside-in or inside-out membranes, UF membrane pore size is 0.01um, to purify surface or groundwater from suspended solids, colloids and all kind of micro-organisms such as bacteria, virus, protozoa, germs and larvae. We are ultrafiltration (UF) system manufacturer, we can manufacture UF plant as any your requirements for your water treatment projects.
* Ultrafiltration system

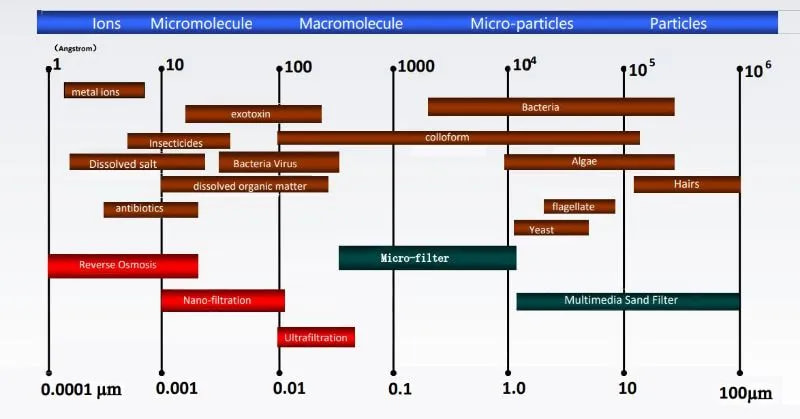

* UF membrane pore size: 0.01um
* Energy saving, backwashable
* Low investment
* Good output water quality
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
With over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
Key Feature of the UF Technology
♦ Feature 1:
Safe, affordable and sustainable Clean Water UF Technology
High quality effluent, Turbidity of output water: ≤ 0.2NTU
Suspended Matter >2um, 100% removal
With the ultrafiltration systems, suspended solids and turbidity in the water are treated at a high level, while certain level of color removal is also provided. One of the most important features of ultrafiltration systems is that it can remove all the bacteria and viruses that are likely to be found in water. Due to this feature, it has an extensive area of application, especially in spring water and drinking water treatment.
♦ Feature 2:
Lower footprint /Space /Moveable
Easy operation ( Automatically controlling), Easy assembly
♦ Feature 3:
Low energy cost, power consumption around: 0.3kw / 1000Liters water
♦ Feature 4:
No dosing system, no chemicals, no pollution
Application

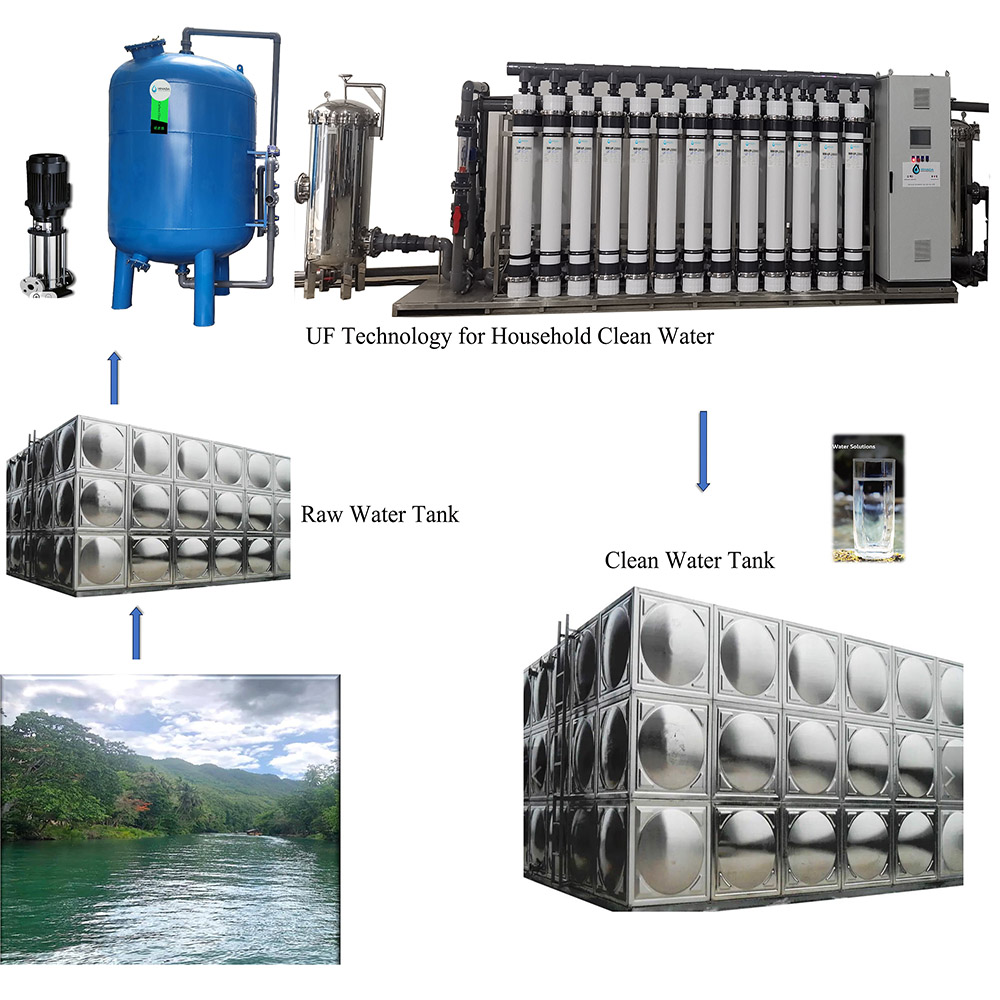

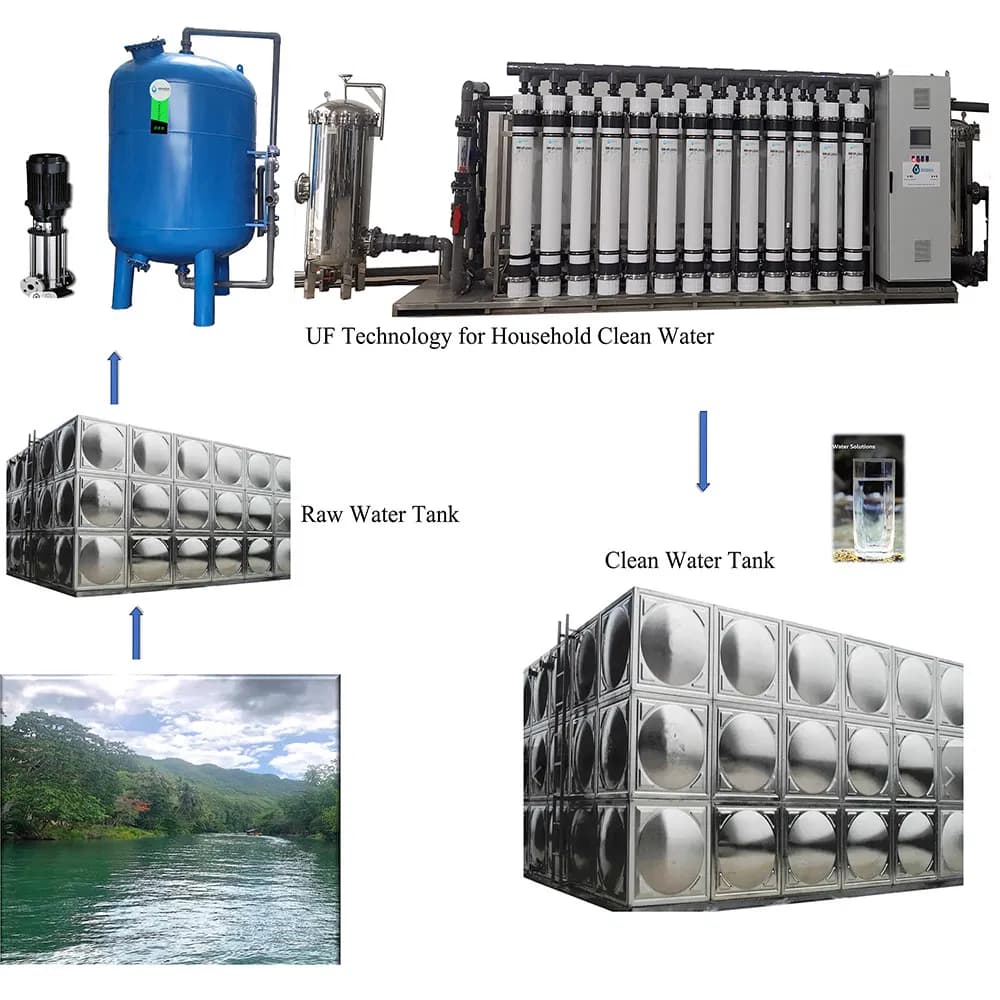

The UF System is widely used in water production corporations, factory or schools or Citizen Community as drinking water treatment system. The application including :
1. Surface/River Water Treatment UF Technology without chemical
2. RO System Pre-Treatment
3. Waste Water or Sewage Treatment or Industrial Production Application purpose.
UF System Benifits
Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%
Main Equipment List
| Sr.No. | Item Description | Specifications | Unit | Qty | Remark |
| UF system | Q=125 m 3 /h. | suit | 1 | ||
| 1 | UF membrane module | NM-UF-2860,ø225X1860mm,Membrane material: PVDF high-anti pollution Membrane Area:52m2 Flow rate:2.5m3/H |
piece | 52 | |
| 2 | Valves | ||||
| Electric valve | DN100, SUS304 | piece | 5 | ||
| Ball valve | DN100, 50 | piece | 2 | ||
| Manual valves | DN100 | piece | 2 | ||
| 3 | Meters and switches | ||||
| Outlet water flow meter | Q=4-100m3/h. Pipeline glass rotor | piece | 1 | ||
| Concentrated water flow meter | Q=0-40m3/h. Pipeline glass rotor | piece | 1 | ||
| Pressure gauge | 0-0.6MPa | piece | 2 | ||
| Pressure switch | 0-0.6MPa | piece | 2 | ||
| 4 | Control system | PLC automatic control with Touch Screen PLC import from Germany Siemen, Schneide electric parts |
suit | 1 | |
| 5 | Pipe & fitting | DN75, 63,50, UPVC pipe & fitting | suit | 2 | |
| 6 | Plant frame (Skid) | SS304 | suit | 2 | |
| 7 | Precision Filter | 5μm Cartridge filter Housing SS304 material Q=120m 3 /h, ф700×1000 |
set | 2 | |
| Ф40″, accuracy 1μm, Material: PP |
pcs | 100 | |||
| Sr.No. | Item Description | Specifications | Unit | Qty | Remark |
| 8 | Feed water pump | Material: SS304 Q=120m 3 /h,H=30m /50HZ,380V,3Phase, 10KW(optional) |
set | 1 | CNP brand |
| 9 | Backwash pump | Material: SS304/316 Q=120m 3 /h,H=10m //50HZ,380V,3Phase,15kw |
set | 1 | CNP brand |
| 10 | Online Chemical washing | Dosing pump, PE tank, pipes | set | 2 | |
| 11 | Containerized | in 40 feet container Dimension: L=12m, W=2.2m, H=2.6m |
set | 1 | |
