Dissolved Air Flotation (DAF) System in Textile Wastewater Treatment

Dissolved Air Flotation (DAF) System in Textile Wastewater Treatment

Oil and Grease: remove 70—90% of input
Suspended matter: remove 50—80%
COD: low down 40%
Color remove: 70%

DAF System Including: Reaction Tank, Dissolved Air Tank, Dissolved Air Pressure Pump, Control System, Agitator, Slag Scraper, Pipes and Fitting, Ladder and Fence, Dosing System

Description:
High efficiency,  Solid-liquid separation technology, remove a broad range of contaminants from textile wastewater. It is particularly effective eliminating the dyes and color.

And also Efficient in removing organic and inorganic suspended matters, flocs, phosphorus (p), Removing oil and grease, For oil refining, chemical industry, brewing, vegetable oil production and refining, slaughtering, electroplating, printing and dyeing.

Inquire Now

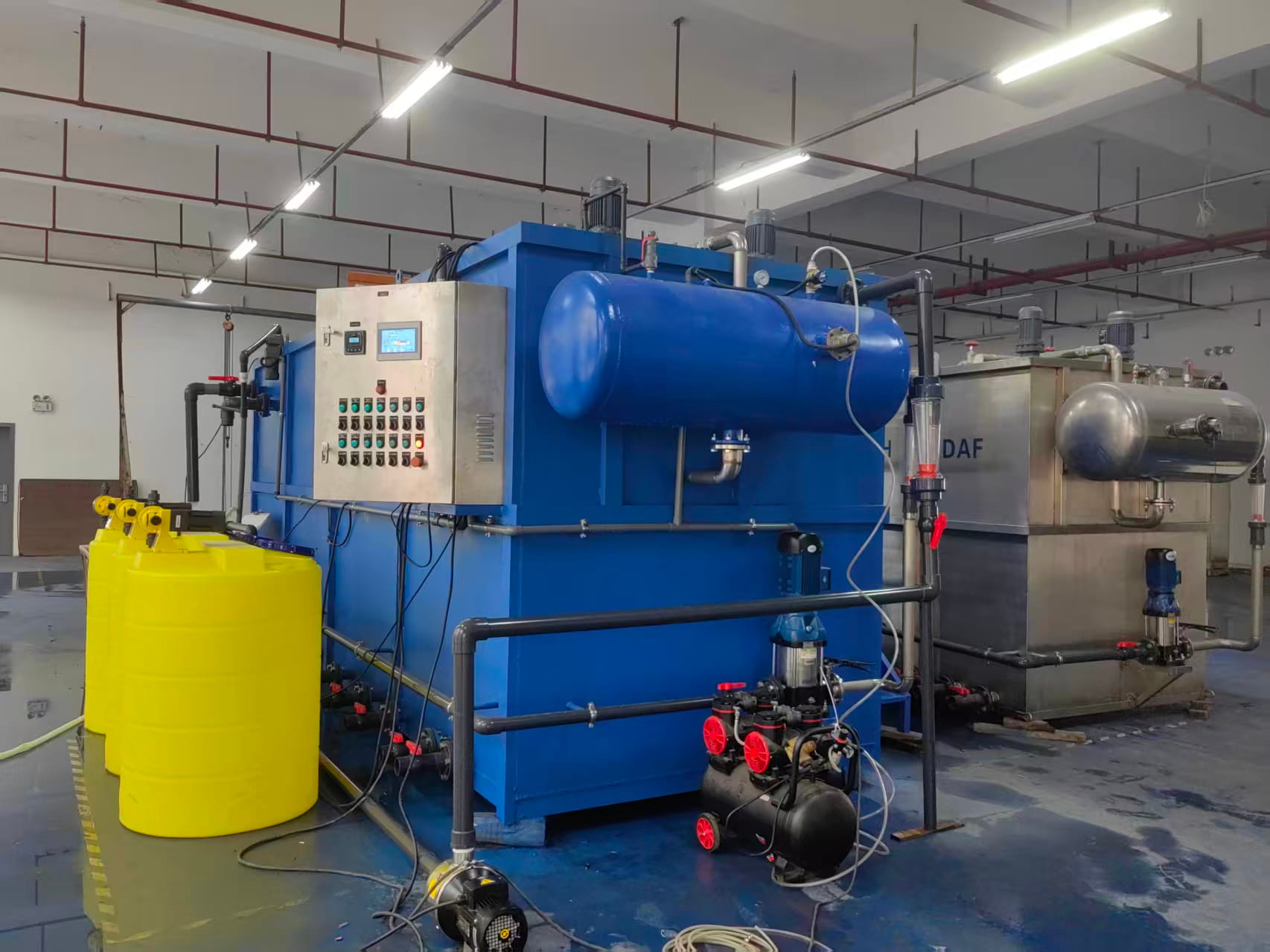

DAF System in Textile Wastewater

 Dissolved Air Flotation (DAF) system is a highly effective water clarification process that uses millions of tiny air bubbles to separate and remove suspended solids and a broad range of contaminants from textile wastewater. It is particularly effective eliminating the dyes and color.

DAF System oil grease

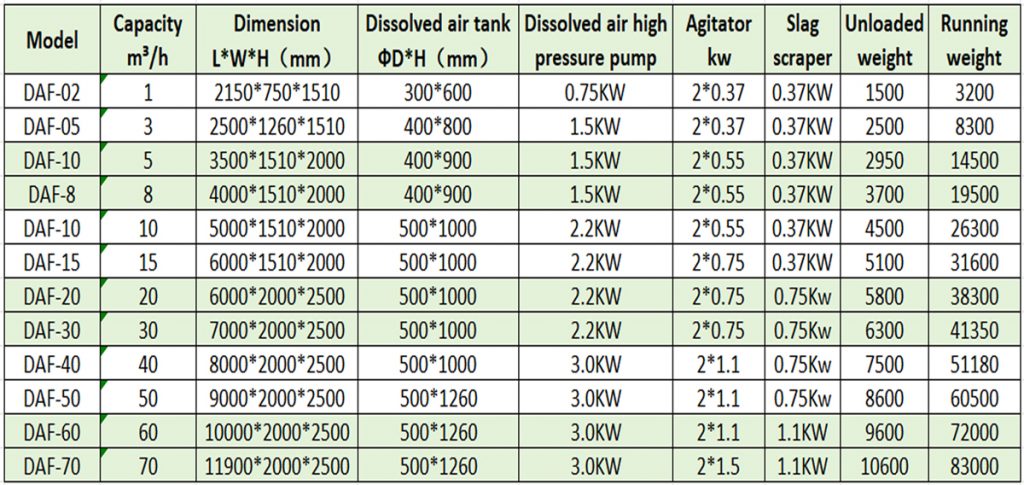

Dissolved Air Flotation Machine 20---30m3/Hour Capacity Specification



Items

Specification

Qty

Remarks

1

DAF System Tank

Material:SUS304

Dimension:L=7.0m, W=2.1m, H=2.2m

It has PH +PAC +PAM reactor tank, Flotation tank, clean water tank

1

HINADA

1.1

Booster Pump



Q=30m3/H, H=13m, P=3.0KW

CNP Brand

2

CNP

1.2

Water Level Detector



1



2

Reactor Tank







2.1

Dosing system



Dosing Pump

Q=30L/H, H=0.5MPa

3 sets

SYEELAI

PE Tank (PH+PAC+PAM)

PE Tank 1000L

3 sets

HINADA

Mixer for PE Tank

P=0.37KW, Speed: 62r/min for PH/PAC; 25*400 impeller, 1.1m axle with SUS304 Material.

Speed: 33r/min for PAM, 25*500 impeller, 1.1m axle with SUS304 Material.

3 set

SYEELAI

2.2

Mixer System

Mixer for Reactor Tank

P=0.75KW, Speed: 62r/min for PH/PAC; 25*200 impeller, 1.8m axle with SUS304 Material.

Speed: 33r/min for PAM, 25*300 impeller, 1.8m axle with SUS304 Material.

2sets

SYEELAI

3

Dissolved air System







3.1

Air Dissolved Vessel

Material: SUS304

Dimension: Φ500* 1500mm

DN50, Vessel thickness: 6mm

1

HINADA



Items

Specification

Qty

Remarks

3.2

Air Compressor

P=2.8KW, V=60L, H=0.8Mpa, Speed=2860r/min

1

TAHLI

3.3

Dissolved Air High Pressure Pump

High Pressure pump

Q=10m3/H, H=52m, P=2.2KW

CNP Brand

1

CNP

3.4

Release Nozzles

Material: SUS304

2 units

HINADA

3.5

   Magnetic valve

SUS304, DN50

1 set

HONGFA

4

Scraper System







4.1

Slag Scraper

Cycle Chain Material: SUS304

Axle: SUS304 Rod

1

HINADA

4.2

Gear Motor

P=0.5KW, Speed: 6m/min

1

BANGSHUO

5

Clean Water Tank







5.1

Adjuster

Water flow adjuster

1

HINADA

6

Control System







6.1

Control Panel

PLC + touch screen

Siemens PLC

Schneider electric parts

1

Siemens

6.2

PH Meter



1

CREATEC

7

Other parts

Pipes,valves etc

1

SLG

Hinada the leading manufacturer of DAF System for industrial wastewater treatment according to project requirement. To make the suitable proposal, we need know more details of project included: capacity, wastewater source,wastewater quality (SS,BOD,COD,FOG etc ).

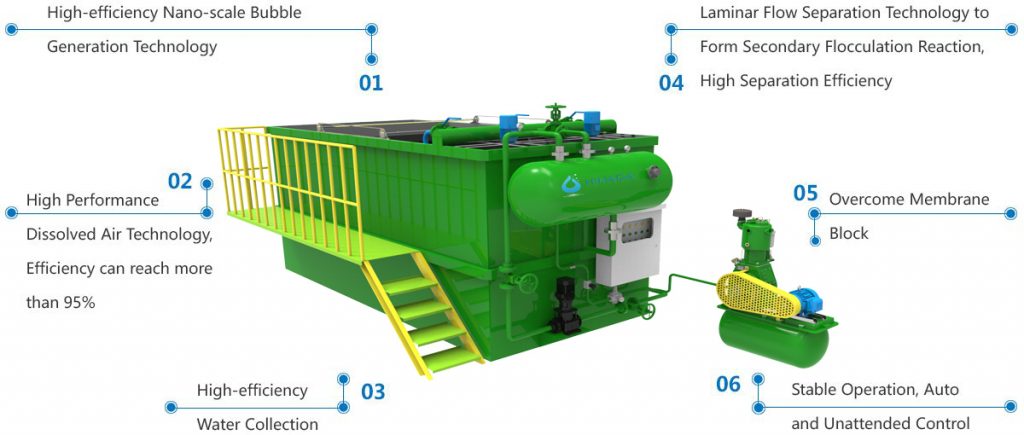

Dissolved Air Flotation System main feature

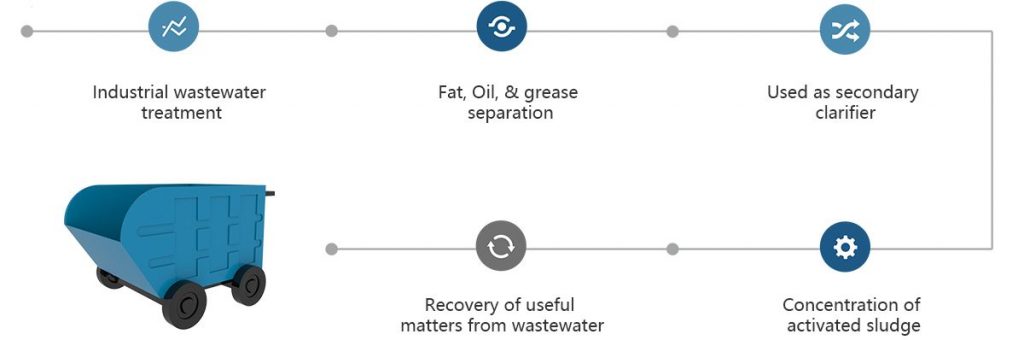

Key Applications in Textile Wastewater Treatment

Face the unique challenges issue posed by textile wastewater, including:

  • Removing Suspended Solids:  Effectively separates solids like textile fibers, lint, and other particulate matter.
  • Eliminating Dyes and Color:  Color always the big issues for textile wastewater that biological process or Membrane filtration not working, better paired with chemical coagulants and flocculants, DAF can achieve high rates of decolorization by binding dyes into floatable flocs.
  • Reducing Organic Load:  Significantly lowers Chemical Oxygen Demand (COD) and Biochemical Oxygen Demand (BOD5), making the water less polluting.
  • Treating Emulsified Oils: The micro-bubbles are very effective at separating oils and greases from the wastewater, which is essential in many textile finishing processe

DAF System Benifits

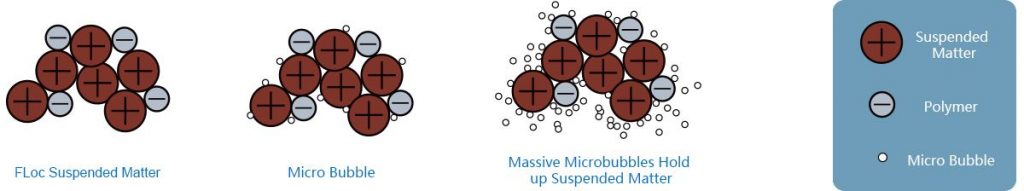

Dissolved Air Flotation System with the purpose to reduce and remove or low down the COD, TSS and FOG from industrial wastewater.  The DAF system utilises fine air bubbles, also known as ‘White Water’, which attach themselves to the suspended material within the waste stream, increasing buoyancy and floating them to the surface. The floated solids are then removed by a simple but effective scraper mechanism. More often than not chemical conditioning is used to increase the effectiveness of the Dissolved Air Flotation process.

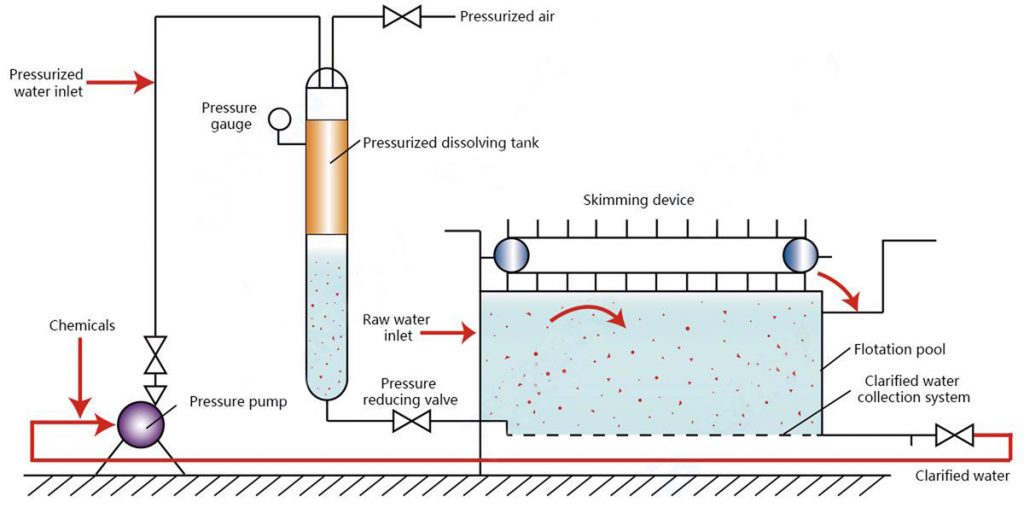

The Dissolved Air Flotation process uses the most reliable and positive method of producing air bubbles of the optimum size. This is done by dissolving air into water under pressure and then dropping the pressure on entry to the DAF cell using a controlled nozzle orifice. As the pressure is reduced, the air naturally comes out of solution in the form of micro bubbles.

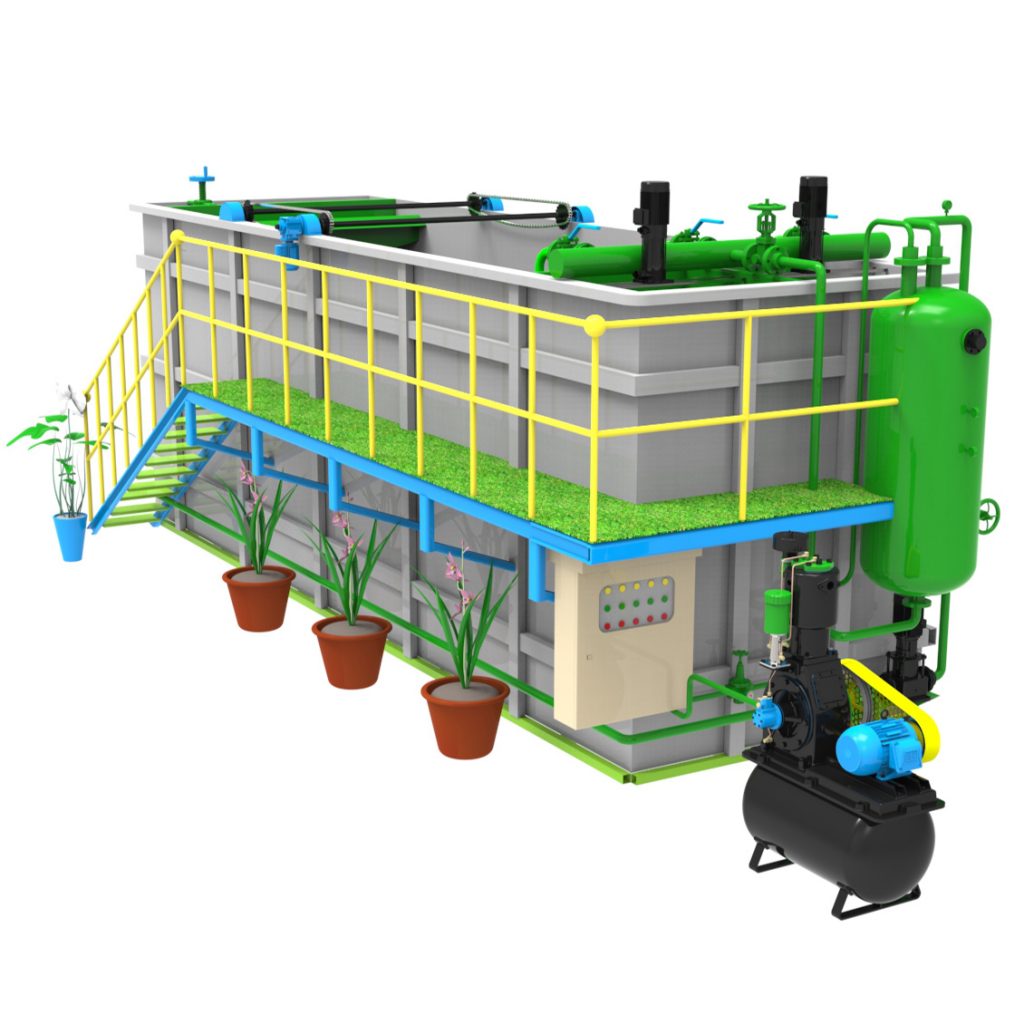

Dissolved air flotation machine for wastewater treatment oil grease high SS removal

Packaging

Plywood case packed or in container loading.



Our Service

  • Hinada has 10 Years custom DAF System for wastewater  treatment designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
    * Standard designs according your application, requirement and budget, we are one of leading DAF system manufacturers in China, we can produce and accept any special requirement orders.
    * Offer installation and commissioning support.
  • If you have a specific textile wastewater profile in mind or need further details on any of these technologies, feel free to contact with Hinada
