Home DAF System Equipment

Dissolved Air Flotation Equipment removing suspended oil and grease

Dissolved Air Flotation Equipment removing suspended oil and grease

Oil and Grease: remove 70—90% of input
Suspended matter: remove 50—80%
COD: low down 40%

DAF System Including: Reaction Tank, Dissolved Air Tank, Dissolved Air Pressure Pump, Control System, Agitator, Slag Scraper, Pipes and Fitting, Ladder and Fence, Dosing System

Description:
High efficiency,  Solid-liquid separation technology, Efficient in removing organic and inorganic suspended matters, flocs, phosphorus (p), Removing oil and grease, For oil refining, chemical industry, brewing, vegetable oil production and refining, slaughtering, electroplating, printing and dyeing.

Inquire Now

    General Description

    The DAF System , high efficiency dissolved air flotation machine is composed of high efficient air dissolving system and designed according to the new-generation of solid-liquid separation technology, which make the Hinada dissolved air flotation equipment (DAF) very efficient in removing organic and inorganic suspended matters, flocs, phosphorus (p), oil and grease from industrial wastewater such as oil refining, chemical industry, brewing, vegetable oil production and refining, slaughtering, electroplating, printing and dyeing.

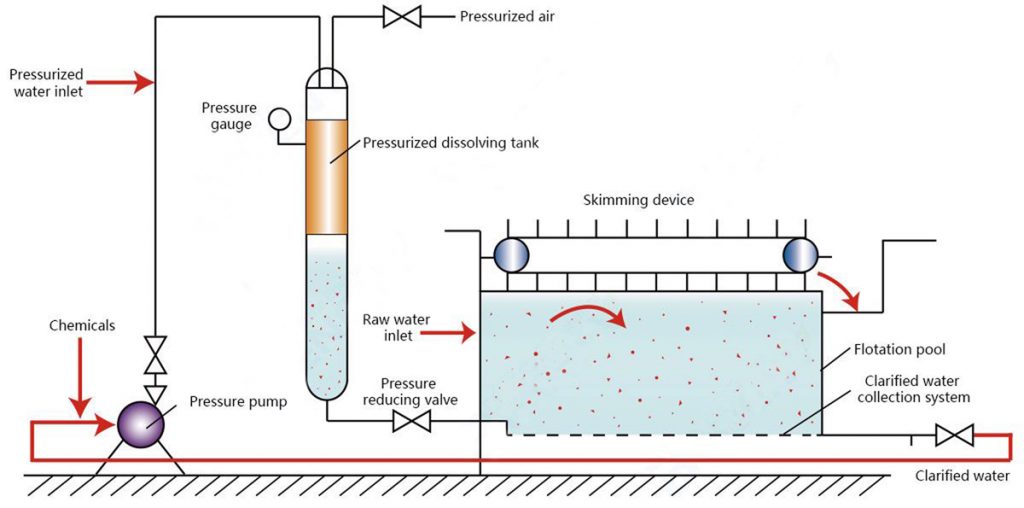

    DAF System oil grease

      While DAF systems vary in design, they all share several essential components that work in concert, Flotation tank, Air Saturation System, Air Contact Area, Separation Zone, Skimming Mechanism, Effluent Collection System, Control Panel.

    Dissolved Air Flotation Machine 75m3/H Capacity Specification



    Items

    Specification

    Qty

    Remarks

    1

    DAF System Tank

    Material:Carbon steel + Anti-corrosive

    Dimension:L=11.5m, W=2.1m, H=2.5m

    It has PH +PAC +PAM reactor tank, Flotation tank, clean water tank

    1

    HINADA

    1.1

    Booster Pump



    Q=85m3/H, H=8m, P=5.5KW

    CNP Brand

    2

    CNP

    1.2

    Water Level Detector



    1



    2

    Reactor Tank







    2.1

    Dosing system



    Dosing Pump

    Q=130L/H, H=0.5MPa

    3 sets

    SYEELAI

    PE Tank (PH+PAC+PAM)

    PE Tank 2000L

    3 sets

    HINADA

    Mixer for PE Tank

    P=0.37KW, Speed: 62r/min for PH/PAC; 25*400 impeller, 1.1m axle with SUS304 Material.

    Speed: 33r/min for PAM, 25*500 impeller, 1.1m axle with SUS304 Material.

    3 set

    SYEELAI

    2.2

    Mixer System

    Mixer for Reactor Tank

    P=2.2KW, Speed: 62r/min for PH/PAC; 25*200 impeller, 1.8m axle with SUS304 Material.

    Speed: 33r/min for PAM, 25*300 impeller, 1.8m axle with SUS304 Material.

    2sets

    SYEELAI

    3

    Dissolved air System







    3.1

    Air Dissolved Vessel

    Material: Carbon steel + Anti-corrosive

    Dimension: Φ800* 2000mm

    DN50, Vessel thickness: 6mm

    1

    HINADA



    Items

    Specification

    Qty

    Remarks

    3.2

    Air Compressor

    P=7.5KW, V=300L, H=0.8Mpa, Speed=2860r/min

    1

    TAHLI

    3.3

    Dissolved Air High Pressure Pump

    High Pressure pump

    Q=30m3/H, H=45m, P=7.5KW

    CNP Brand

    1

    CNP

    3.4

    Release Nozzles

    Material: SUS304

    4 units

    HINADA

    3.5

       Magnetic valve

    SUS304, DN90

    1 set

    HONGFA

    4

    Scraper System







    4.1

    Slag Scraper

    Cycle Chain Material: SUS304

    Axle: SUS304 Rod

    1

    HINADA

    4.2

    Gear Motor

    P=0.5KW, Speed: 6m/min

    1

    BANGSHUO

    5

    Clean Water Tank







    5.1

    Adjuster

    Water flow adjuster

    1

    HINADA

    6

    Control System







    6.1

    Control Panel

    PLC + touch screen

    Siemens PLC

    Schneider electric parts

    1

    Siemens

    6.2

    PH Meter



    1

    CREATEC

    7

    Other parts

    Pipes,valves etc

    1

    SLG

    Hinada the leading manufacturer of DAF System for industrial wastewater treatment according to project requirement. To make the suitable proposal, we need know more details of project included: capacity, wastewater source,wastewater quality (SS,BOD,COD,FOG etc ).

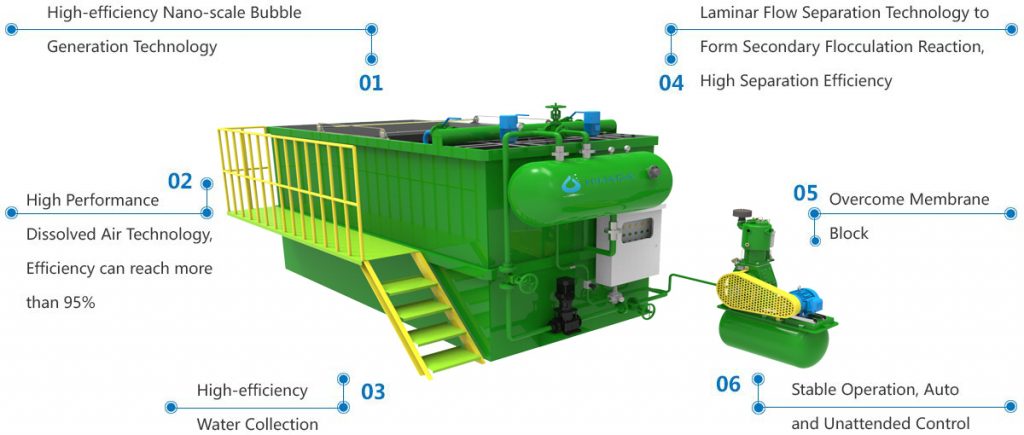

    Dissolved Air Flotation System main feature

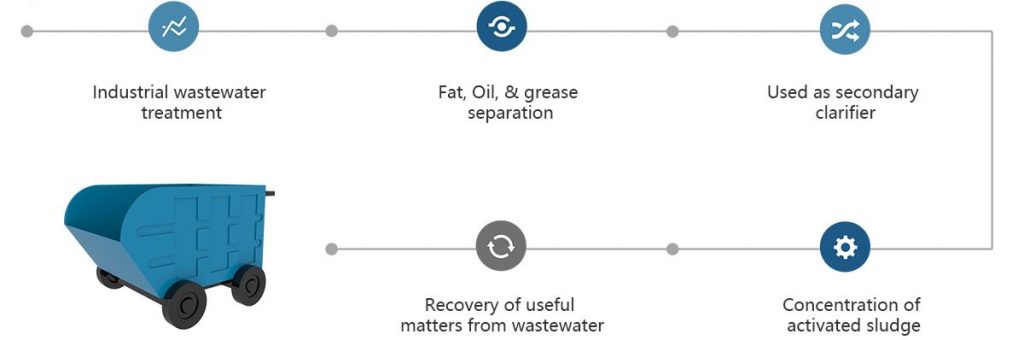

    DAF System Application

    Food Processing Wastewater                                                              Oil and Gas Wastewater

    Pulp and Paper Mill Effluent                                                                Chemical Manufacturing Wastewater

    Textile Wastewater                                                                              Pharmaceutical Wastewater

    Mining and Metal Processing Wastewater                                          Municipal Wastewater Treatment Plant



    DAF System Benifits

    High Efficiency & Speed: DAF is a very rapid process, with retention times of minutes instead of hours, allowing for a much smaller system footprint.

    Effective on Challenging Contaminants: DAF excels at removing low-density particles, algae, and flocs that may be slow to sink, which sedimentation struggles with.

    High-Quality Effluent: DAF produces a clearer effluent with lower turbidity and produces a thicker, more concentrated sludge that is easier to dewater and handle.

    Operational Flexibility: DAF systems can be easily adjusted to handle fluctuations in flow rate and wastewater composition by modifying chemical doses or the recycle flow rate

    .

    * Hinada has 10 Years custom DAF System for wastewater  treatment designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
    * Standard designs according your application, requirement and budget, we are one of leading DAF system manufacturers in China, we can produce and accept any special requirement orders.



    Packaging

    Plywood case packed or in container loading.



    Our Service

    * Hinada has 10 Years custom DAF System for wastewater  treatment designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
    * Standard designs according your application, requirement and budget, we are one of leading DAF system manufacturers in China, we can produce and accept any special requirement orders.
    * Offer installation and commissioning support.
