UF Technology for Drinking Water System

UF Technology for Drinking Water System

Understand UF Technology for Drinking Water System

UF Technology for drinking water systems is one of the several scientific filtration techniques in use today. Considered as the major membrane filtration method, the procedure makes use of hydrostatic pressure forcing fluid into another membrane and semipermeable. The solids & solute materials of higher molecular weight suspended in liquid are retained, while low weight suspended particles flow along with the water. The process is in use by major industries where macromolecular solutions are studied and purified. And, we at Hinada offer several UF Technology for drinking water systems for numerous industries. This is scientific procedure is similar to that of reverse osmosis, nanofiltration & microfiltration. However, one can have an idea that the process differs from methods for filtration with regards to size & types of substances it separates from fluid.

Ultrafiltration and how it takes place

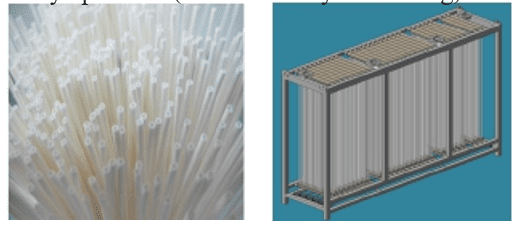

In majority of circumstances membrane which is used in the procedure should be semipermeable in nature. This membrane is ultra-thin that is highly capable of separating suspended substances with the help of driving force which is applied throughout layer/membrane. Earlier technology was very much in use to remove microorganisms & bacteria from fluid. Yes, desalination made use of membrane process to get rid of germs & other harmful particles.

Membrane method is also in use to eliminate organic particles & particulate materials that have the ability to pass on odors, colors, tastes, &much more to fluid in which they remain suspended. Ultrafiltration is essentially referred to as the disinfecting technique. Since the past few years, technological advancements have truly led the membrane procedure to undergo the major changes & new steps were included to make filtration more operative.

It has been found out that UF water ensures better quality of water as it helps eliminate dissolved contaminates & colloidal particles from water. The procedure is highly scientific & manufacturers producing UF membrane have to comply with standards set for the manufacturing of same.

How Clean is Your Water?

This is a question that we all ask ourselves at some time or another. The importance of have clean water for drinking, bathing, washing dishes and our clothes is something that is important for our health and well being.

In this unprecedented time of COVID-19, we continue to keep your safety and health at the forefront – so all of us have clean water for drinking, washing our hands, and helping prevent the spread of the corona-virus.

Do you have any problems  of your Water?
Water Polluted or  Water Shortage ?

shortage water

Water is life

Confronting water scarcity

Hinada always care about water and environment

Devoting all our energy to offer the satisfying solution of your clean water problem

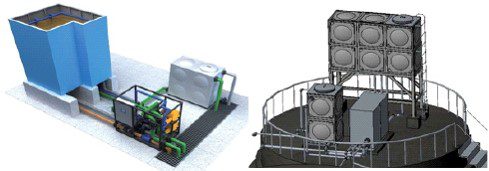

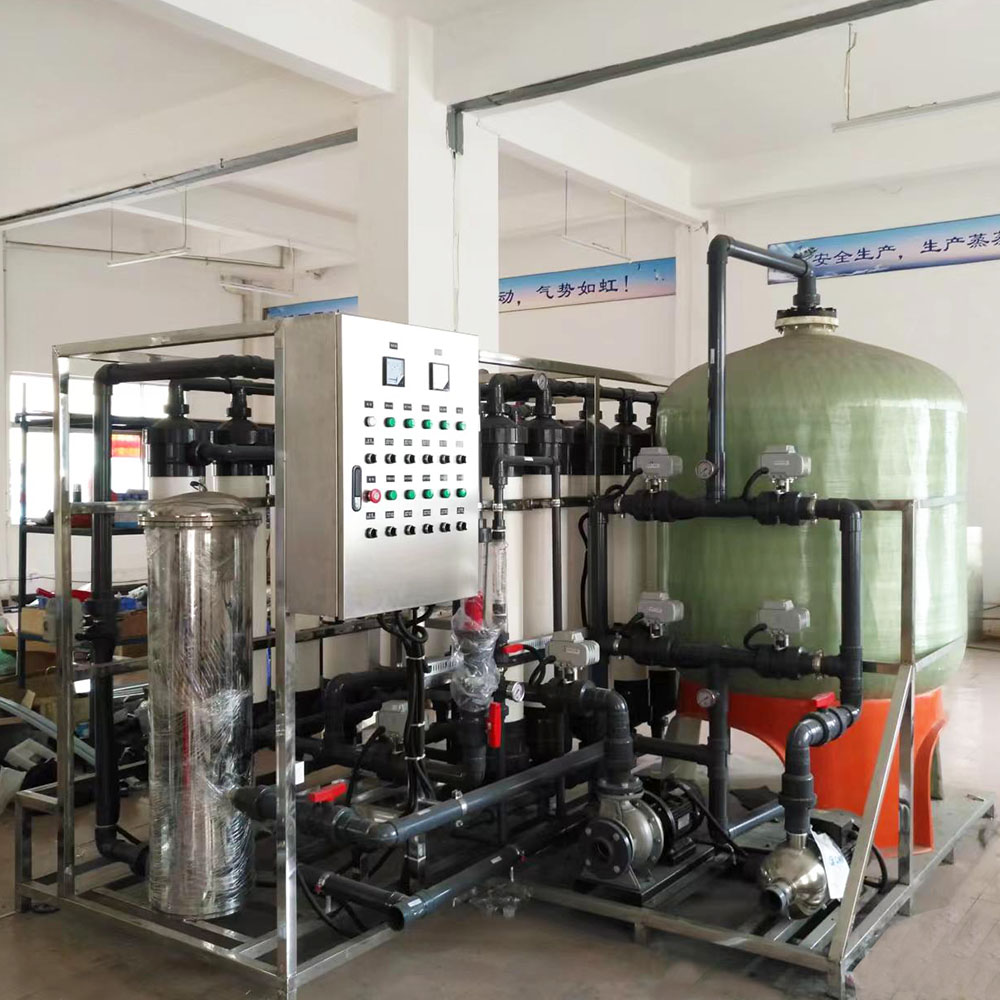

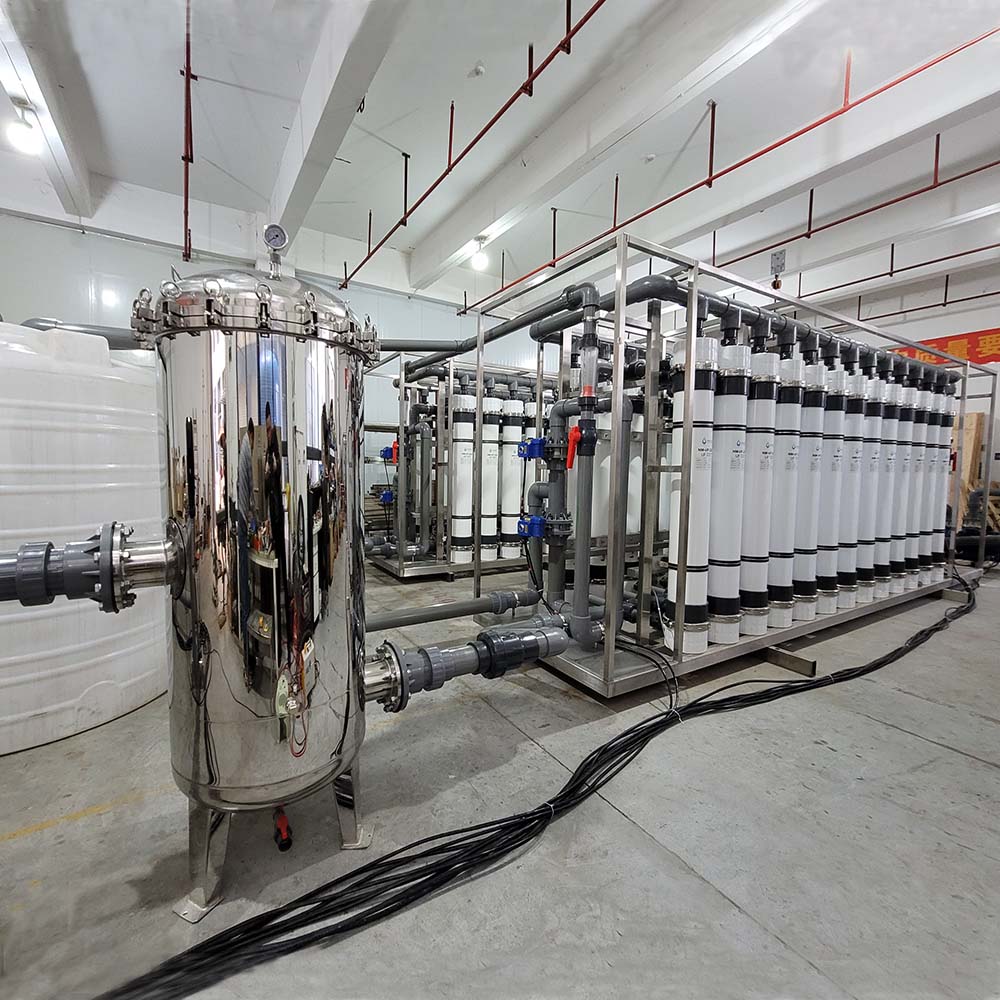

UF Technology (Potable Clean Water UF System in Container Drinking Application )

Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.

With over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.

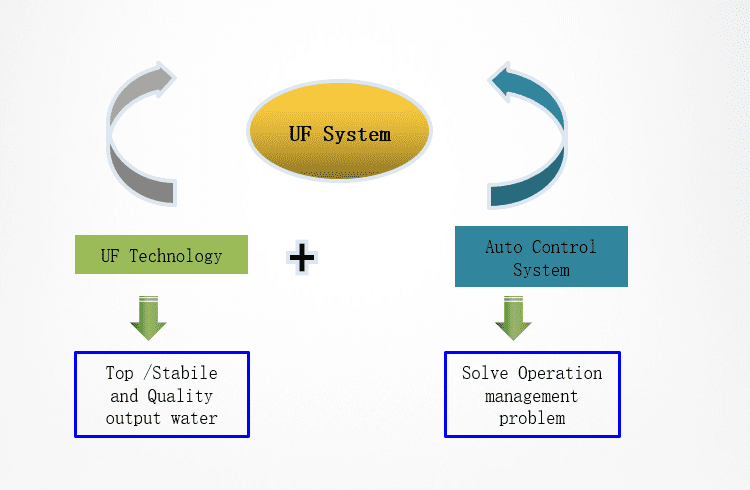

Key Feature of the UF Technology

♦  Feature 1:

Safe, affordable and sustainable Clean Water UF Technology

High quality effluent, Turbidity of output water: ≤ 0.2NTU

Suspended Matter >2um, 100% removal

♦  Feature 2:

Lower footprint /Space

Infrequent cleaning (Backwash 5 minutes / 3 hours; Chemical clean 1  time /Year )

Easy operation ( Automatically controlling), Easy assembly

♦  Feature 3:

Low energy cost,  power consumption around: 0.3kw / 1000Liters water

♦  Feature 4:

No dosing system, no chemicals, no pollution

♦  Feature 5:

Automatically Controlling + Touch Screen + Internet

The Specification of Packaged Drinking Water System:

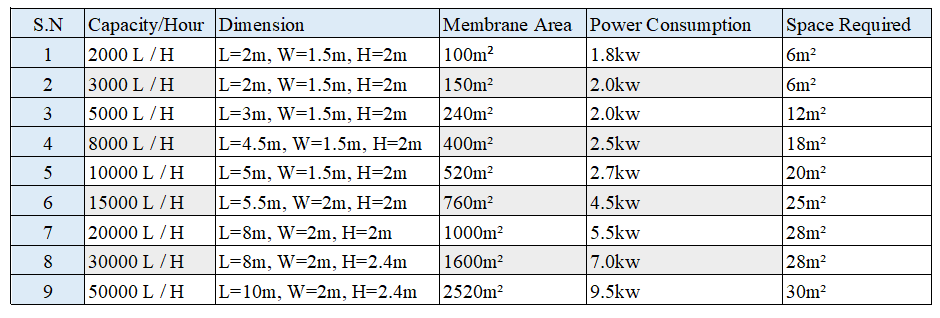

Portable UF Plant specification

Further Information please contact with us.

UF Technology

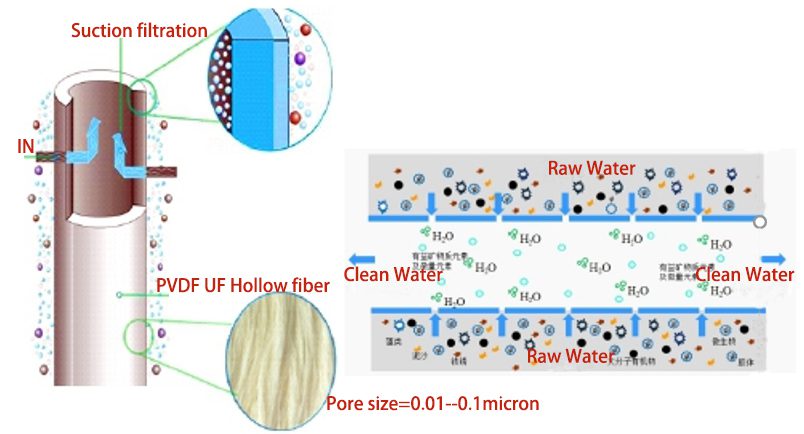

U ltrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron.  Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules

UF Application (Potable Clean Water UF System in Container Drinking Application )
It can be widely apply to filtration river water, underground well water, lake water for house-hold or drinking purpose.

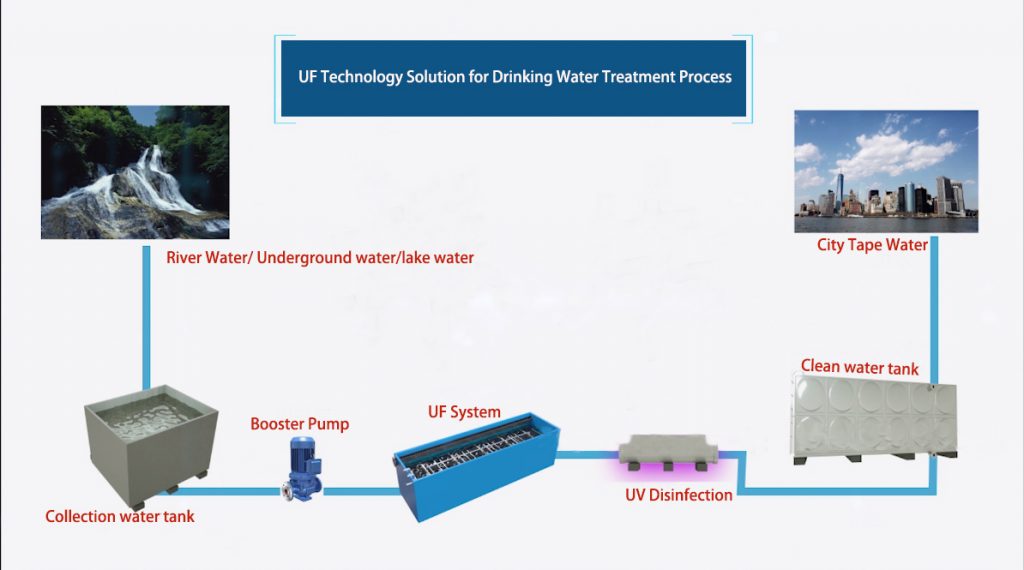

UF Process for drinking water

UF Technology for Drinking Water Solution:

  • 1).   Safe, affordable and sustainable Clean Water
  • 2).   High quality effluent, Turbidity of output water: ≤ 0.2NTU
  • 3).   Lower footprint /Space
  • 4).  Infrequent cleaning (Backwash 5 minutes / 3 hours; Chemical clean 1  time /Year
    5).  Easy operation ( Automatically controlling)

We are the manufacturer of Potable Clean Water UF System , we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements
