Home Containerized MBR System

10 m3/Day Containerized MBR System Wastewater Equipment

10 m3/Day Containerized MBR System Wastewater Equipment

Containerized MBR System for Wastewater Treatment, a modern, efficient way, plug-and-play, especially for remote area without municipal pipeline and WWTP, or new project requirement like seashore Hotel or factory.

Average Capacity : 10m3/Day

Material of Container : Carbon Steel + Anti-corrosion Painting; 5mm thickness of the Carbon Steel or SUS304.

Dimension :1.5×2.0×4.0m <W*H* L>

Power Consumption :2.5KW/H

Controlling : Automatic Running

Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.

Inquire Now

Containerized MBR System are designed for sewage treatment, and industrial wastewater treatment for different application such as for industry (food industry) or hotel, for remote communities without access to a municipal sewage system or refugee camps or ideal solution for tourist facilities and military camps, but also to improve existing treatment plants.

What is a Containerized MBR System and How Does It Work?
 Cotainerized MBR System combines Biological treatment + MBR Filtration System, for small capacity project, the tanks all integrated in container, that budget the pipeline and civil concrete tank cost, small footprint, easy installation and simple operation.

  • The Containerized MBR System consists of the following key process :
  • Manual Screen – removal of plastics, rags, and coarse material
  • Equalization Tank – buffers peak flows for consistent performance
  • Anaerobic Tank – Denitrification and Anaerobic biological treatment break down organic pollutants.
  • Aerobic Zone – Oxidation of organics using blower-fed aeration grids.
  • MBR Filtration – Solid-liquid separation via submerged MBR membranes, MBR membrane with 0.06micron pore size, that activated sludge keep inside biological system breeding and fast growing, then MLSS will reach around 6000----8000mg/L, that consume more contaminations.
  • Disinfection – sterilisation of bacteria, pathogens, viruses and coliforms via the use of UV and Chlorination
  • Sludge Management (optional)

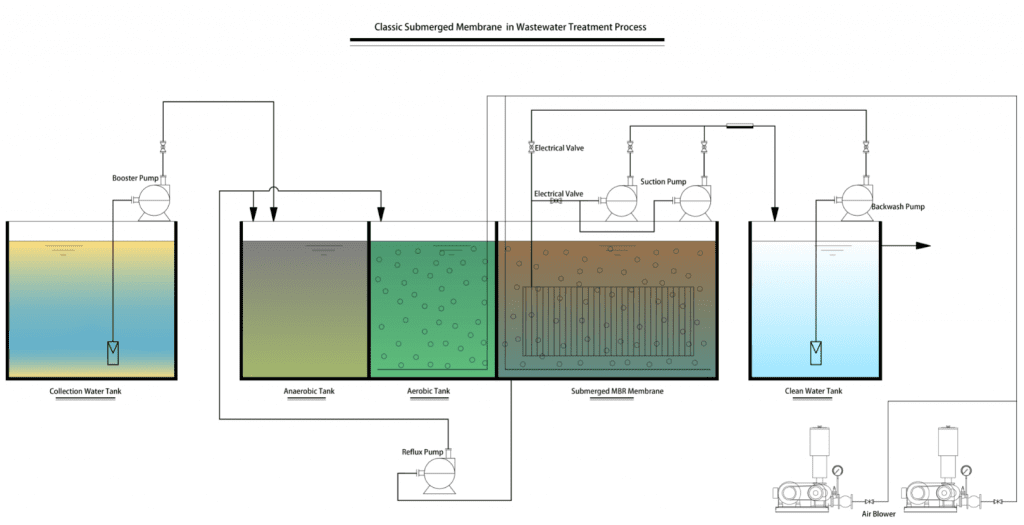

Containerized MBR System treatment process :

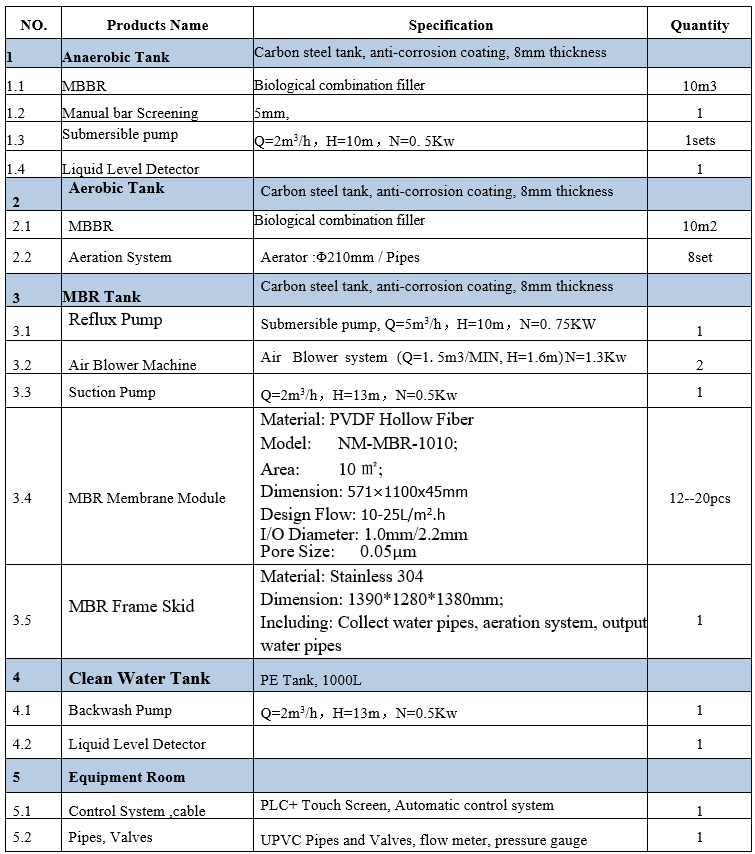

10 m3/Day Containered MBR System main component Included:

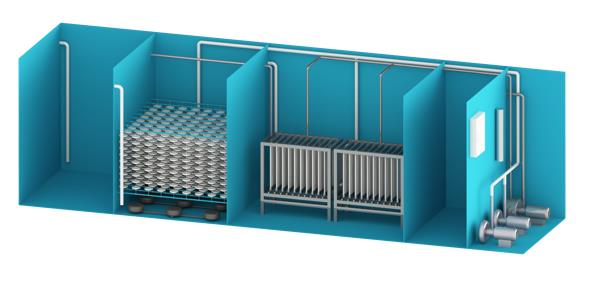

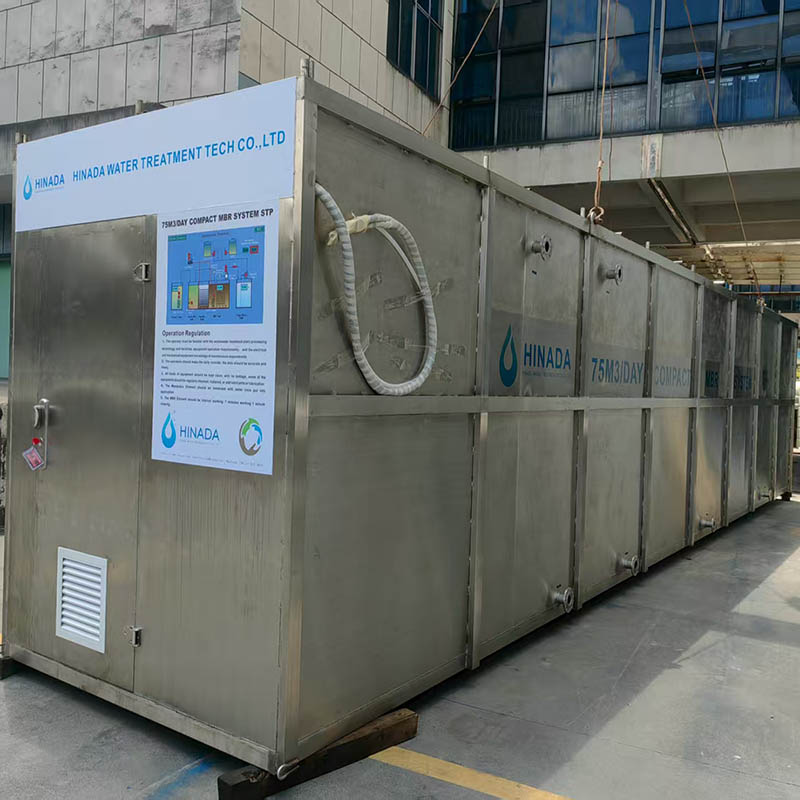

The Standard components photo for the mobile containerized MBR System as reference

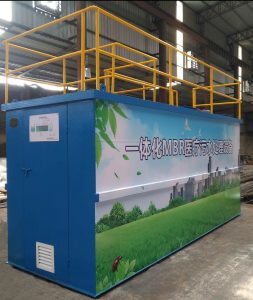

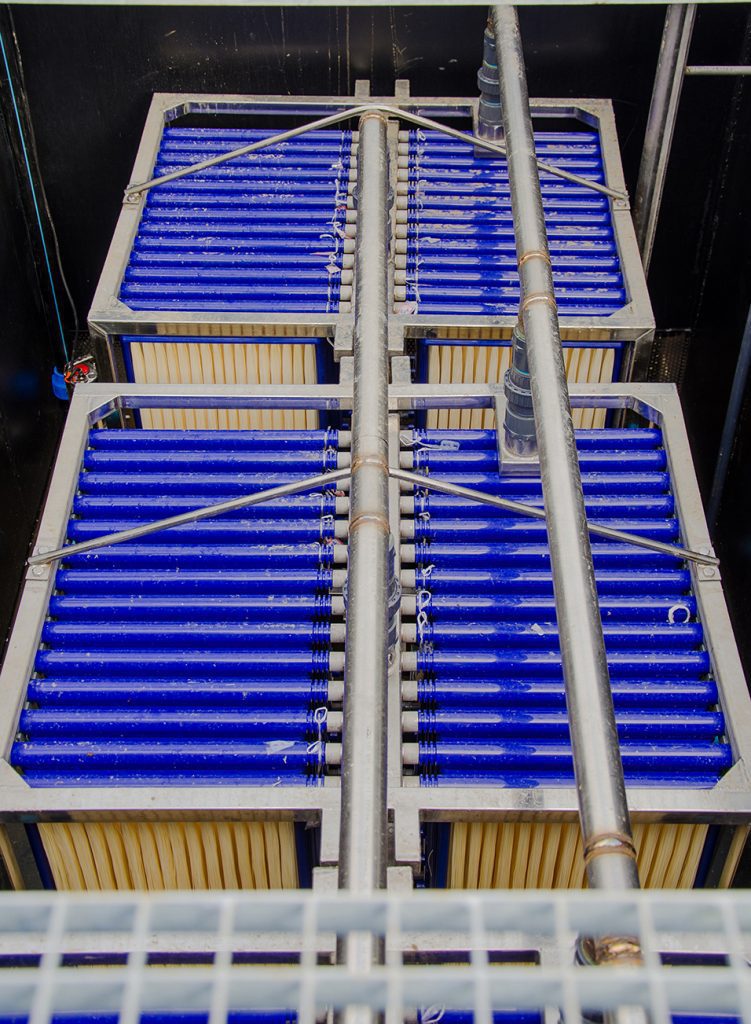

Submerged Membrane Bioreactor manufacturer Containered Wastewater Equipment MBR

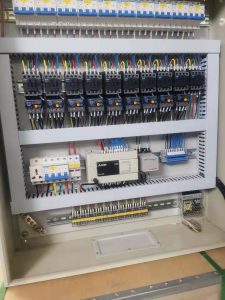

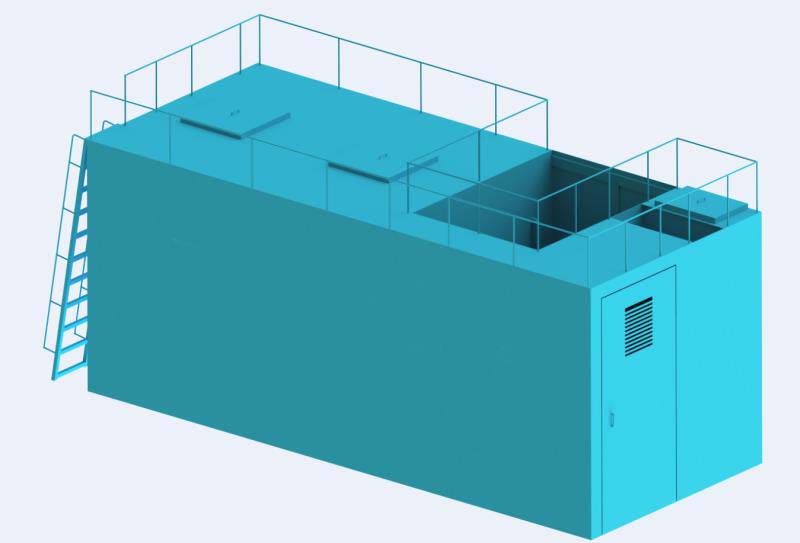

MBR Modular                                   Compact Tank ( Carbon steel + Coating )                     Control Panel



The advantages of mobile MBR wastewater plant:

  1. Budget savings,  it’s especially for small capacity project no pipeline cost and civil concrete tanks.
  2. Moveable for temporary use and Less Constructuion works
  3. High and stable output water Quality, Assembly it according to ISO standard and with top brand parts
  4. Fully automatic, easy operation and management
  5. Everything from one source provider
  6. Customerized wastewater treatment plant, according to your project requirement



Installation Support

Hinada offer manual instruction steps by steps and video support, drawing and if necesary, our engineer can go to project site for installation and commissioning support.



Our Service

1. We are the manufacturer of MBR Membrane, MBR System for waste water treatment, we can produce the products according to your requirements.

2. We Provides a full range of services , even small sewage treatment plant and water treatment equipment, sewage treatment plant from the design proposal, producing to installation and testing, even  after sale. We regard our customer as a long term business partner.
