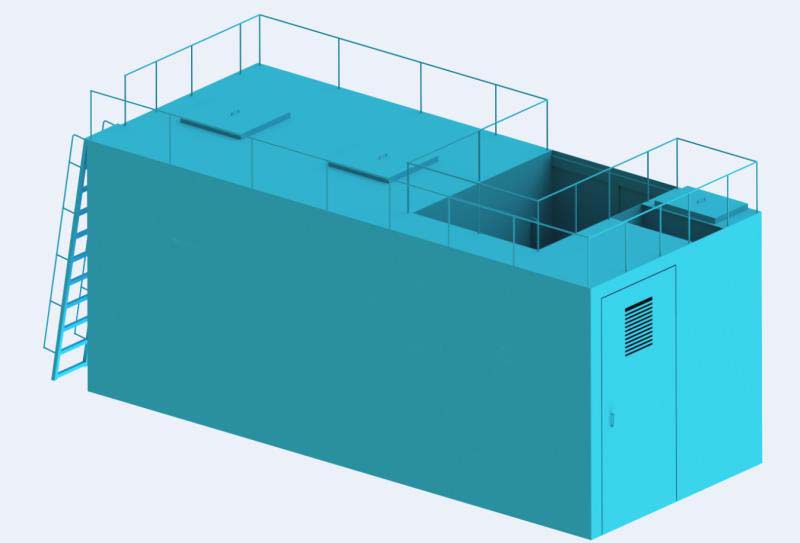

For resorts, hotels, and remote locations domestic wastewater or sewage treatment , the containerized MBR (Membrane Bioreactor) system is often the ideal and most practical solution. The core reason is that it delivers high-quality wastewater treatment and no need wastewater municipal pipeline or sewer with minimal on-site construction cost, low operational complexity. .

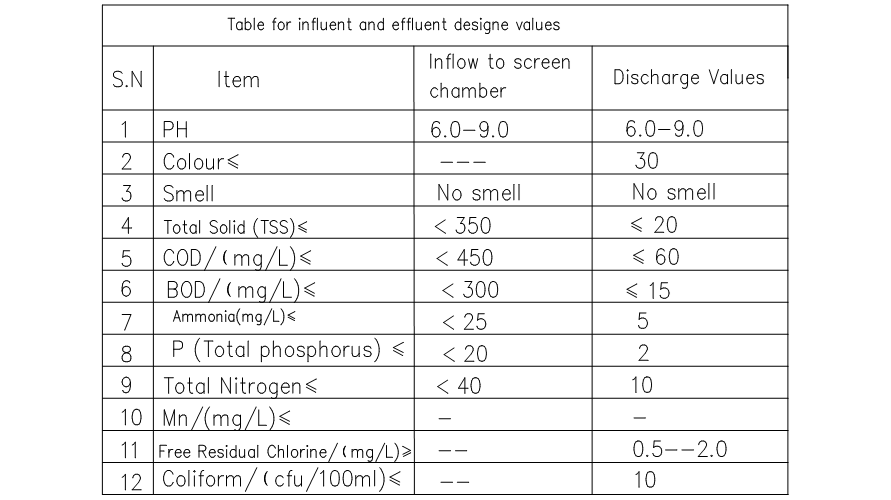

Influent and effluent values or equivalent sewage quality

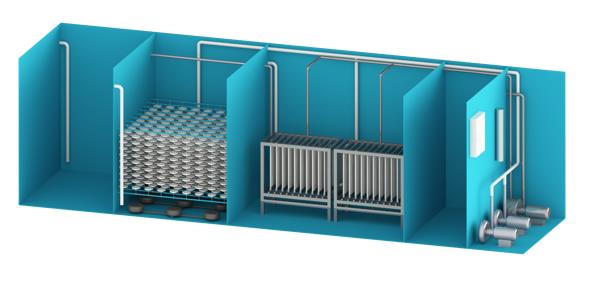

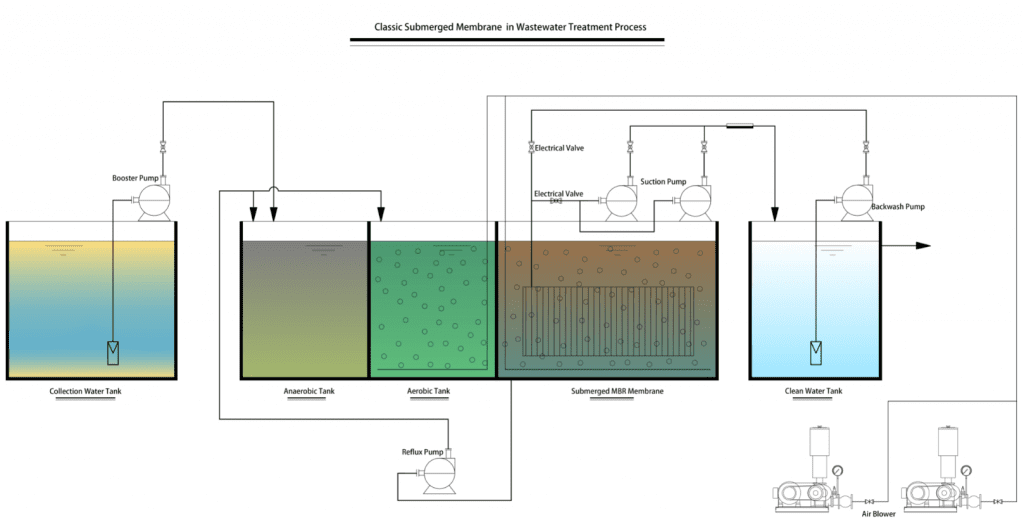

Containerized MBR System treatment process :

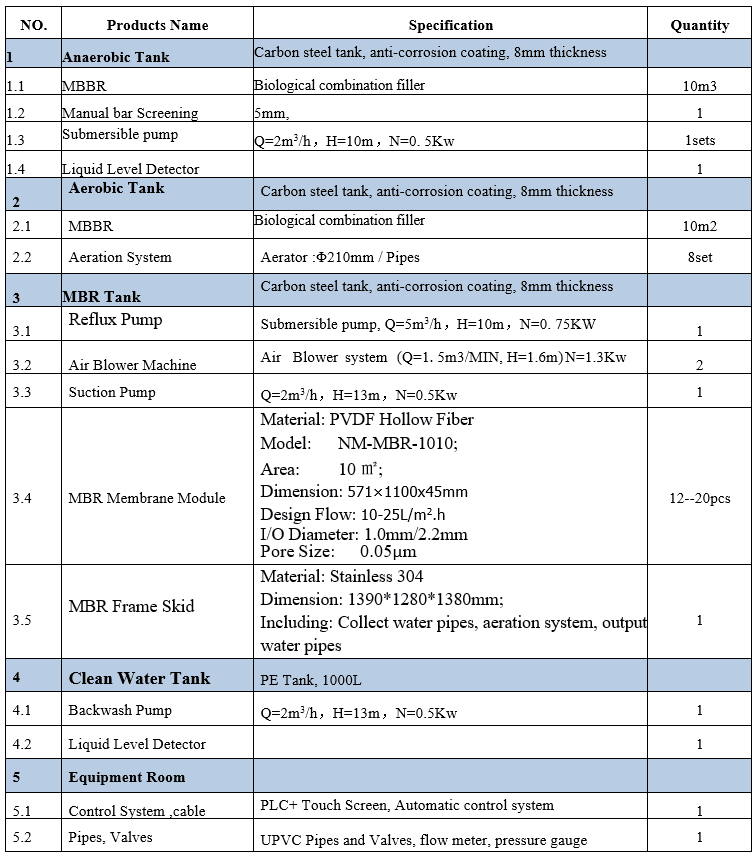

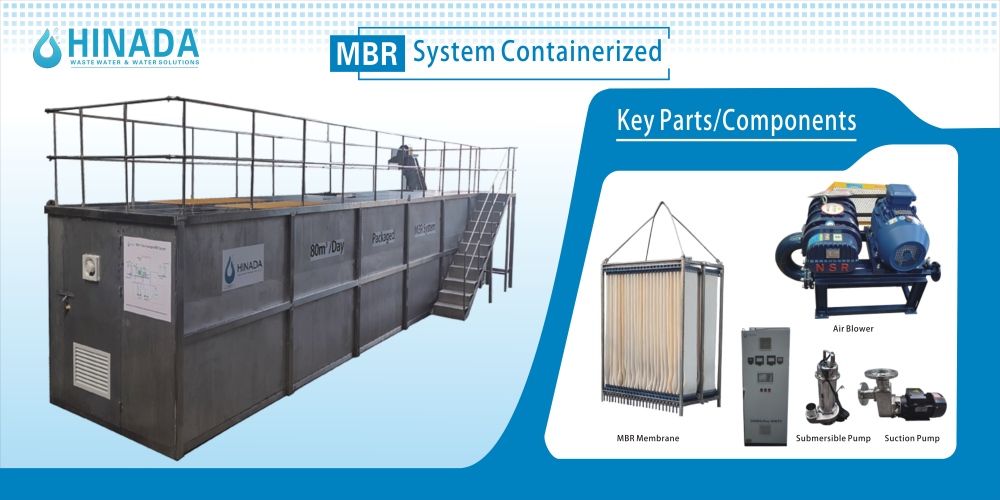

The Standard components for the mobile containerized MBR System
MBR System Operating Limits and Prohibited Substances
|
Parameter |
Unit |
Operating condition |
|
MLSS |
mg/L |
Not higher than 8,000 |
|
DO |
mg/L |
1.0 or more |
|
pH |
- |
5-10 |
|
Liquid temperature |
°C |
Not higher than 40 |
|
Fibrous material |
|
Must be removed at fine screen prior to MBR |
|
Fat, oil and grease (FOG) |
mg/L |
< 50 (at the inlet of biological treatment) |
|
Mineral oil |
|
Must be reduced to no more than trace levels |
Table 1.8 Operating Limits
Our Service
1. In short, for resorts, hotels, and remote areas, the containerized MBR System is not just a wastewater treatment option—it is often the most reliable, cost-effective, and environmentally responsible choice available
2. We Provides a full range of services , even small sewage treatment plant and water treatment equipment, sewage treatment plant from the design proposal, producing to installation and testing, even after sale. We regard our customer as a long term business partner.

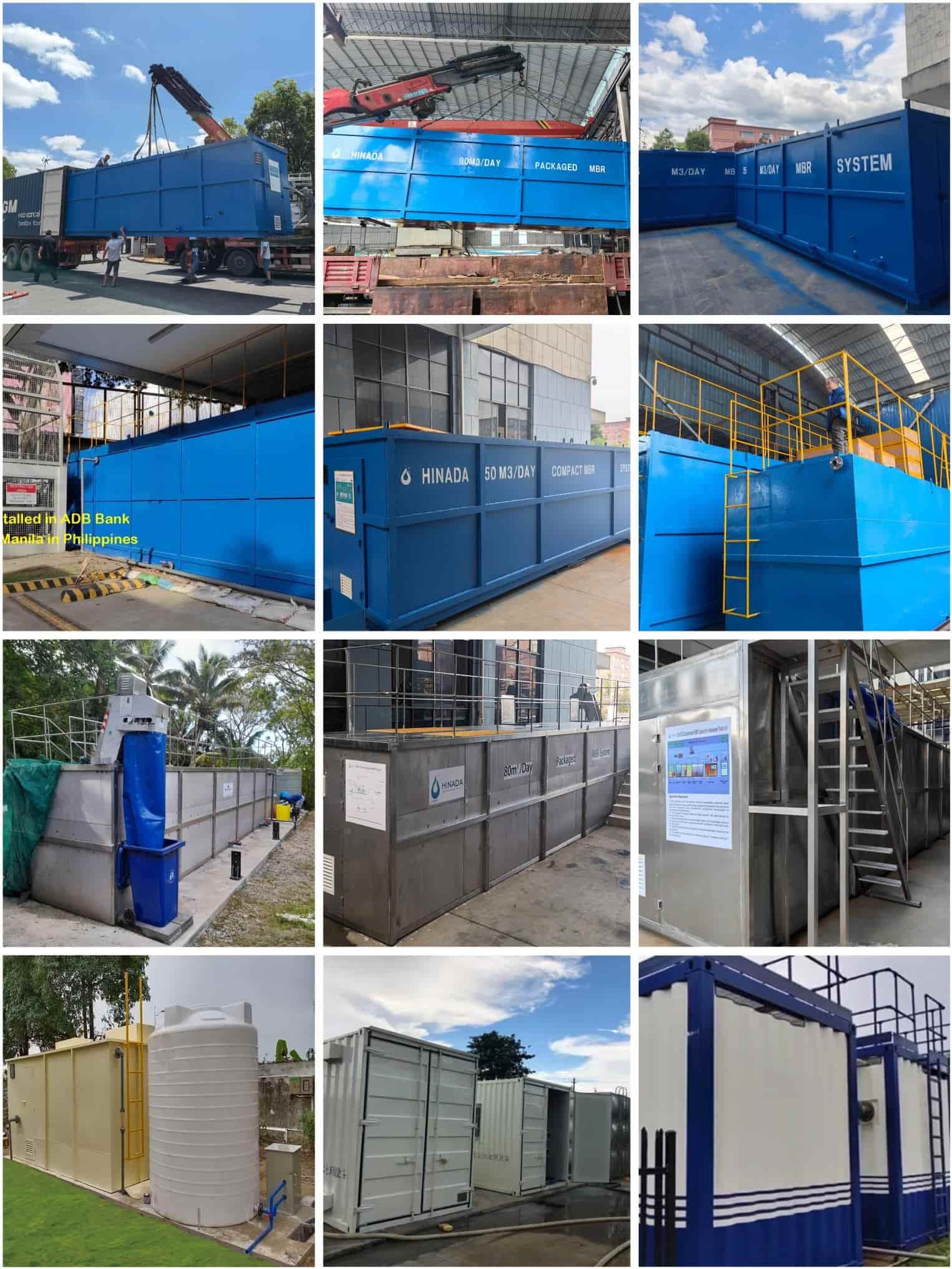

3. Equipment and project sample as your reference.
Surface Metal wastewater or equivalent or electroplating industrial wastewater treatment, it's need to removing heavy metals like Ni (Nickle removing ) and Cu (Copper removing ) and other contaminants high COD / BOD. Average Capacity : 120m3/Day Material of Container : SUS304 Material Tank + .Epoxy +Fluorocarbon top painting Dimension :2.3×2.5×11.5m <W*H* L> * 2 set Power Consumption :7.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.More details of similar industrial wastewater treatment solution, please contact with us
Read More

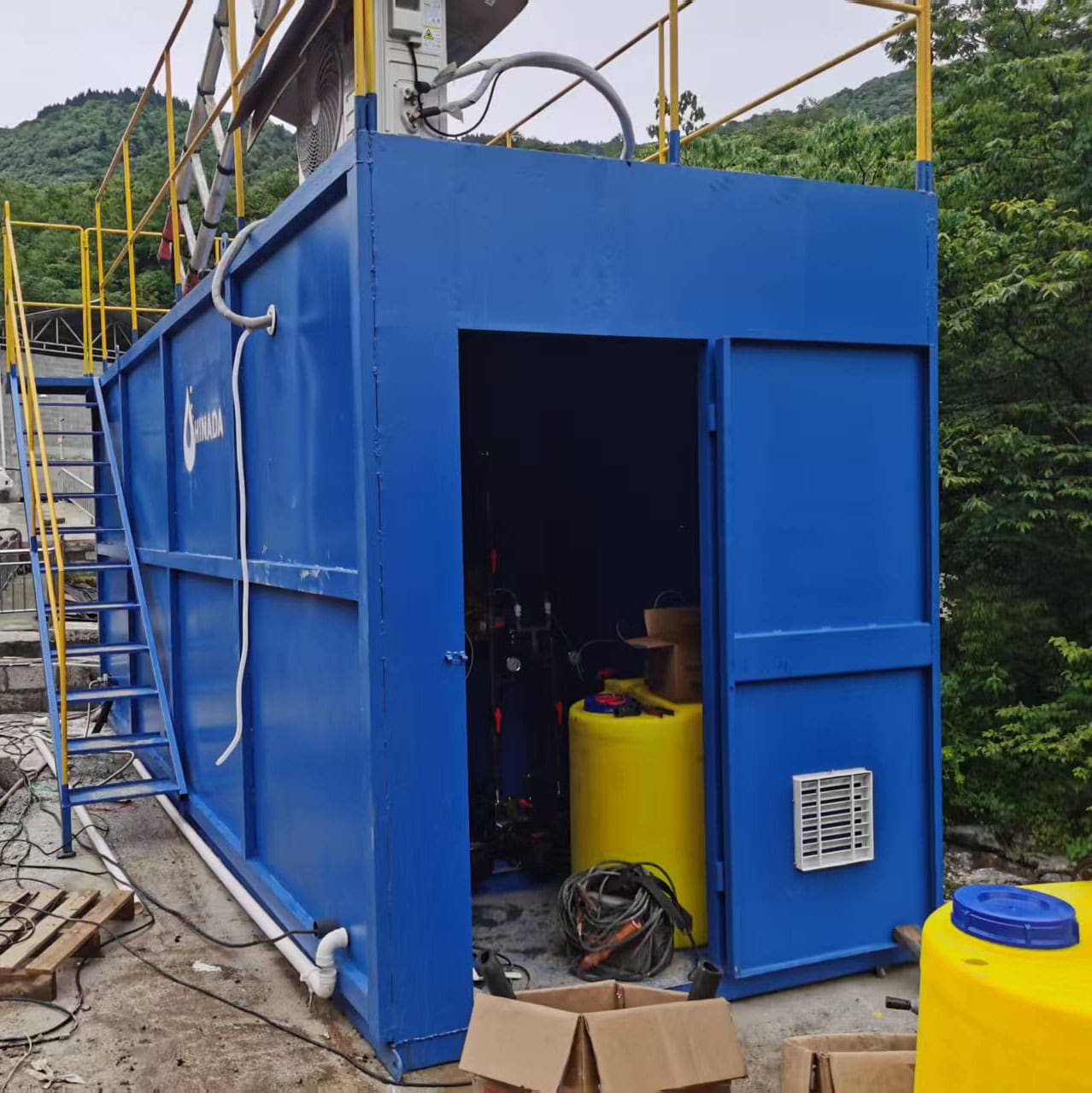

Containerized MBR System for Wastewater Treatment, a modern, efficient way, plug-and-play, especially for remote area without municipal pipeline and WWTP, or new project requirement like seashore Hotel or factory. Average Capacity : 10m3/Day Material of Container : Carbon Steel + Anti-corrosion Painting; 5mm thickness of the Carbon Steel or SUS304. Dimension :1.5×2.0×4.0m <W*H* L> Power Consumption :2.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
The parameters of this MBR System: Average Capacity : 80m3/Day Material of Container : SUS304; 3mm thickness Dimension :2.3×2.5×11.5m <W*H* L> Power Consumption :6.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
Hotel Wastewater Treatment System Average Capacity : 5—50m3/Day Material of Container : Carbon Steel + Anti-corrosion Painting; 6mm thickness of the Carbon Steel / or the SUS304. Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
20m3/Day MBR System in Container for wastewater treatment, input water quality: Domestic residual Sewage wastewater or sewage for irrigation purpose or discharge. This packaged wastewater system in container no included the septic tank, oil separator, collection wastewater tank, clean water tank The designed average capacity will be 20m³/Day, peak capacity less than around:24m³/day, 24hours working per day, because of MBR interval working feature, the calculation flow rate as 1m³/hour Material of Container : Carbon Steel + Anti-corrosion Painting; 6mm thickness of the Carbon Steel or SUS304 Material. Dimension :1.5×2.0×4.8m <W*H* L> Power Consumption :3.5KW/H Treatment Process : Manual Bar Screen + A/O Biological treatment + MBR Filtration Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More

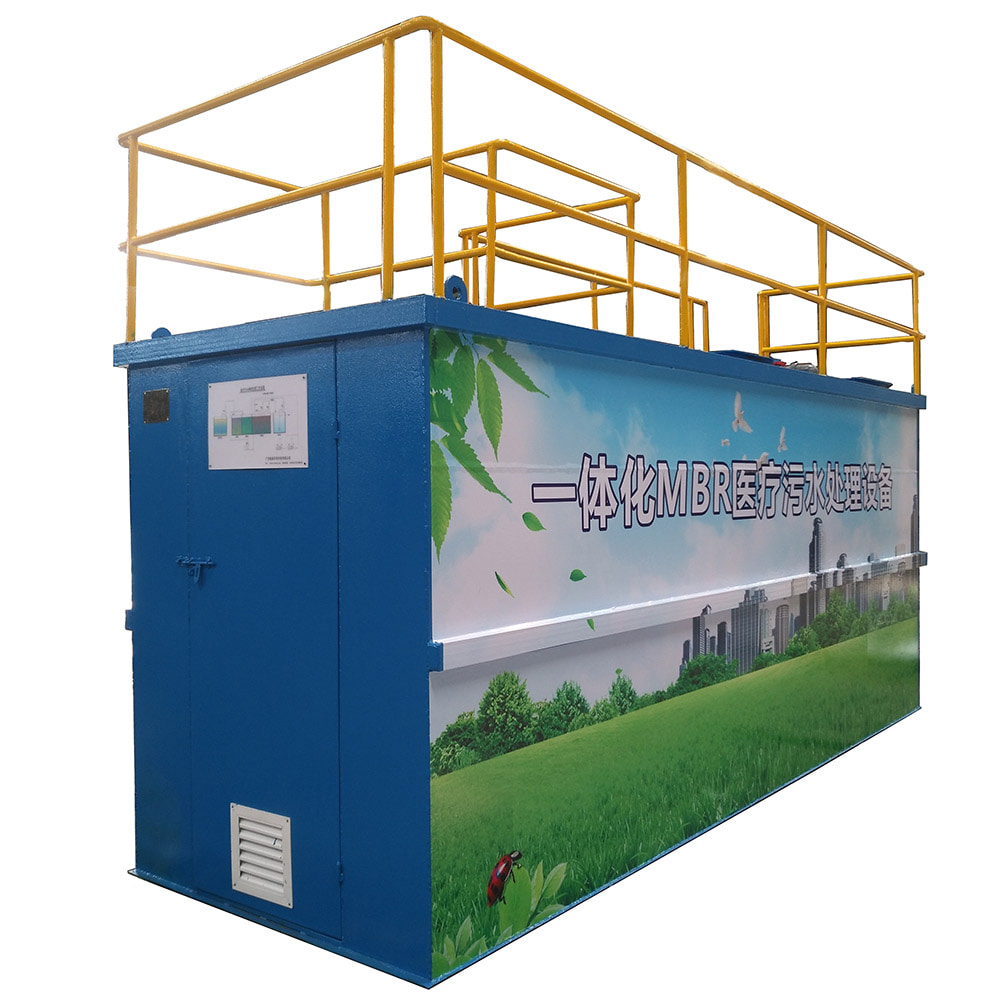

Mobile Containerized MBR System for Wastewater treatment is ideal choose for resorts, hotels or remote areas, The key issues always from economics consideration that budget on-site civil concrete tank cost and it delivers high-quality wastewater permeate, low operational cost. Average Capacity : 10----200m3/Day (Better less than 200m3/day) Material of Container : Carbon Steel + Anti-corrosion Painting; 8mm thickness of the Carbon Steel or SUS304 Controlling : Automatic Running + PLC + Touch Screen Output Water Quality : Meet the international standards, for discharge or reuse in irrigation or recyce application.
Read More
