Mobile Containerized MBR System for Wastewater treatment is ideal choose for resorts, hotels or remote areas, The key issues always from economics consideration that budget on-site civil concrete tank cost and it delivers high-quality wastewater permeate, low operational cost.
Average Capacity : 10----200m3/Day (Better less than 200m3/day)
Material of Container : Carbon Steel + Anti-corrosion Painting; 8mm thickness of the Carbon Steel or SUS304
Controlling : Automatic Running + PLC + Touch Screen
Output Water Quality : Meet the international standards, for discharge or reuse in irrigation or recyce application.
For resorts, hotels, and remote locations without municipal pipeline and WWTP, the containerized MBR (Membrane Bioreactor) system is often the ideal choose and most practical solution. The key issues always from economics consideration that budget on-site civil concrete tank cost and it delivers high-quality wastewater permeate, low operational cost.
Advantages of Choose Containerized MBR System:
1. No need the Pipeline or Municipal Sewers
Most of WWTP, the municipal pipeline or sewers always the big cost of whole WWTP Project, and Resorts, hotels, and remote facilities are often built in scenic or isolated areas—mountain sides, coastlines, or rural locations—where municipal sewer lines do not exist.
And Containerized MBR is a self-contained. It treats all wastewater on-site, eliminating the need for sewer connections.
2. Really Plug-and-Play
Containerized MBR systems all standards with automatically controlled, highly automated with PLC controls, which are pre-assembled and tested before loading, in project site only need connection to power, wastewater inlet, and treated water outlet. Installation takes few days, not months.
3. Footprint less – Saves Valuable Land
MBR technology replace large clarifier tanks, and more important, MBR membrane with 0.06micron pore size, that activated sludge keep inside biological system breeding and fast growing, then MLSS will reach around 6000----8000mg/L, that consume more contaminations. Then biological tanks also smaller.
4. MBR Effluent with features of High-Quality and stable

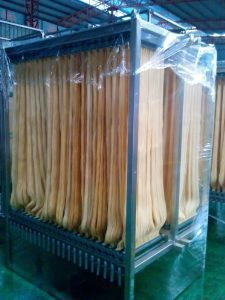

Hinada top brand MBR Membrane with uniformity and good hydrophily that make sure good and stable effluent.

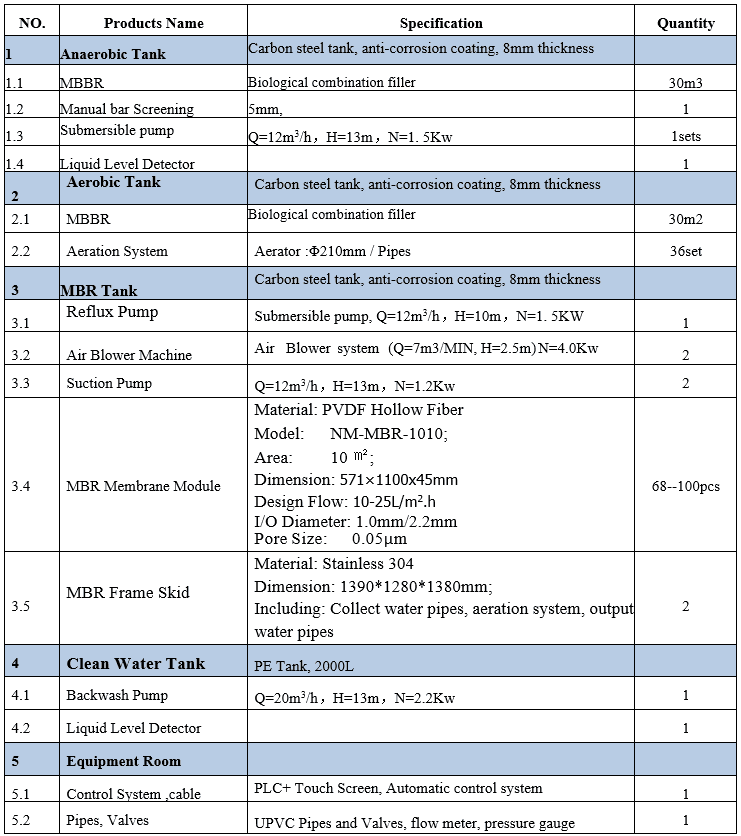

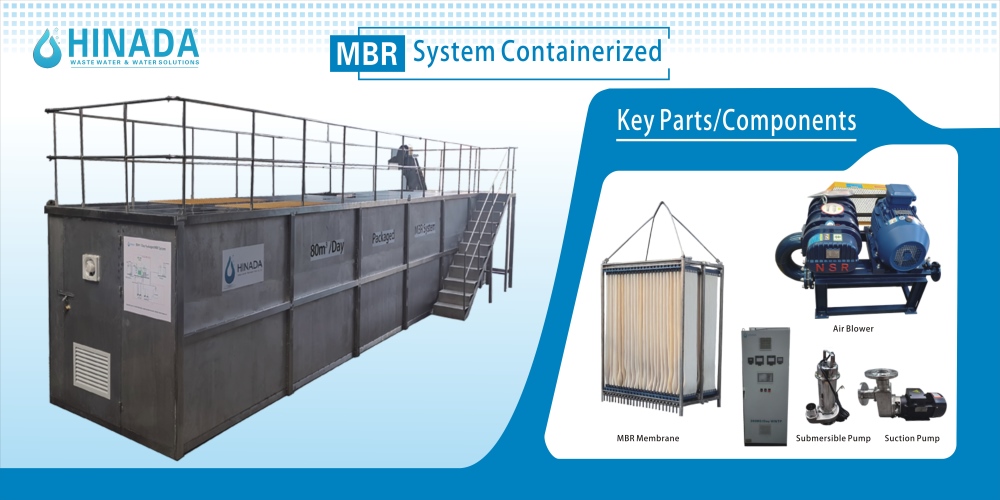

The Standard components for the mobile containerized MBR System

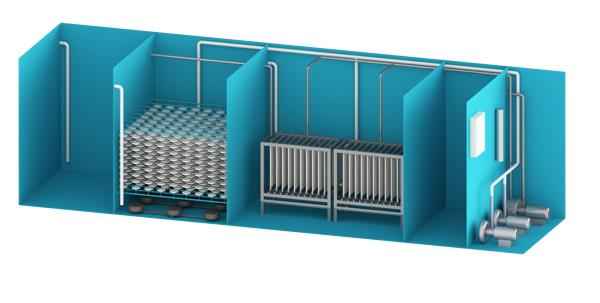

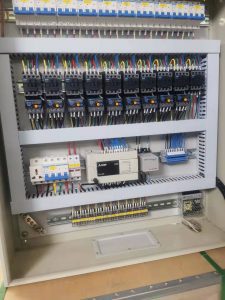

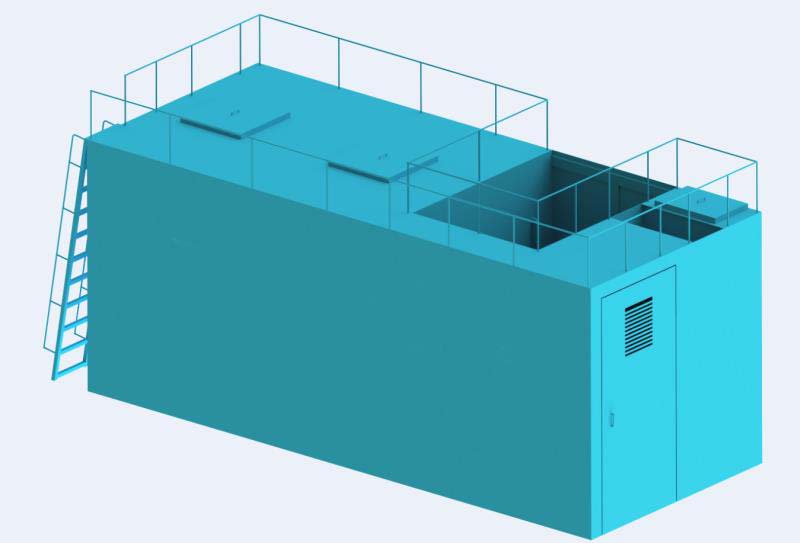

MBR Modular Compact Tank ( Carbon steel + Coating ) Control Panel
In short, for resorts, hotels, and remote areas, a containerized MBR is not just a wastewater treatment option—it is often the most reliable, cost-effective, and environmentally responsible choice available
The Benifits of Containerized MBR Plant:
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
Installation and Commission
Hinada offer manual instruction steps by steps and video support, drawing and if necesary, our engineer can go to project site for installation and commissioning support.
Our Service
1. We are the manufacturer of MBR Membrane, MBR System for waste water treatment, we can produce the products according to your requirements.
2. We Provides a full range of services , even small sewage treatment plant and water treatment equipment, sewage treatment plant from the design proposal, producing to installation and testing, even after sale. We regard our customer as a long term business partner.

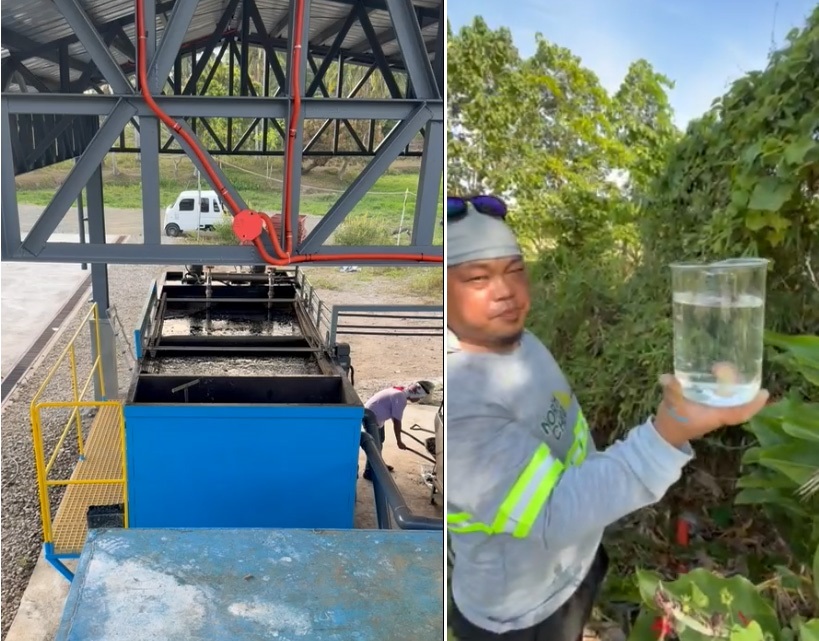

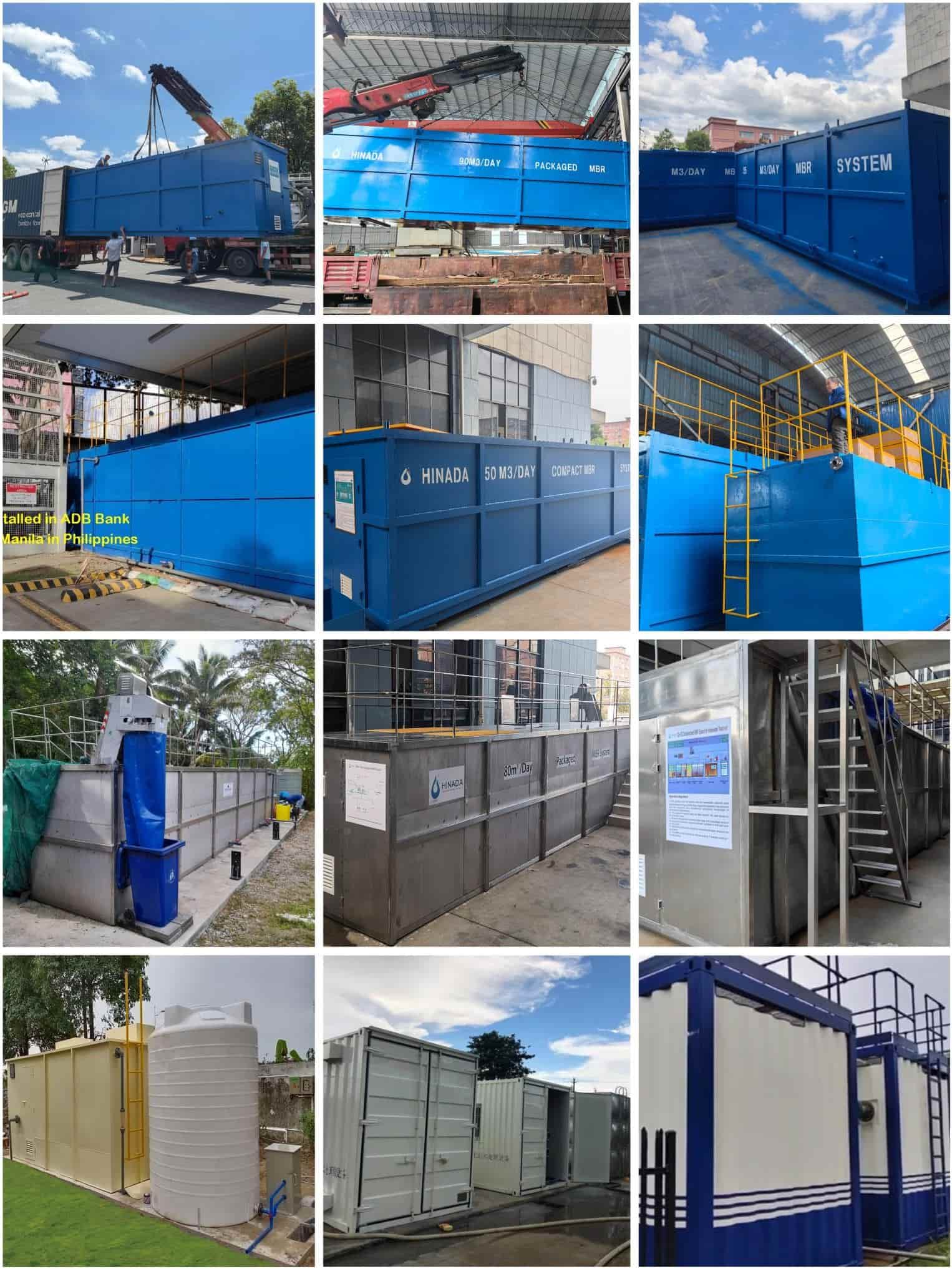

3. Equipment and project sample as your reference.
Surface Metal wastewater or equivalent or electroplating industrial wastewater treatment, it's need to removing heavy metals like Ni (Nickle removing ) and Cu (Copper removing ) and other contaminants high COD / BOD. Average Capacity : 120m3/Day Material of Container : SUS304 Material Tank + .Epoxy +Fluorocarbon top painting Dimension :2.3×2.5×11.5m <W*H* L> * 2 set Power Consumption :7.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.More details of similar industrial wastewater treatment solution, please contact with us
Read More
Containerized MBR System for Wastewater Treatment, a modern, efficient way, plug-and-play, especially for remote area without municipal pipeline and WWTP, or new project requirement like seashore Hotel or factory. Average Capacity : 10m3/Day Material of Container : Carbon Steel + Anti-corrosion Painting; 5mm thickness of the Carbon Steel or SUS304. Dimension :1.5×2.0×4.0m <W*H* L> Power Consumption :2.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
The parameters of this MBR System: Average Capacity : 80m3/Day Material of Container : SUS304; 3mm thickness Dimension :2.3×2.5×11.5m <W*H* L> Power Consumption :6.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
Hotel Wastewater Treatment System Average Capacity : 5—50m3/Day Material of Container : Carbon Steel + Anti-corrosion Painting; 6mm thickness of the Carbon Steel / or the SUS304. Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More

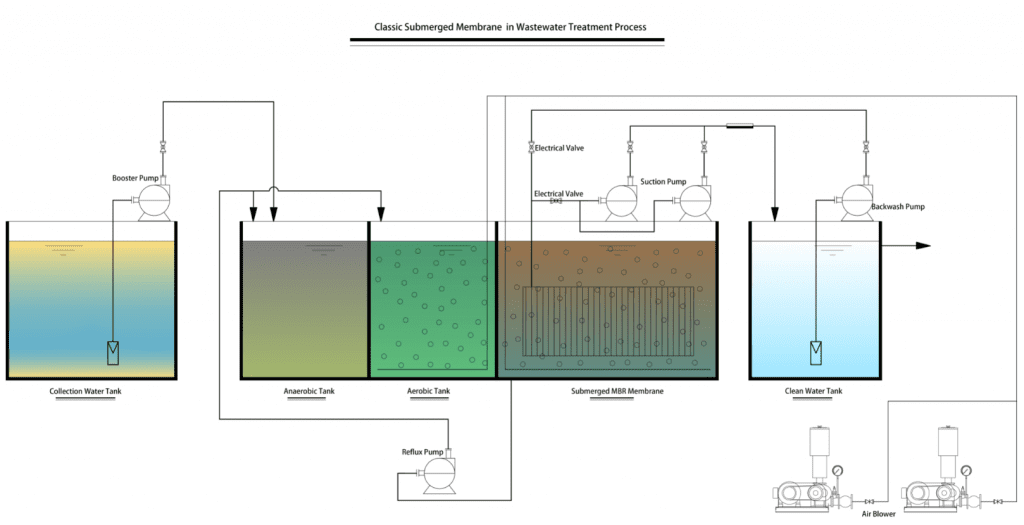

20m3/Day MBR System in Container for wastewater treatment, input water quality: Domestic residual Sewage wastewater or sewage for irrigation purpose or discharge. This packaged wastewater system in container no included the septic tank, oil separator, collection wastewater tank, clean water tank The designed average capacity will be 20m³/Day, peak capacity less than around:24m³/day, 24hours working per day, because of MBR interval working feature, the calculation flow rate as 1m³/hour Material of Container : Carbon Steel + Anti-corrosion Painting; 6mm thickness of the Carbon Steel or SUS304 Material. Dimension :1.5×2.0×4.8m <W*H* L> Power Consumption :3.5KW/H Treatment Process : Manual Bar Screen + A/O Biological treatment + MBR Filtration Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
Mobile Containerized MBR System for Wastewater treatment is ideal choose for resorts, hotels or remote areas, The key issues always from economics consideration that budget on-site civil concrete tank cost and it delivers high-quality wastewater permeate, low operational cost. Average Capacity : 10----200m3/Day (Better less than 200m3/day) Material of Container : Carbon Steel + Anti-corrosion Painting; 8mm thickness of the Carbon Steel or SUS304 Controlling : Automatic Running + PLC + Touch Screen Output Water Quality : Meet the international standards, for discharge or reuse in irrigation or recyce application.
Read More
