Designed to convert high TDS saline content to drinking water, these systems use high quality RO reverse osmosis brackish water desalination membranes. These systems use our proven technology to give reliable performance and meet the demanding requirements.
3000KLPD Industrial RO System for Drinking Water Purification Includes :
* Feed Water Pump
* Pretreatment Filter ( Multi-media filter or Carbon Filter or Softener with Filter Controller )
* Cartridge filter
* High pressue pump

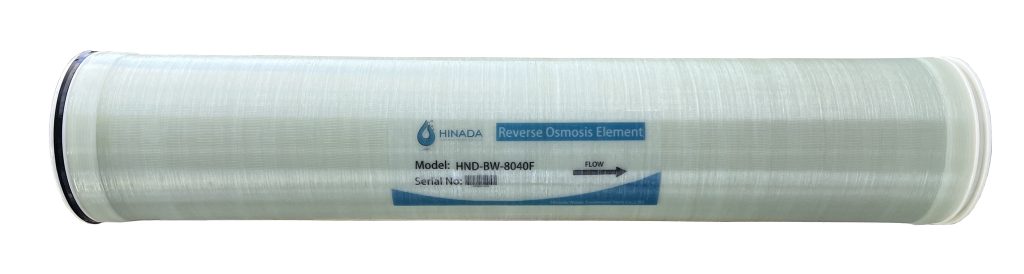

* RO Membrane HND-BW8040F
* Electrical Control Panel
* Conductivity Meter and Pressure Gauges, Flow Meters
* RO System Racking, PVC & Stainless Steel Pipes
| 3000KLPH RO System Operating Limit | RO Membrane Specifications | |||
| Recovery | 60—75% | Type | TFC (Thin Film Composite) | |
| Operating Temperature | ≤50℃ | Material | PA (Polyamide) | |
| Operating Pressure | ≤20Bar | Charge | Negative | |
| Electrical Power | Optional | Configuration | Spiral-Wound, FRP Wrapping | |
| Max. SDI (15 min) | ≤5.0 | Membrane Size | Diameter 8”x Length 40” | |
| pH range | 3–10 | Effective Area | 37m² | |
| Feed Max. Turbidity | ≤1.0 NTU | Flow rate | 38m³/Day | |
| Chlorine Concentration | ≤0.1pm | Rejection (%) | 98—99% | |

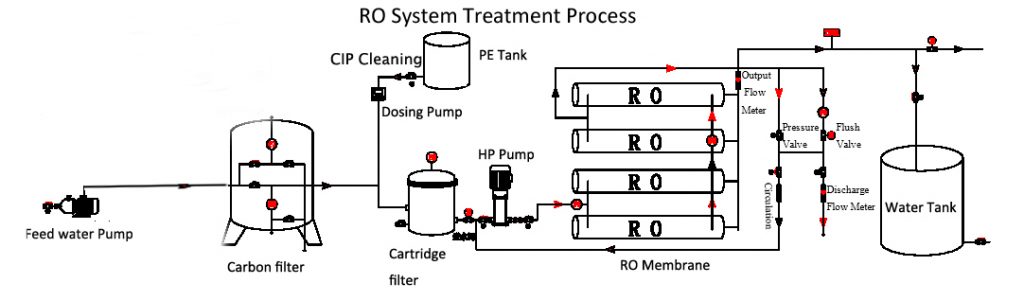

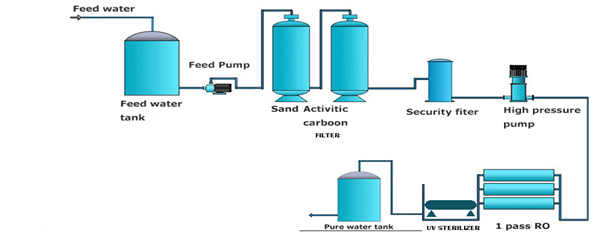

The Water Treatment Process:

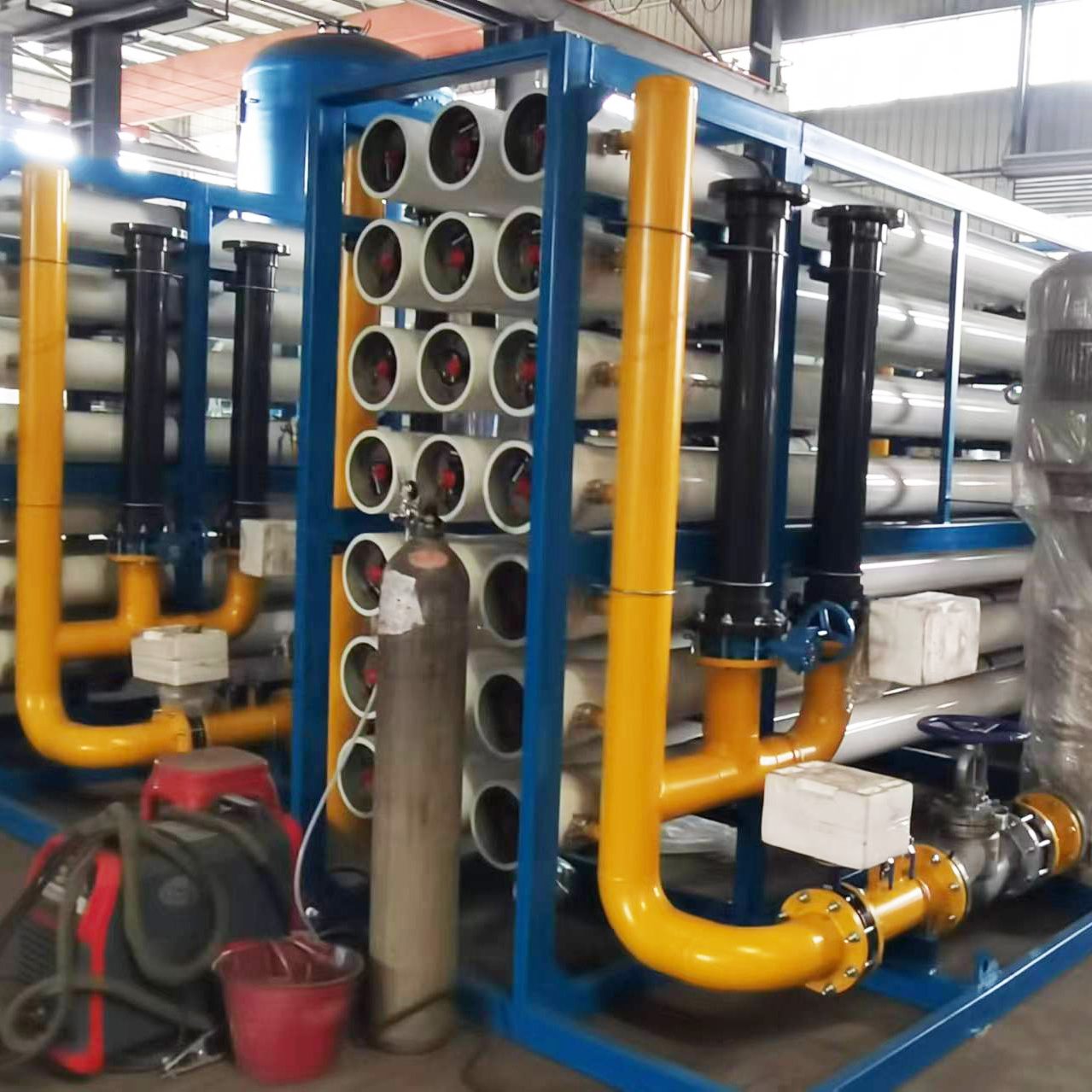

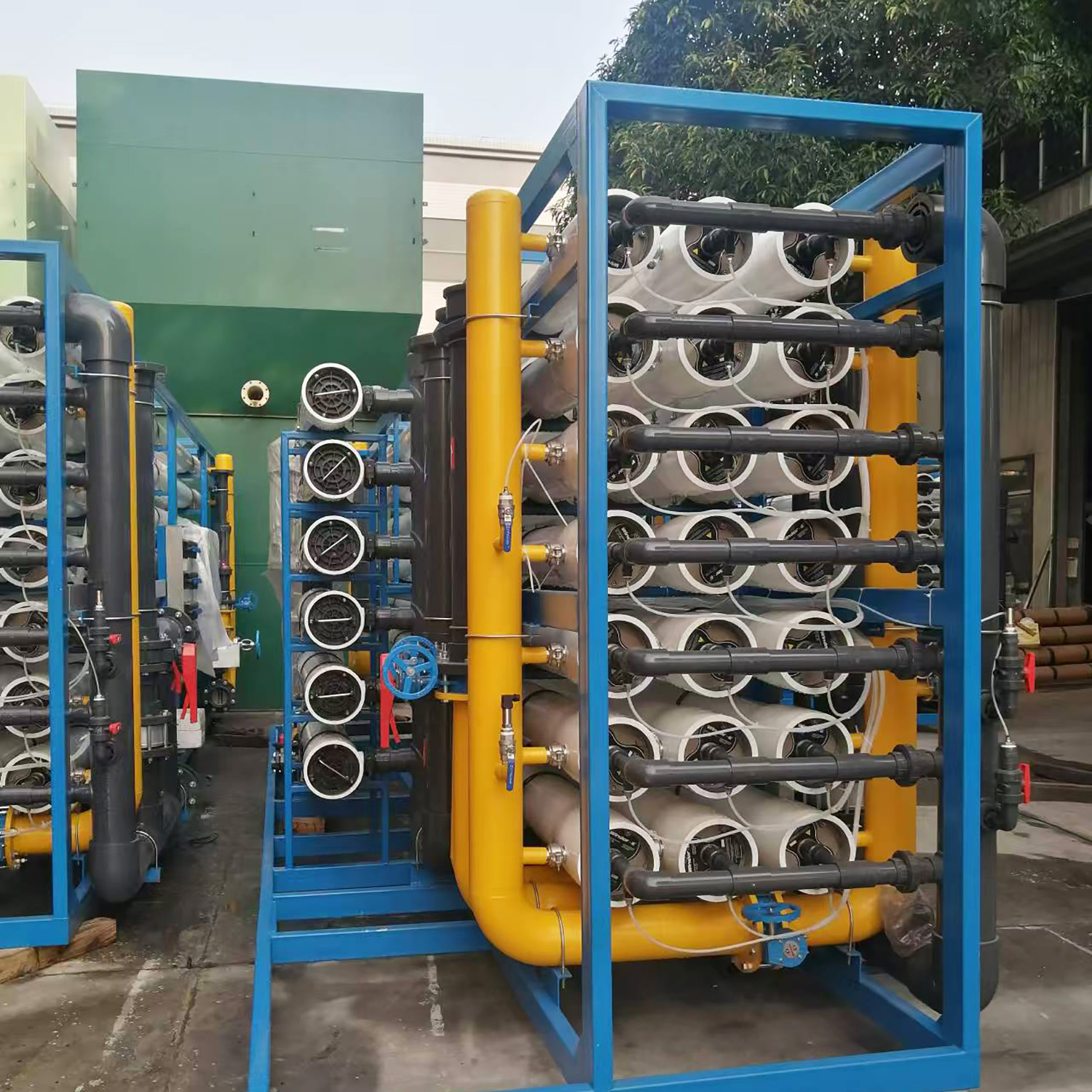

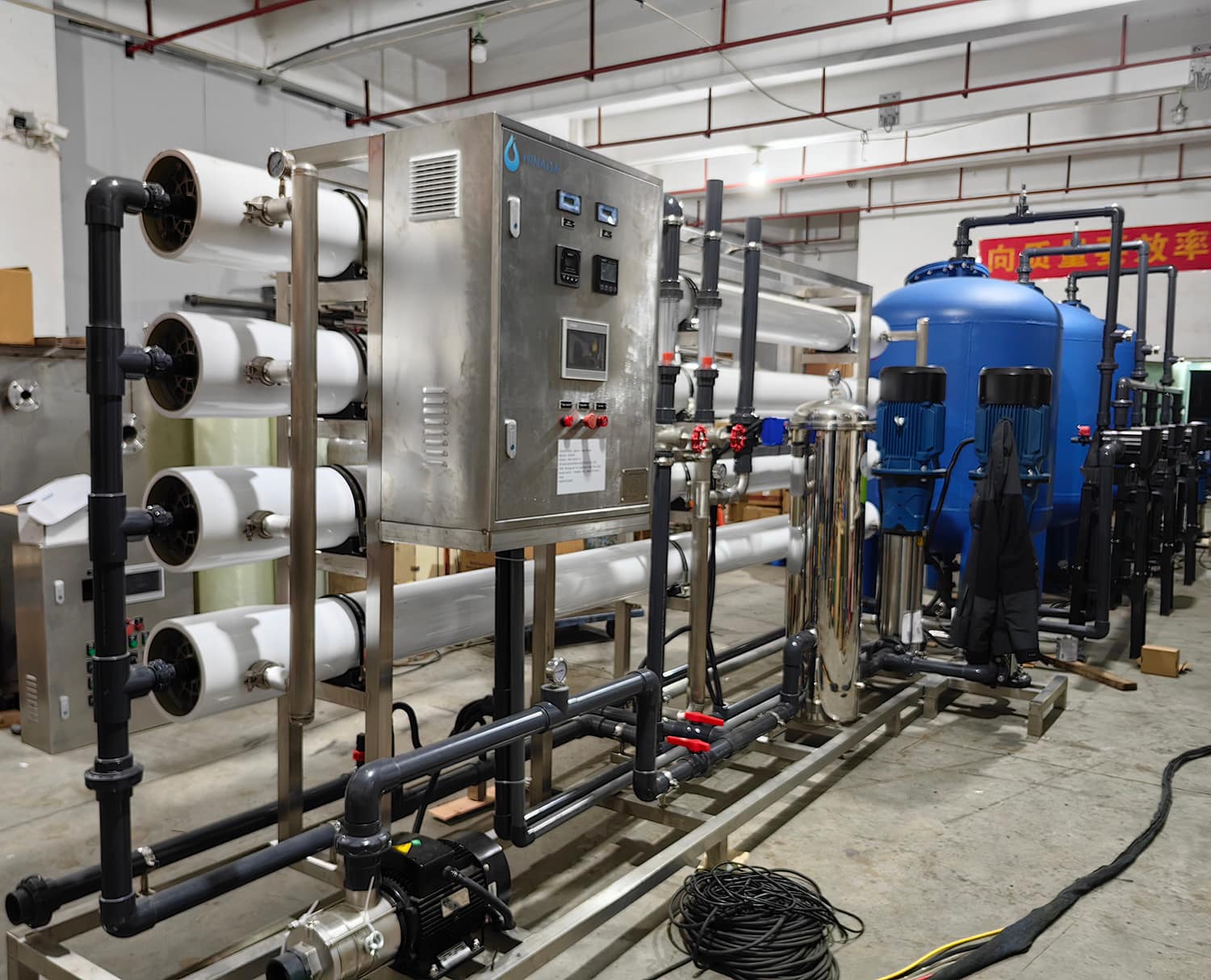

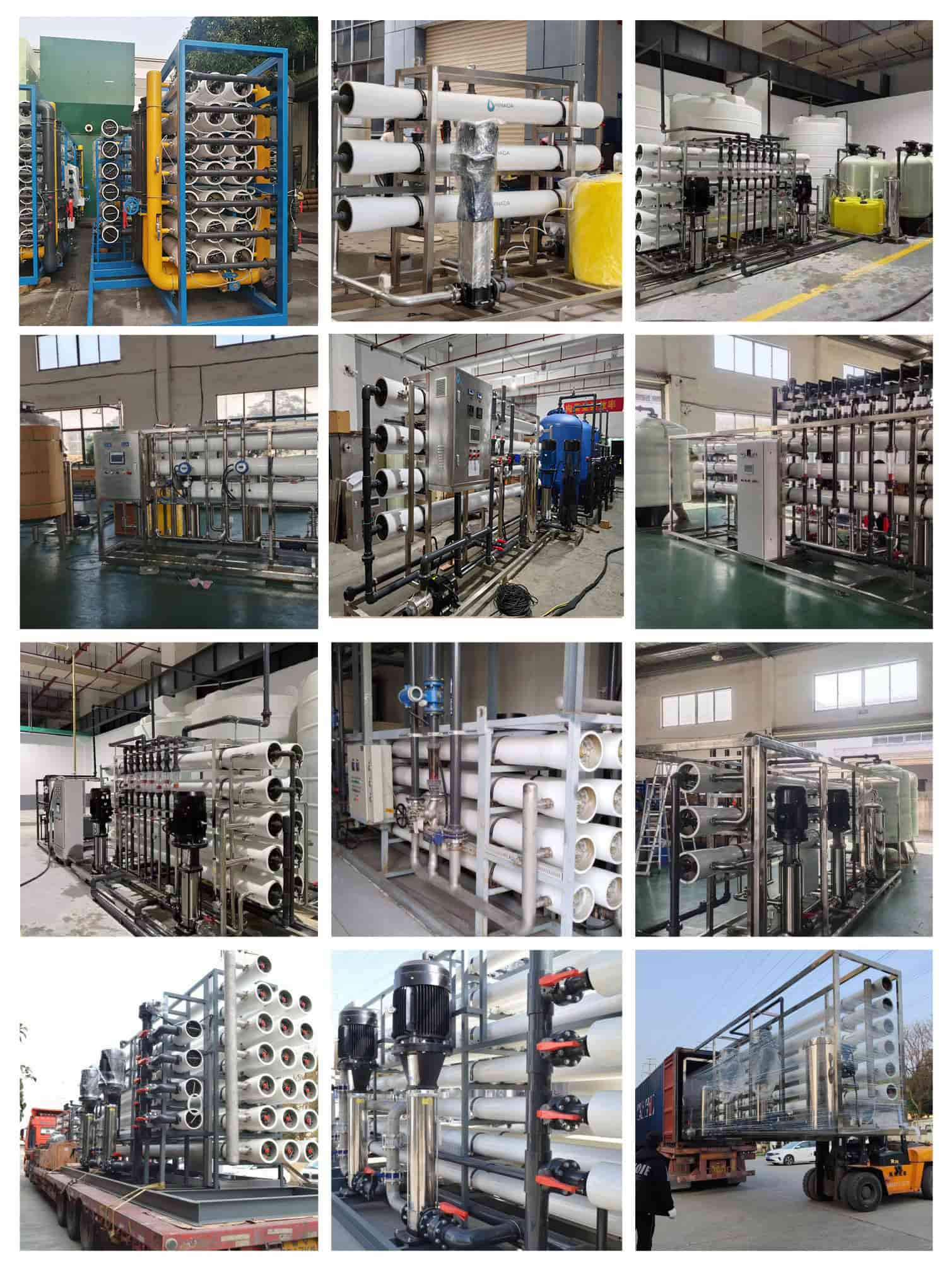

The Photo of the Main Parts
Any further information, please don’t hesitate contact with us.
