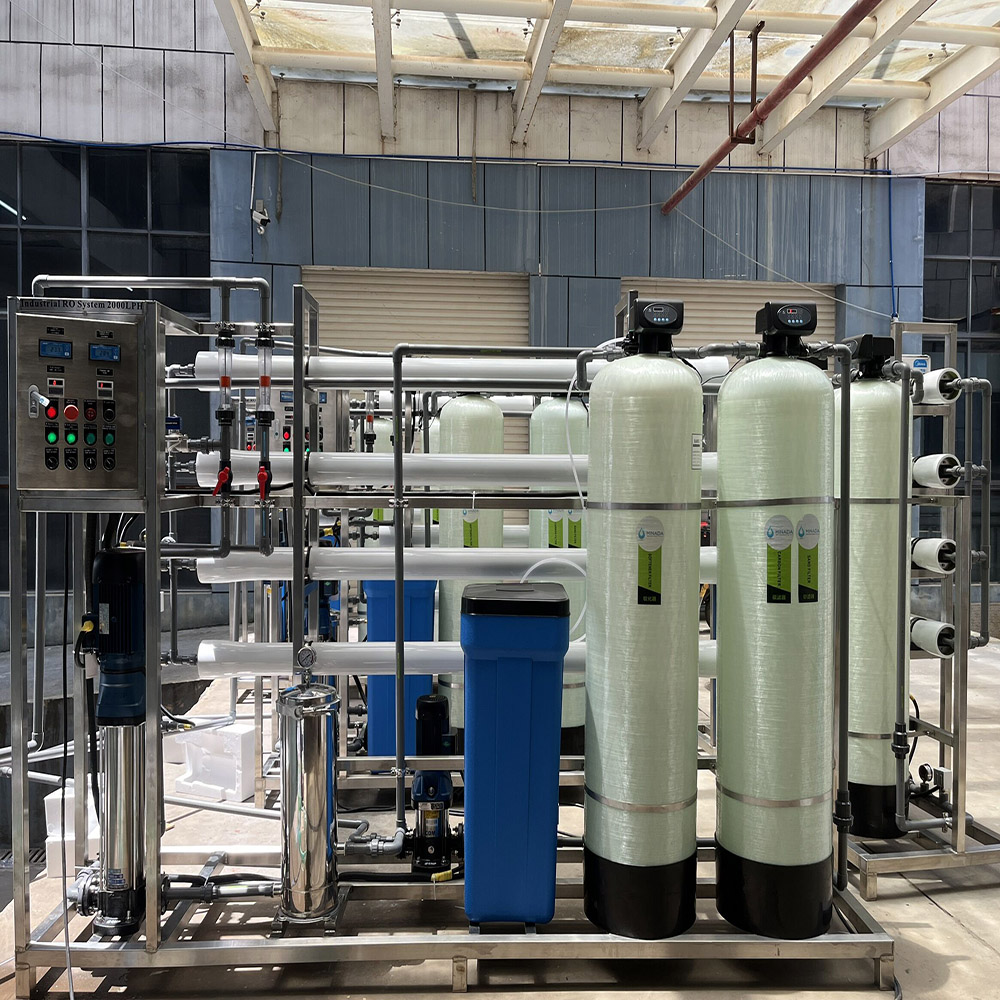

1000LPH Industry RO System for Borehole Water Treatment

Designed to convert  high TDS saline content to drinking water, these systems use high quality RO reverse osmosis brackish water desalination membranes.  These systems use our proven technology to give reliable performance and meet the demanding requirements.

How It Works (Basic Process)

• Pre-treatment – Removes suspended solids, chlorine, and scale-forming compounds (using sediment filters, carbon filters, and often a water softener or antiscalant injection).
• High-pressure pump – Pressurizes the pre-treated water to overcome osmotic pressure.
• RO membrane elements – Water is forced through semi-permeable membranes (typically spiral-wound thin-film composite). Dissolved salts, organics, bacteria, and particles are rejected and sent to drain as concentrate (brine).
• Post-treatment (optional) – UV sterilization, deionization (DI), or remineralization for final polishing.

Key Advantages

• High rejection rate – Removes 95–99% of total dissolved solids (TDS), plus heavy metals, nitrates, and microorganisms.
• Compact footprint – Skid-mounted design fits in small mechanical rooms or shipping containers.
• Low chemical usage – Compared to ion exchange alone, RO reduces regenerant chemicals.
• Automated operation – PLC-controlled with auto-flush, low-pressure shutoff, and conductivity monitoring.
• Modular expansion – Multiple units can be paralleled for higher flow.

1000LPH Industry RO System for Borehole Water Treatment Includes :
* Feed Water Pump
* Pretreatment Filter ( Multi-media filter or Carbon Filter or Softener with Automatical Filter Controller )
* Cartridge filter
* High pressue pump

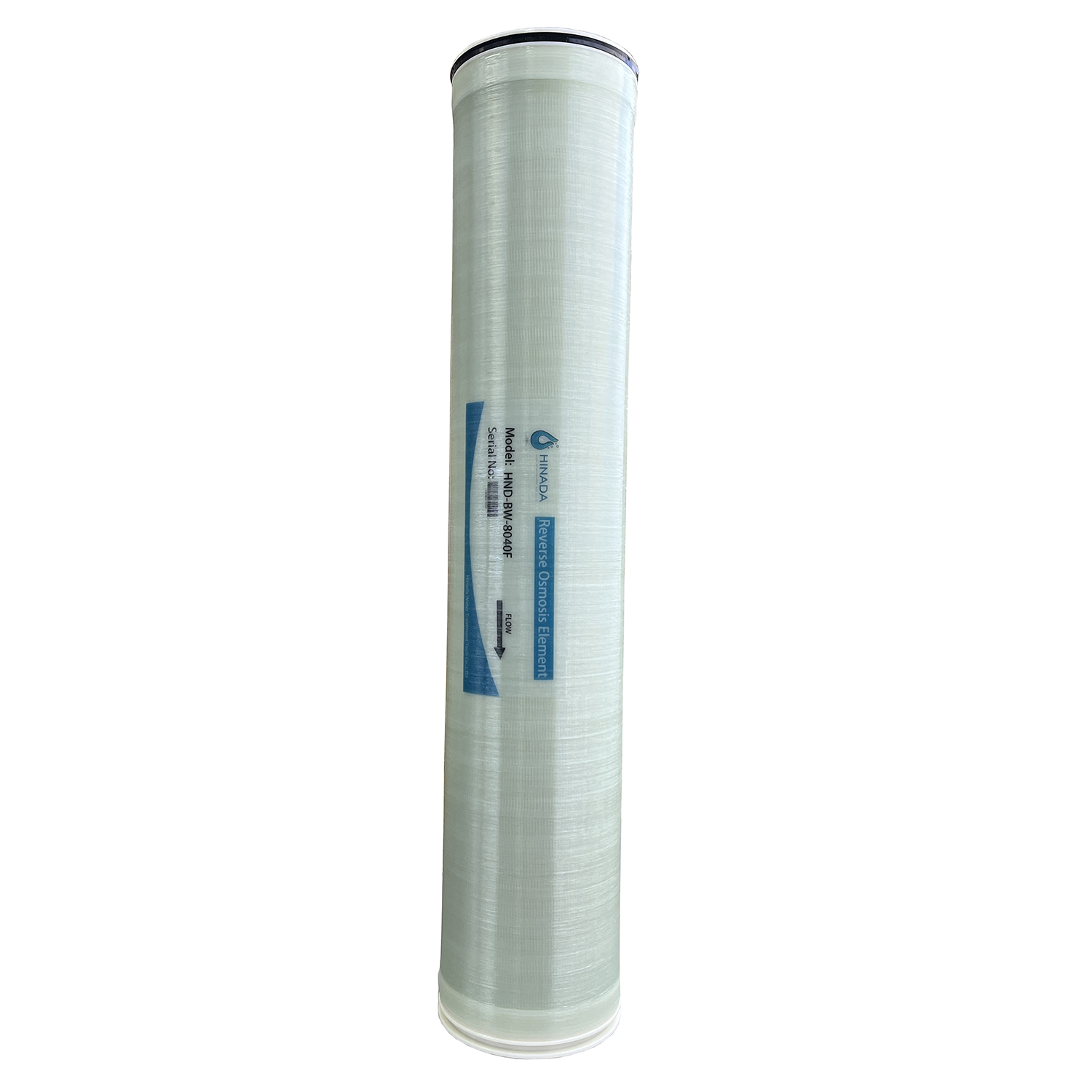

* RO Membrane BW-4040
* Electrical Control Panel
* Conductivity Meter and Pressure Gauges, Flow Meters
* RO System Racking, PVC & Stainless Steel Pipes
* UV Sterilizer

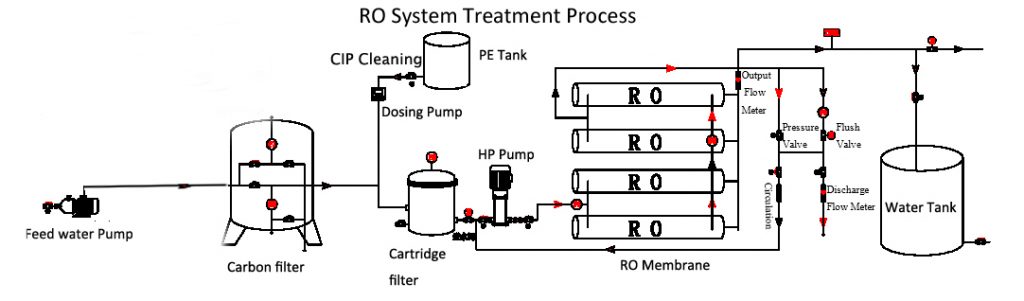

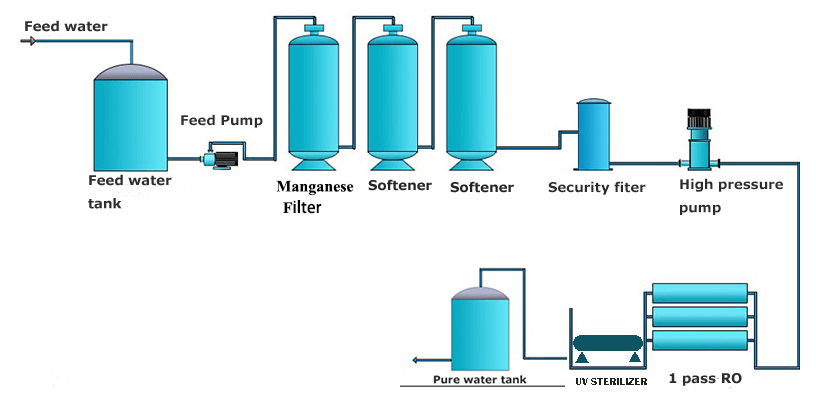

The Water Treatment Process:

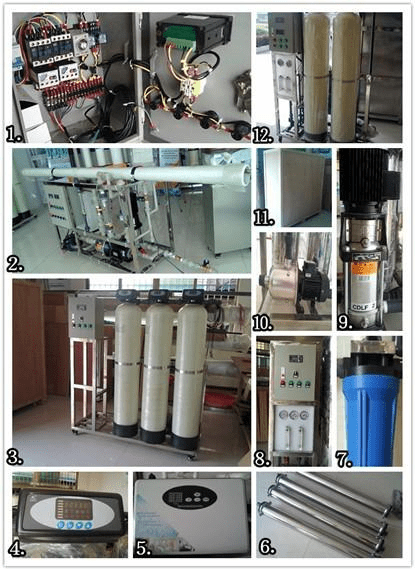

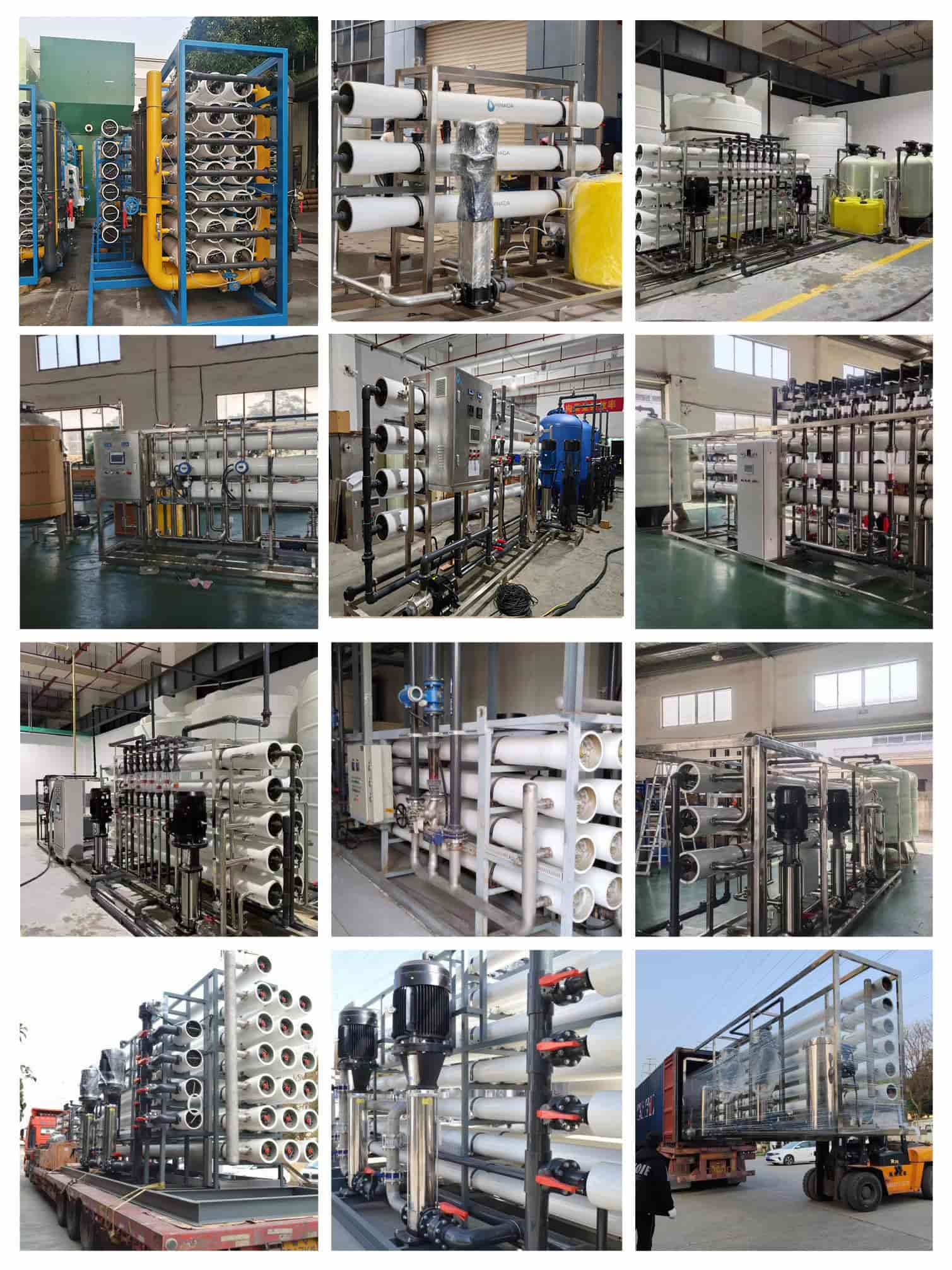

The Photo of the Main Parts

Any further information, please don’t hesitate contact with us.

Application

Designed to convert high TDS saline content to drinking water or other industry application, these systems use high quality RO reverse osmosis seawater desalination membranes.  These systems use our proven technology to give reliable performance and meet the demanding requirements of the marine environment.

From Water makers to drinking water, we offer a few range of Water Desalination Reverse Osmosis Systems—-Compact water maker and Commercial water RO System.

Information requirement for quotation

Reverse osmosis is most commonly known for its use in drinking water purification or other industry application from seawater, removing the salt and other effluent materials from the water molecules.

The basic information of your project requirement for factory:

• What’s the input raw water quality ( or know the TDS value) ?
• What’s the output usage (Application for drinking or other purpose)?
• What’s the capacity per hour?

Hinada has more that 10 years experience, skilled worker and professional engineers, good reputation.
Any inquiry or questions please send to us.

Package

High TDS Desalination Equipment RO Plant will be packaged in plywood case according to requirement.

Our Service

* Hinada is the leading manufacturer of RO System water filtration.
* Supply the completely RO plant
* Installation service
* Commissioning
* After-sales service and online training service
