Home Industrial RO System

Seawater Desalination RO Membrane

Seawater Desalination RO Membrane

Seawater Desalination RO Membrane(8 Inch)
Model: NM-RO-8040
Specifications
Active Membrane Area: 400ft2 (37.2m²)
Permeate Flow: 9000GPD (34 m3/day)
Rejection Rate: 99.8%

Inquire Now

Description

RO Membrane NM-SW-8040 Performance:

Permeate Flow:9000 gpd(34m3/d)
Salt Rejection:  99.4%–99.8%

Type:
Configuration: Low Fouling Spiral Wound
Membrane Polymer: PA (polyamide) Thin Film Composite
Membrane Active Area:400 ft2 (37.2 square meter)
Feed Space: 34mil with biostatic Agent

Testing Conditions:
Standard Solution: 32000 ppm NaCl solution
Operating Pressure psi(MPa)    800(5.52)
Recovery Rate of Single Membrane Element: 4%
Temperature deg C:25
PH Value of Solution: 8
Test Time: Run for 30 minutes

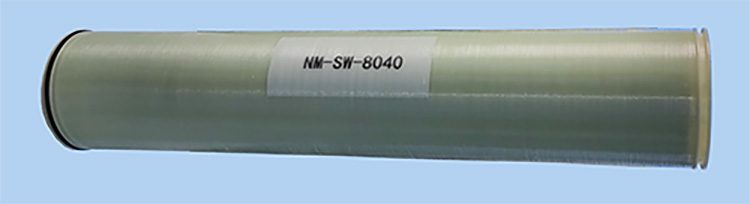

NM-SW-8040 Seawater RO Membrane

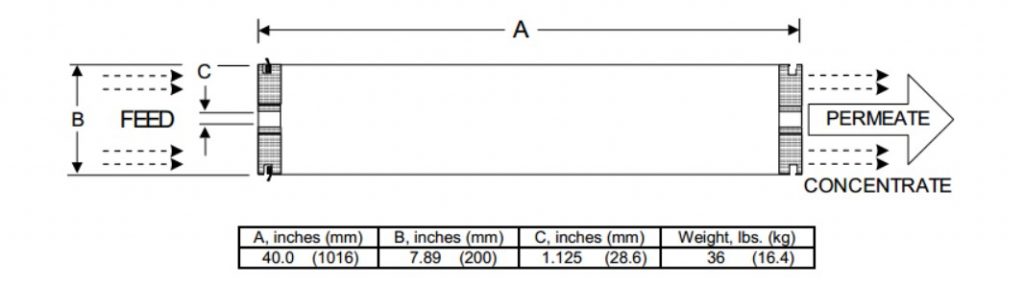

NM-RO-8040 RO membrane dimension

Application

* Max. Feedwater Temperature deg C: 45
* Max. Operating Pressure psi(MPa):1200(8.28)
* Max. Feedwater Flow gpm(m3/h):75(17)
* Max. SDI of Feedwater:  5
* Max. NTU of Feedwater: 1
* Concentration of Free Chlorine( ppm)  < 0.1
* PH Value Range of Feedwater as Continuous Operation: 2-11
* PH Value Range of Feedwater as Chemical Cleaning:1-12
* Max. Pressure Difference of Single Membrane Element psi(MPa):15(0.10)
* The minimal proportion of single membrane element’s conc. press to perm.
* Flow: 5:1 Applicable to the water <30000ppm salt. in electronics, power, petrochemical, food, beverage and pharmacy.

RO membrane element is used for the desalination of Seawater and other similar water and it has high desalination rate and long time stable performance under high flow and high operating pressure.

Video of Seawater Desalination RO Membrane

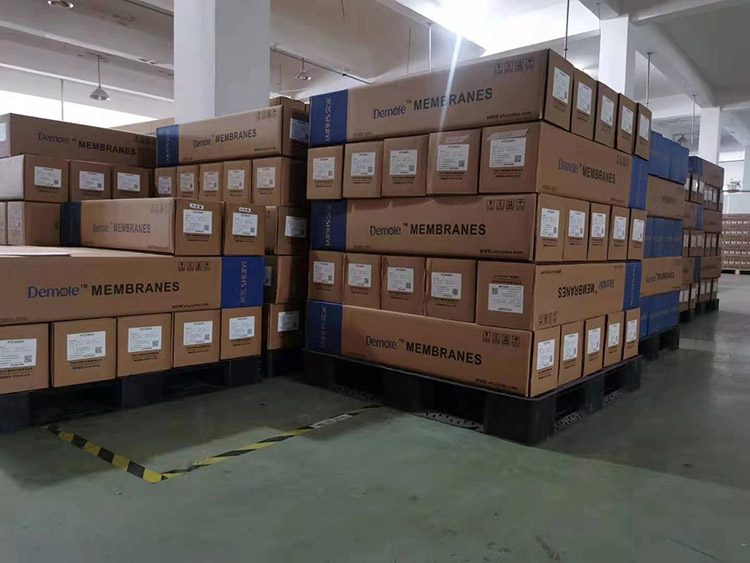

Packaging

Paper carton packaged, Gross Weight around 18kgs/unit.

NM-RO-8040 RO membrane

Our Service

We are the international Leading manufacturer of RO System, we can offer integrating solution according to your client requirement.
According to client requirement offer the RO Membrane 8040 /4040.

Hot Tags :
leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
submit

Related Products

We sincerely hope that customers to visit and exchange, We will be committed to customer personalized products to help customers win the market and achieve a win-win situation.
6000LPH Nano Filtration System Color and TDS Removal
6000LPH Nano Filtration System Color and TDS Removal

Find 6000LPH Purification Nano Filtration System, Hinada is the leading manufacturer of water treatment equipment. Please contact us and get quotation for your project. 6000LPH Purification Nano Filtration System Includes: * Feed Water Pump * Pretreatment Filter ( Multi-media filter) * Cartridge filter * High pressue pump * Nano Membrane

Read More

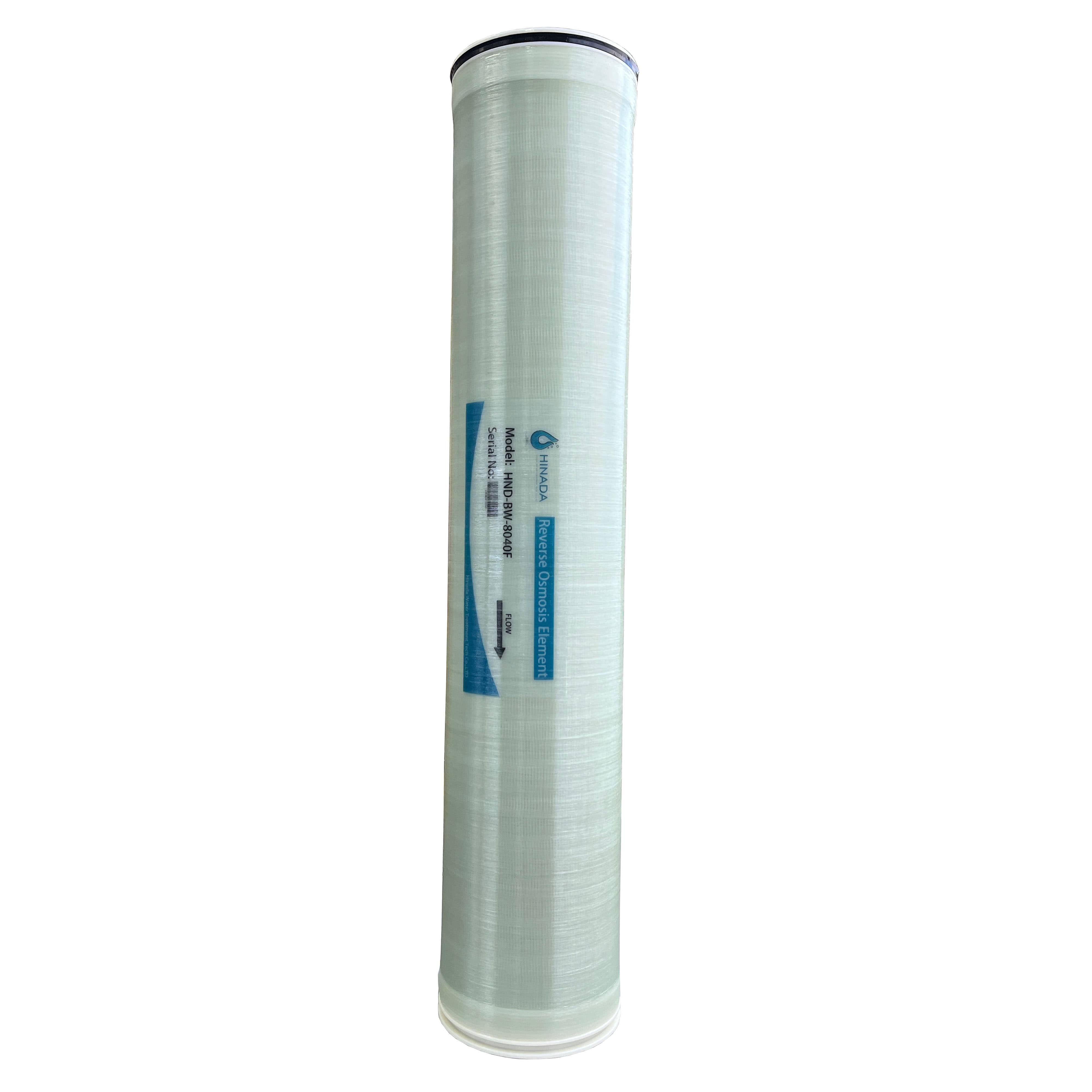

Brackish Water Reverse Osmosis RO Membrane Element
