Product description
Brackish RO membrane is an energy-efficient and anti-pollution desalination solution specifically engineered to treat water with moderate salinity levels (1,000 – 8,000 ppm TDS) at relatively low pressures, making it suitable for a wide range of municipal, industrial, agricultural, and residential applications.
Product Features
- Modification technology
Multi membrane bag structure that pollutants are easily cleaned.
- Short process and wide flow channel
Widen flow channel, dirt blockage is easy to flush out, and low-frequency cleaning has a long service life.

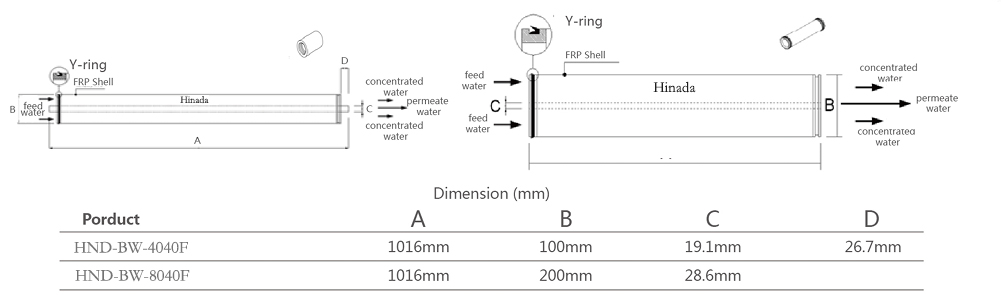

Product dimension:
| Model | A (mm/in) | B (mm/in) | C (mm/in) | D (mm/in) |
| HND-BW-8040F | 1016 /40 | 201 /7.9 | 29 /1.125 | —– |
| HND-BW-4040F | 1016 /40 | 96 /3.8 | 19 /0.75 | 27 /1.05 |
Packing specification
| RO Model | Exterior dimension /mm | Weight of dry membrane/kg | Weight of wet membrane/kg |
| HND-BW-8040F | 1100*210*225 | 13 | 15 |
| HND-BW-4040F | 1090*118*118 | 4 | 4.5 |
Note: 1. Each membrane module is supplied with a water inlet seal ring and a connection adapter at the factory.
- The weight of the wet film depends on the water in the module, and the error is ±1.5kg.
Product performance
|
Model
Item |
Parameters | ||
| HND-BW-8040F | HND-BW-4040F | ||
| Component parameters | Membrane materials | Aromatic polyamide/ PA (polyamide) Thin Film Composite | |
| Structure | Rolled/ Low Fouling Spiral Wound | ||
| Active area (m²) | 37 | 7.6 | |
| Channel width (mil) | 34 | ||
| Application Conditions | Standard test solution | 2000 mg/L NaCl | |
| Operating pressure (MPa) | 1.55 | ||
| Test temperature (℃) | 25 | ||
| Recovery per element | 15% | ||
| pH | 7.0 ~ 8.0 | ||
| Permeate flow rate (2) (m 3 /d) /GPD | 36/9500 | 7.2/1900 | |
| Salt rejection | 99.6% | ||
| Application limits | Max. operating pressure (MPa)/psi | 4.1/600 | |
| Max. inlet flow (m 3 /h)/GPM | 17/75 | 3.6/16 | |
| Inlet temperature range (℃) | 5 ~ 40 | ||
| Inlet pH range | 2 ~ 11 | ||
| Cleaning pH range | 1 ~ 13 （ 3 ） | ||
| Max. inlet NTU | 1.0 | ||
| Max. inlet SDI 15 | 5 | ||
| Inlet chlorine Tolerance (mg/L) | ＜0.1 | ||
| Max. pressure drop (MPa) | 0.1 | ||
Note:（1）Performance parameters are measured after 30 minutes of stable operation of the system;
（2）The deviation of water yield ranges from ±15%;
（3）The recommended temperature for chemical cleaning is ≤30°C, and the pH value of the cleaning solution should not exceed 2.0-12.0 when above this temperature.

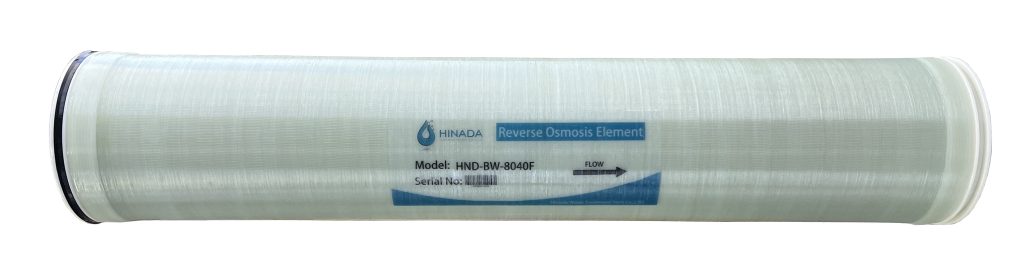

Brackish Water Reverse Osmosis RO Membrane Element
