This Wastewater System in Containerized (Membrane Bioreactor) Treatment Plant is designed for municipal and industrial wastewater treatment, the combination of a membrane process like microfiltration or ultrafiltration with a suspended. The MBR system provides an aerobic microbiological treatment of waste water in which good efficiency is acquired and purified water of good quality is achieved.

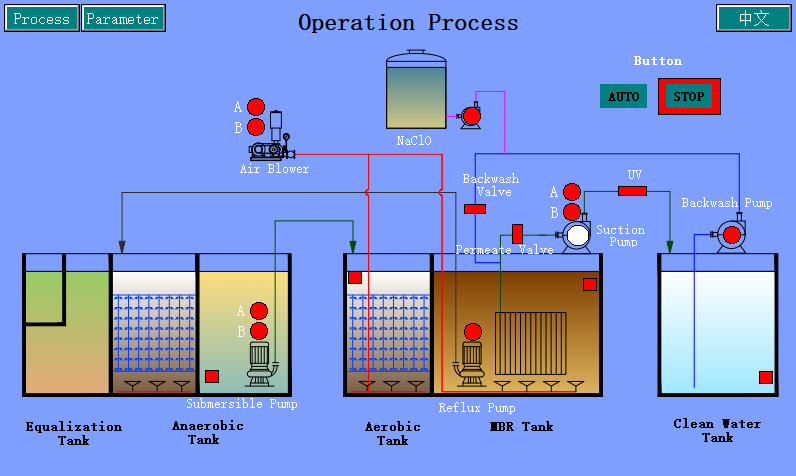

Bar screening, Remove the big solid and suspended
Primary tank, it’s an adjusting water tank, mix the input sewage, adjust the PH & make sure input water supplied stable, this tank builds with the purpose of subsiding the suspended and big particles, it will prolong the life time of the pumps.
Anaerobic tank, the main function is removed the Nitrogen and bacteria, that low down the BOD. The suggest tank size is 2.5—4 times volume of 1 hour treatment waste water .
Aerobic Treatment & MBR System tank, the process involves air or oxygen being introduced into a mixture of screened, and primary treated sewage or industrial wastewater (wastewater) combined with organisms to develop a biological flock which reduces the organic content of the sewage.
The main function is removing the nitrifying bacteria and phosphorus bacteria, and low down the COD& BOD; The tank size normal is about 4-6 times per hours treated quantity waste water.
MBR System is separating the clean water from the sewage.
Clean water tank, for the output clean water, customer supplied.
