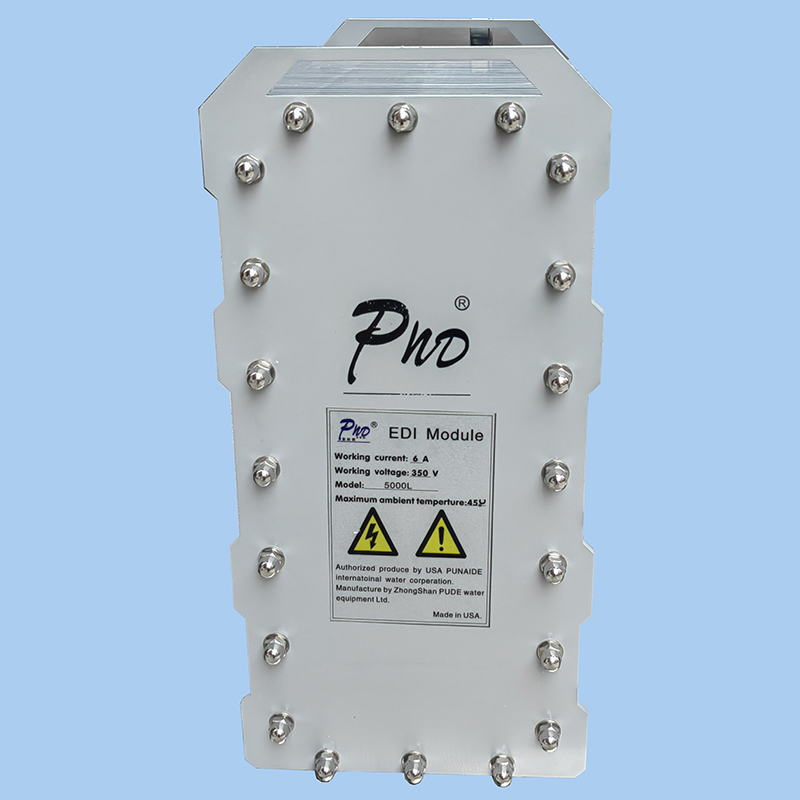

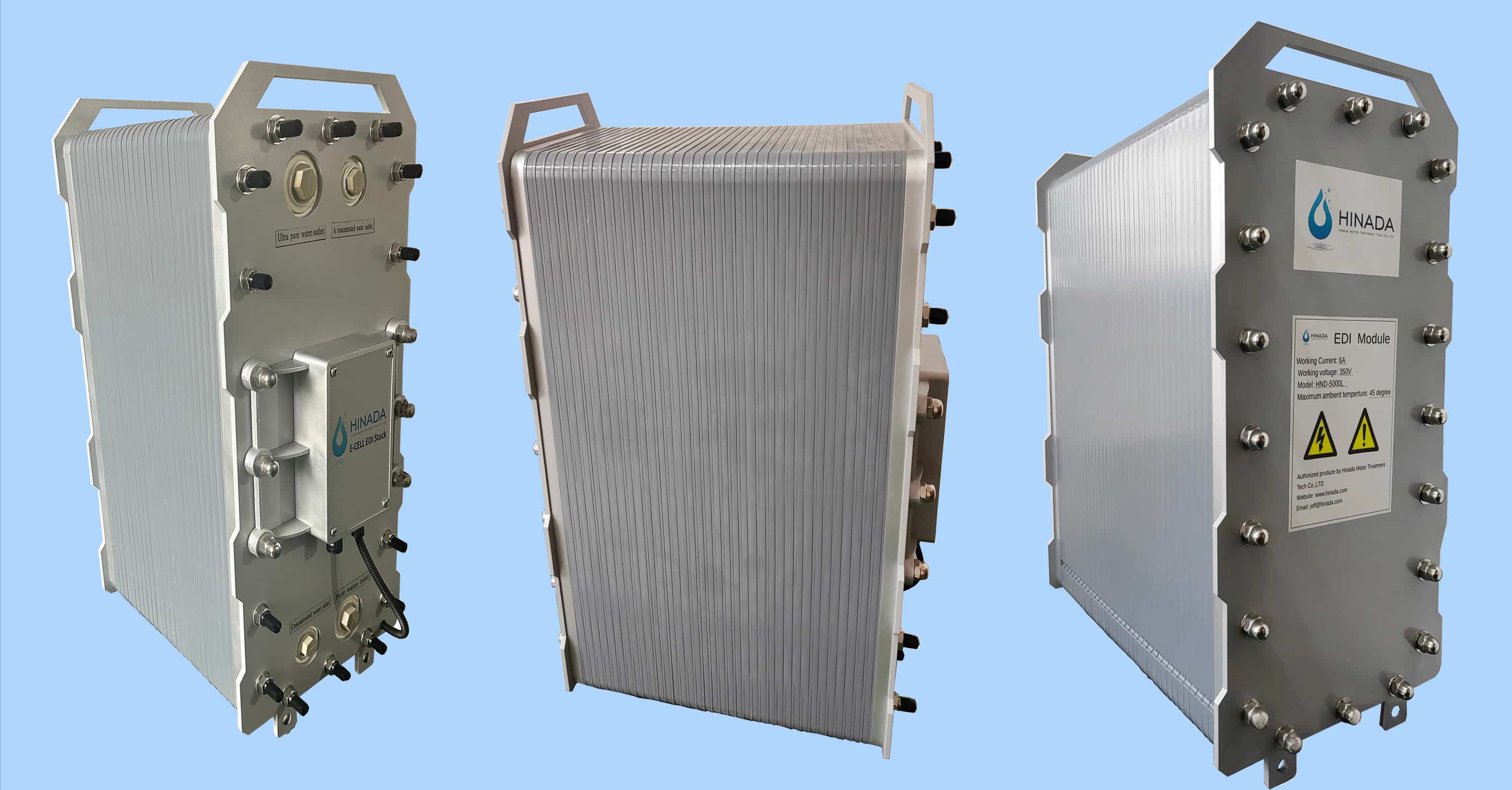

EDI Module Specifications:
| Type | PND-500L | PND-1000L | PND-2000L | PND-3000L |
| water flow rate
（m3/h） |
0.5 | 1.0 | 2.0 | 3.0 |
| recovery rates （%） | 75-85 | 85-95 | 90-95 | 90-95 |
| resistivity（M Ω .cm） | ≥15 | ≥15 | ≥15 | ≥15 |
| Working voltage
（VDC） |
20-50 | 30-60 | 50-100 | 70-140 |
| Working current
（ADC） |
4.0 | 4.0 | 4.0 | 4.0 |
| design voltage
（VDC） |
≤ 200 | ≤ 200 | ≤ 200 | ≤ 200 |
| design current
（ADC） |
≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 |
| Working Pressure
（MPa） |
0.15-0.4 | 0.15-0.4 | 0.15-0.4 | 0.15-0.4 |
| Maximum pressure
（MPa） |
0.4 | 0.4 | 0.4 | 0.4 |
| Connection dimensions | DN25 | DN25 | DN25 | DN25 |
| Concentrated/ outlet | DN25 | DN25 | DN25 | DN25 |
Input water quality standards
In order to make sure the best treatment of the EDI System, It’s better the input water quality meets the below table :
| Raw Water | Output of RO System, the Conductivity ≤ 10 μ/ cm |
| PH value | 6.5—7.5 |
| Temperature | 5℃–38℃ |
| Working Pressure | 0.15—0.4MPa |
| Hardness | ≤1ppm(Take CaCO 3 as sample test) |
| organic matter | TOC <0.5ppm,it’s better none |
| Oxidant | active chlorine（Cl 2 ）< 0.05ppm；
ozone（O 3 ）< 0.02ppm |
| Heavy metals | ions < 0.01ppm (including Fe, Mn) |
| Silicon | < 0.5ppm(by SiO 2 ) |
| CO 2 | CO 2 < 3ppm, if the CO 2 > 3ppm , you can use
NaOH adjust the PH value |
| Particle | ≤1μ m |
Running parameter
Frequency： 50 Hz
Input Voltage： 220V AC
Output Voltage： 0 – 200 VDC
Output current： 0- 6.5A
power consumption：≤ 8 W
Working temperature： 0-45℃
