Packaged MBR System ideal for mining domestic wastewater treatment, because Mining operations often have remote camps, offices, and processing facilities that generate domestic sewage (from kitchens, bathrooms, laundry, etc.). Treating this sewage wastewater on-site is essential for environmental compliance and water reuse.
Capacity can be: 20---to 100 m3/day in one containerized MBR System

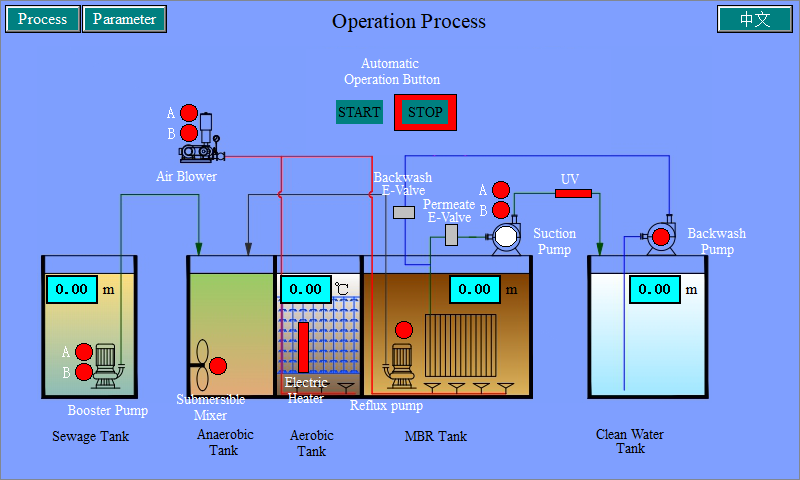

Treatment Process: Pretreatment Bar Screen-------Anaerobic Biological treatment-----Aerobic Biological -------MBR Filtration-------UV Disinfection

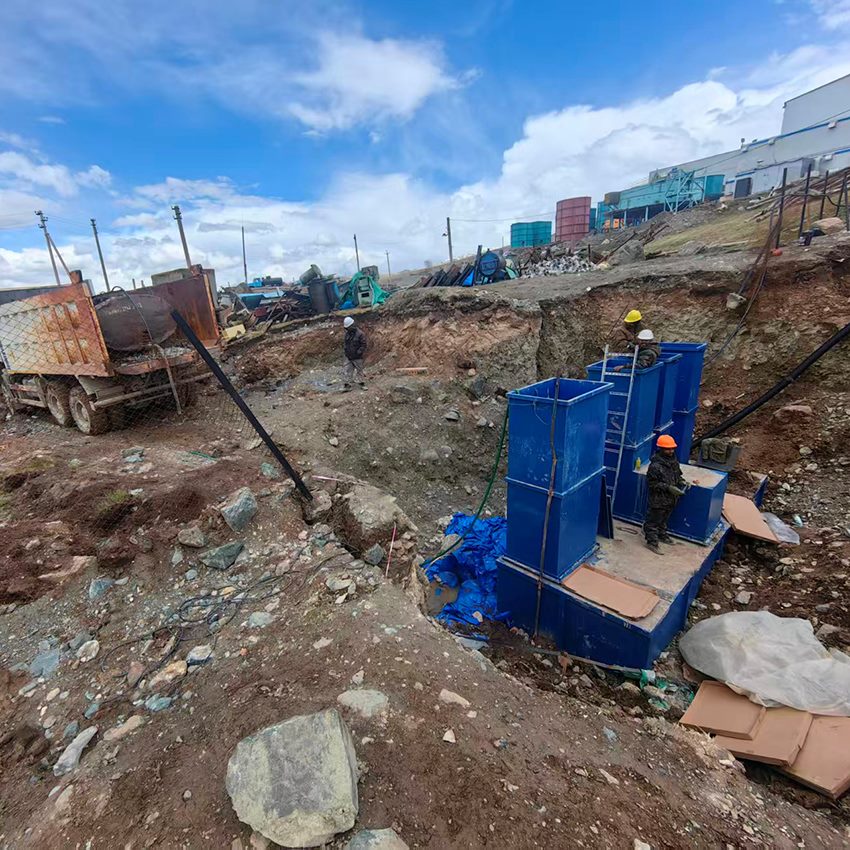

Our previous Similar Projects: Mongolia Gold Mining, Venezuela Gold Mining, Kyrgyzstan Gold Mining
Why Choose Containerized MBR System for Mining Domestic Wastewater?
|
Problems at Mining Sites |
MBR Advantage |
|
Remote area with limited space |
No need WWTP Pipeline investment and concrete civil cost and with Compact footprint |
|
Bad Environmental or climates (cold, dusty, remote), no safety drinking water and food |
Every item auto running with PLC controlled in a containerized MBR System. |
|
Strict discharge/reuse standards for environmental required |
Produces high-quality effluent (low BOD, TSS, turbidity) |
|
No skilled operators |
Highly automated with remote monitoring capability |
Containerized MBR Systems for mining domestic wastewater – Ideal for Remote Mines

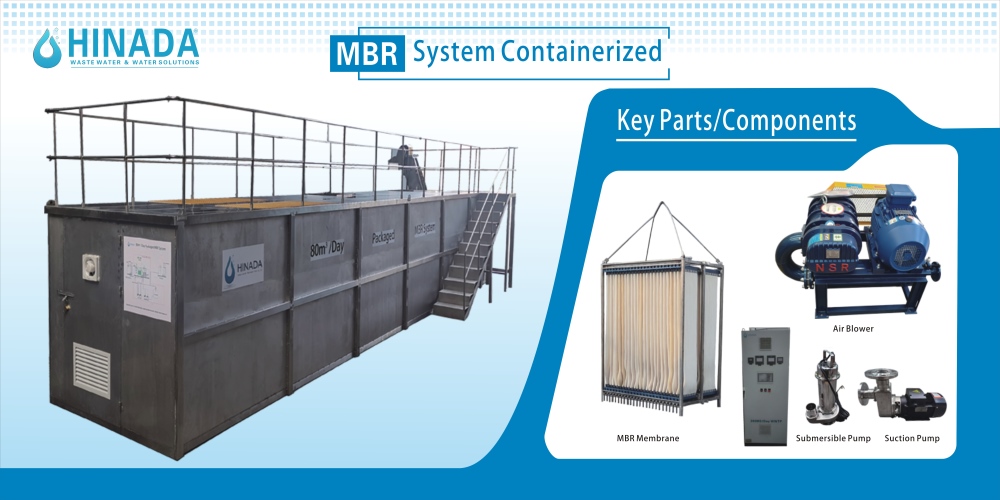

Hinada big brand supplier offer pre-fabricated, skid-mounted MBR systems inside standard shipping containers (20 ft or 40 ft). Benefits include:
Plug-and-play: Minimal site construction
Moveable: Can be relocated as mining operations shift
Temperature control: Insulated and heated for cold climates or installed underground 5m
Remote monitoring: SCADA with cellular or satellite connectivity
If you have the mining project that need domestic wastewater treatment equipment, please share your specific site conditions (flow rate, temperature, discharge limits), feel free to contact with us, and we will offer proposal soon.
Surface Metal wastewater or equivalent or electroplating industrial wastewater treatment, it's need to removing heavy metals like Ni (Nickle removing ) and Cu (Copper removing ) and other contaminants high COD / BOD. Average Capacity : 120m3/Day Material of Container : SUS304 Material Tank + .Epoxy +Fluorocarbon top painting Dimension :2.3×2.5×11.5m <W*H* L> * 2 set Power Consumption :7.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.More details of similar industrial wastewater treatment solution, please contact with us
Read More
Containerized MBR System for Wastewater Treatment, a modern, efficient way, plug-and-play, especially for remote area without municipal pipeline and WWTP, or new project requirement like seashore Hotel or factory. Average Capacity : 10m3/Day Material of Container : Carbon Steel + Anti-corrosion Painting; 5mm thickness of the Carbon Steel or SUS304. Dimension :1.5×2.0×4.0m <W*H* L> Power Consumption :2.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
The parameters of this MBR System: Average Capacity : 80m3/Day Material of Container : SUS304; 3mm thickness Dimension :2.3×2.5×11.5m <W*H* L> Power Consumption :6.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
Hotel Wastewater Treatment System Average Capacity : 5—50m3/Day Material of Container : Carbon Steel + Anti-corrosion Painting; 6mm thickness of the Carbon Steel / or the SUS304. Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More

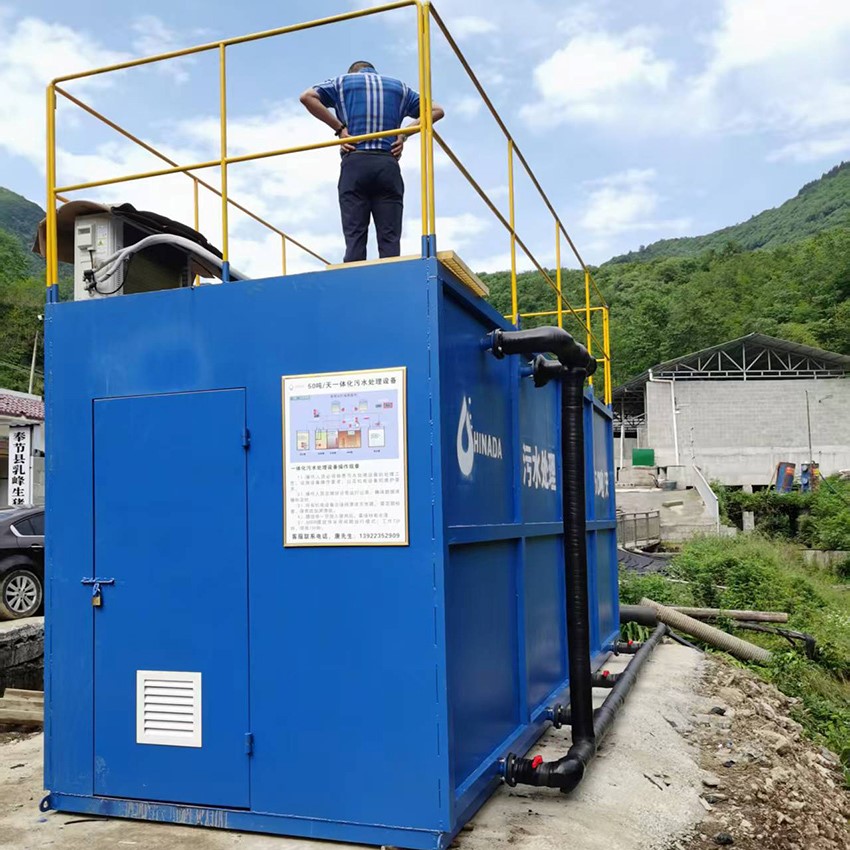

20m3/Day MBR System in Container for wastewater treatment, input water quality: Domestic residual Sewage wastewater or sewage for irrigation purpose or discharge. This packaged wastewater system in container no included the septic tank, oil separator, collection wastewater tank, clean water tank The designed average capacity will be 20m³/Day, peak capacity less than around:24m³/day, 24hours working per day, because of MBR interval working feature, the calculation flow rate as 1m³/hour Material of Container : Carbon Steel + Anti-corrosion Painting; 6mm thickness of the Carbon Steel or SUS304 Material. Dimension :1.5×2.0×4.8m <W*H* L> Power Consumption :3.5KW/H Treatment Process : Manual Bar Screen + A/O Biological treatment + MBR Filtration Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Read More
Mobile Containerized MBR System for Wastewater treatment is ideal choose for resorts, hotels or remote areas, The key issues always from economics consideration that budget on-site civil concrete tank cost and it delivers high-quality wastewater permeate, low operational cost. Average Capacity : 10----200m3/Day (Better less than 200m3/day) Material of Container : Carbon Steel + Anti-corrosion Painting; 8mm thickness of the Carbon Steel or SUS304 Controlling : Automatic Running + PLC + Touch Screen Output Water Quality : Meet the international standards, for discharge or reuse in irrigation or recyce application.
