The parameters of this MBR System:
Average Capacity : 200m3/Day
Material of Container : SUS304 Material Tank or.Epoxy +Fluorocarbon top painting
Dimension :2.3×2.5×11.5m <W*H* L> * 2 set
Power Consumption :7.5KW/H
Controlling : Automatic Running
Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
Mobile Containerized Wastewater Treatment Equipment
Mobile water or wastewater treatment equipment can provide an immediate solution to the problem of small project of wastewater or emergency or temporary requirement.
Mobile units require a smaller commitment of resources for treatment, reduce investment cost and operating costs and environmental footprint, and allow water projects to use a temporary solution before investing in a full-scale installation. Implementing mobile water or wastewater treatment solutions has become more popular as an accepted method of meeting challenging treatment needs, especially when the time frame for decision-making is limited.
Mobile, often containerized, skid-mounted units can be on-site within days, a distinct advantage over traditional installations. Set-up time is shorter, so operations can get back online quickly. A mobile water or wastewater treatment solution is also particularly appropriate for:
Focusing on the company’s core business by hiring someone else to run a less significant part of the operation
Drawing costs from operations, rather than capital expenditure budgets
The capacity can be 5m3---200m3/day WWTP, 24hours working per day, for this range capacity investment cost lower than tranditional solution.
Output Water quality: meet the discharge standard and can use for toilet flushing, gardening, irrigation

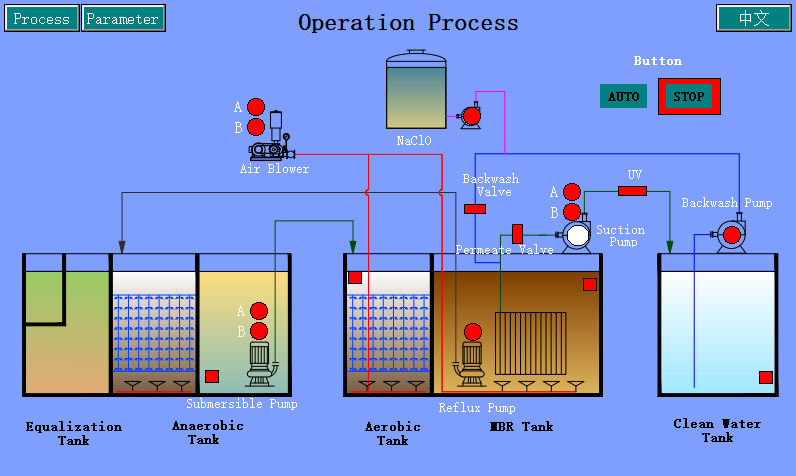

Treatment Process: Wastewater——Bar Screening———— Anaerobic Tank (MBBR)——Aerobic Tank (MBBR) ——MBR Tank MBR Membrane ——Clean Water Tank ——Equipment Room
Containerized MBR System treatment process :
The Standard components for the mobile containerized MBR System
MBR Modular Compact Tank ( Carbon steel + Coating ) Control Panel
This Containerized MBR system (membrane bioreactor) water treatment plant is designed for municipal and industrial wastewater treatment different application such as for industry (food industry, hotels, car wash wastewater), for remote communities without access to a municipal sewage system, but also to improve existing treatment plants.
In addition, for refugee camps or asylum camps where there is a demand to treat large amounts of wastewater in a very short timeframe, containerised systems are an ideal solution, it’s including tourist facilities and military camps
Also for Harbor sewage systems or even in oil rigs and offshore applications, the mobile container wastewater treatment plant is the right choice
Engaging a mobile unit to meet a plant wastewater treatment needs has many advantages. It can be tailored to the specific time frame of the treatment, whether weeks, months, or years. It is also a cost-effective, quick alternative to a full installation.
The advantages of mobile MBR wastewater plant:
The Benifits of Containerized MBR Plant:
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Package
The Containered Wastewater Equipment MBR will be packaged in container or plywood case.
Our Service
1. We are the manufacturer of MBR Membrane / Containerized MBR System for waste water treatment, we can produce the products according to your requirements.
2. We Provides a full range of services , even small sewage treatment plant and water treatment equipment, sewage treatment plant from the design proposal, producing to installation and testing, even after sale. We regard our customer as a long term business partner.
3. Equipment and project sample as your reference.

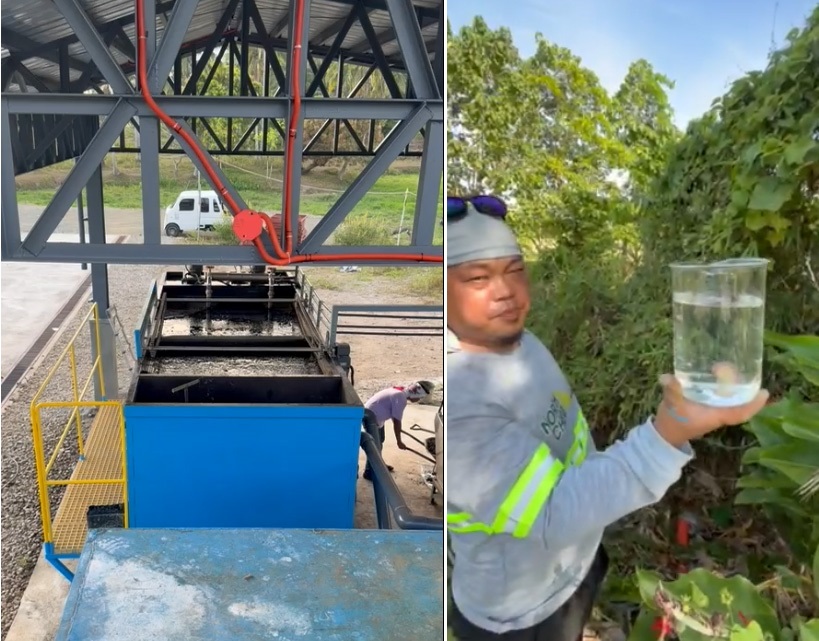

Our video of previous MBR System project
The parameters of this MBR System: Average Capacity : 120m3/Day Material of Container : SUS304 Material Tank + .Epoxy +Fluorocarbon top painting Dimension :2.3×2.5×11.5m <W*H* L> * 2 set Power Consumption :7.5KW/H Controlling : Automatic Running Output Water Quality : Meet the international standards, for discharge or reuse in irrigation.
