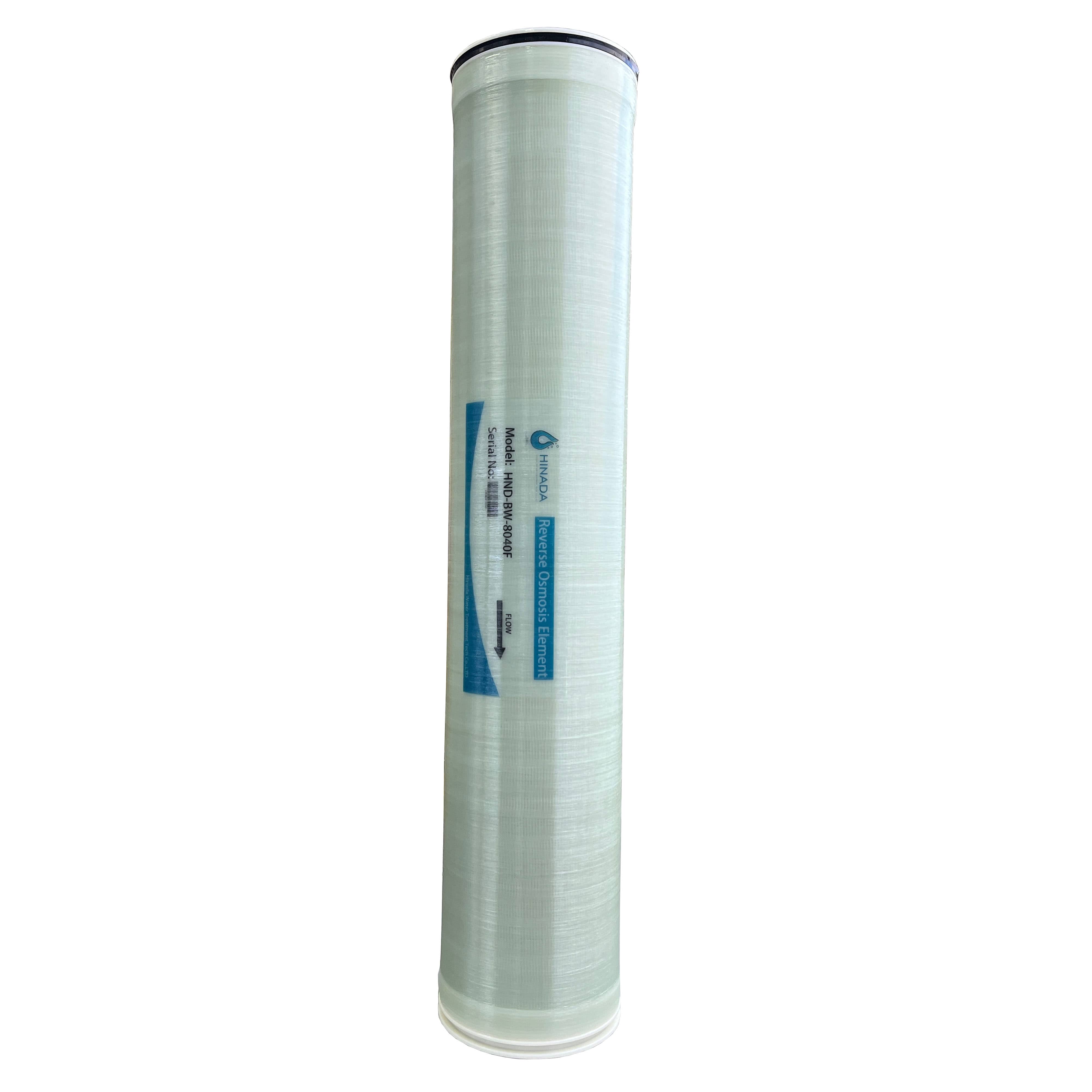

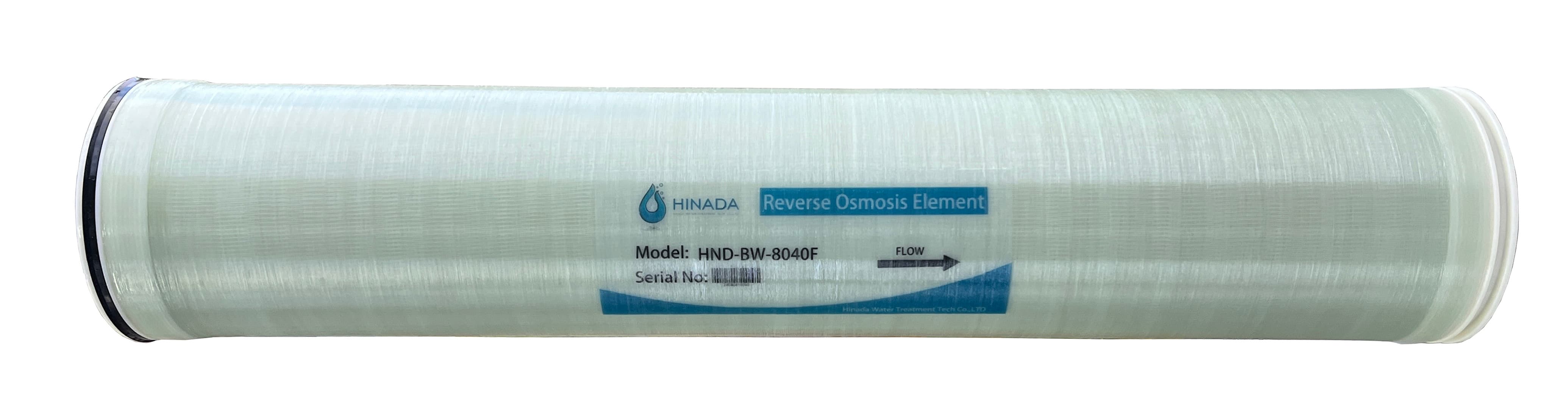

RO Membrane 8040 ULP-4040

Name: RO Membrane 8040 ULP-4040
Availability: InStock

RO Membrane 8040 Performance:
Permeate Flow:11000 gpd(40m3/d)
Salt Rejection: 99.4%–99.7%

Type:
Configuration: Low Fouling Spiral Wound
Membrane Polymer: PA (polyamide) Thin Film Composite
Membrane Active Area:400 ft2 (39.7 square meter)
Feed Space: 34mil with biostatic Agent

Testing Conditions:
Standard Solution: 2000 ppm NaCl soluction
Operating Pressure psi(MPa) 225(1.55)
Recovery Rate of Single Membrane Element: 15%
Temperature deg C :25
PH Value of Solution:7.5
Test Time: Run for 30 minutes

Inquire Now

Product Details

RO Membrane 8040 ULP-4040

Brackish RO membrane is an energy-efficient and anti-pollution desalination solution specifically engineered to treat water with moderate salinity levels (1,000 - 8,000 ppm TDS) at relatively low pressures, making it suitable for a wide range of municipal, industrial, agricultural, and residential applications.

Product Features

Ø Modification technology

Multi membrane bag structure that pollutants are easily cleaned.

Ø Short process and wide flow channel

Widen flow channel, dirt blockage is easy to flush out, and low-frequency cleaning has a long service life.

BW30-400 (DOW Brand)

DOW Model	Average Water Production GPD	Stable Salt Rejection%	TDS (PPM)	Testing Pressure MPa
BW30-400	11000	99.5	500--10000	1.55

Performance:
Permeate Flow:11000 gpd(40m3/d)
Salt Rejection: 99.4%--99.7%

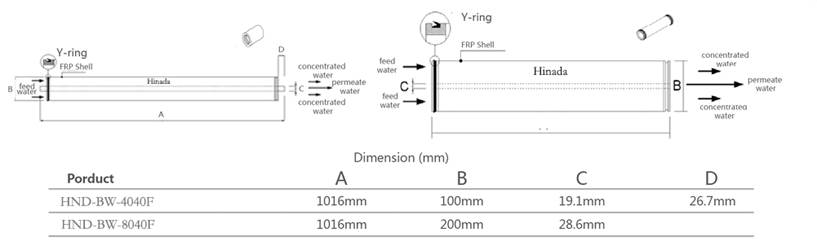

Product dimension:

Model	A (mm/in)	B (mm/in)	C (mm/in)	D (mm/in)
HND-BW-8040F	1016 /40	201 /7.9	29 /1.125	-----
HND-BW-4040F	1016 /40	96 /3.8	19 /0.75	27 /1.05

Application

* Max. Feedwater Temperature deg C: 45
* Max. Operating Pressure psi(MPa):600(4.12)
* Max. Feedwater Flow gpm(m3/h):75(3.6)
* Max. SDI of Feedwater: 5
* Max. NTU of Feedwater: 1
* Concentration of Free Chlorine( ppm) < 0.1
* PH Value Range of Feedwater as Continuous Operation: 2-11
* PH Value Range of Feedwater as Chemical Cleaning:1-12
* Max. Pressure Difference of Single Membrane Element psi(MPa):15(0.10)
* The minimal proportion of single membrane element’s conc. press to perm.
* Flow: 5:1 Applicable to the water <5000ppm salt. in electronics, power, petrochemical, food, beverage and pharmacy.

RO membrane element is used for the desalination of brackish water and other similar water and it has high desalination rate and long time stable performance under high flow and low operating pressure.

Benifits

* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.

Packaging

Packing specification

RO Model	Exterior dimension /mm	Weight of dry membrane/kg	Weight of wet membrane/kg
HND-BW-8040F	1100210225	13	15
HND-BW-4040F	1090118118	4	4.5

Note: 1. Each membrane module is supplied with a water inlet seal ring and a connection adapter at the factory.

2. The weight of the wet film depends on the water in the module, and the error is ±1.5kg.

Our Service

Hinada is the leading manufacturer of UF | MBR Membrane.
Hinada is the distributor of RO membrane 8040 4040, and we can according to client requirement design and assembly the RO System.
