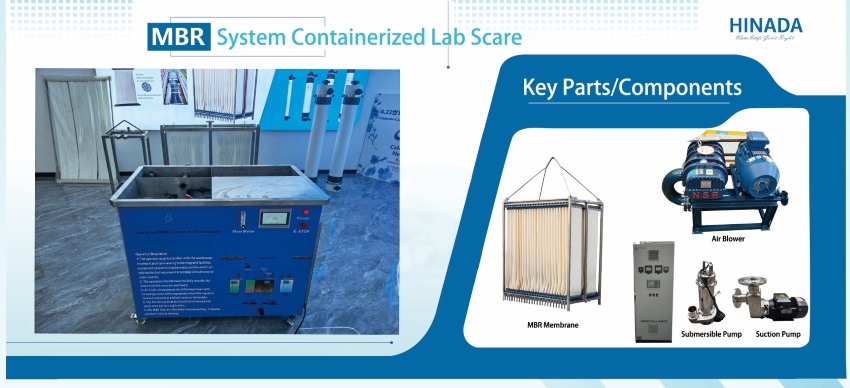

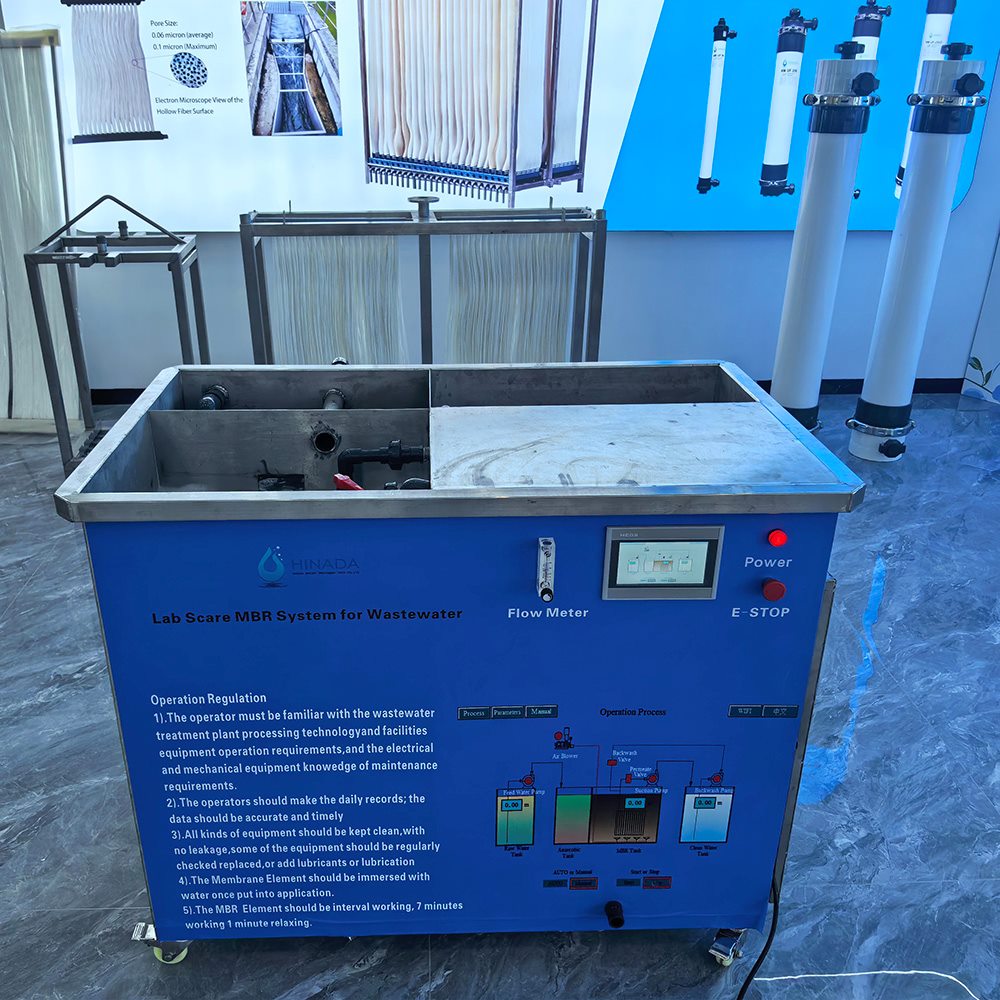

Hinada supplied a lab-scale MBR system to the Echnological and Higher Education Institute of Hong Kong (THEi) for advanced wastewater research.
The system features four integrated zones: anaerobic, aerobic, MBR, and a clean water tank — a complete treatment train in one compact footprint.
At the core is our MBR membrane, delivering reliable solid-liquid separation without a secondary clarifier.
The system includes a user-friendly touchscreen control panel. Monitor and adjust key parameters with ease.
Real-time data. Reliable performance. Perfect for research and testing.
We provide lab-scale and pilot-scale systems to universities, research &D Team worldwide.
Contact us. Let’s advance water research together.

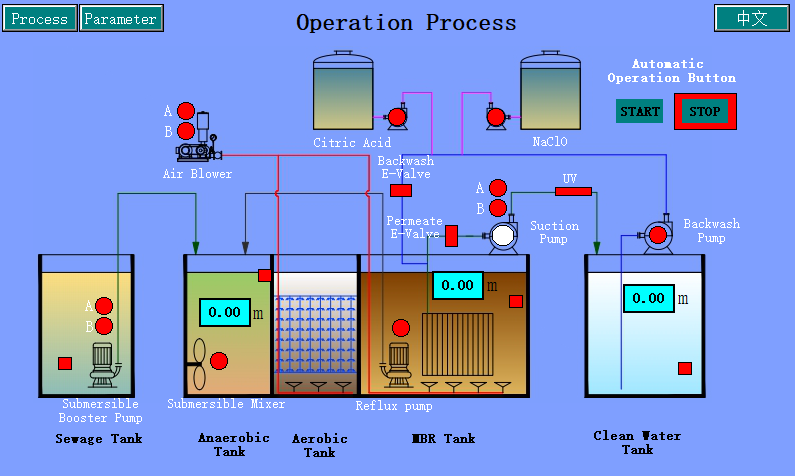

Containerized MBR System treatment process :
1m3/Day Containered MBR System main parts Included:
|
NO. |
Products |
Specification |
Quantity |
|
1 |
Anaerobic Tank |
SUS304 Material 2mm Thickness （L=0.4m, W=0.75m, H=1.0m） |
|
|
1.1 |
Booster Pump |
Q=0.5m3/h，H=13m，N=0.1Kw |
1 unit |
|
1.3 |
Liquid Level Detector |
Key-3, float level detector, 5m |
1 |
|
1.4 |
MBBR |
Moving bed Biofilm Reactor |
1set |
|
2 |
MBR Tank |
SUS304 Material 2mm Thickness （L=0.4m, W=0.75m, H=1.0m） |
|
|
2.1 |
Air Blower Machine |
Air Blower system (Q=0.1m3/MIN H=0.8m) ，N=0.30Kw |
1 |
|
2.2 |
Suction Pump |
Q=0.5m3/h，H=13m，N=0.2Kw |
1 |
|
2.3 |
Backwash Pump |
Q=0.5m3/h，H=13m，N=0.2Kw |
1 |
|
2.4 |
MBR Membrane Module |
Material: PVDF Hollow Fiber Model: NM-RMBR-1002; Area: 2 ㎡; Dimension: 300×400x45mm Design Flow: 10-25L/m2.h I/O Diameter: 1.0mm/2.2mm Pore Size: 0.06μm |
2pcs |
|
2.5 |
MBR Frame Skid |
Material: Stainless 304 2 Sets / Skid Dimension:285*500*750mm; Including: Collect water pipes, aeration system, output water pipes |
1 |
|
2.6 |
Pressure Gauge |
0—0.6MPa |
1 |
|
3 |

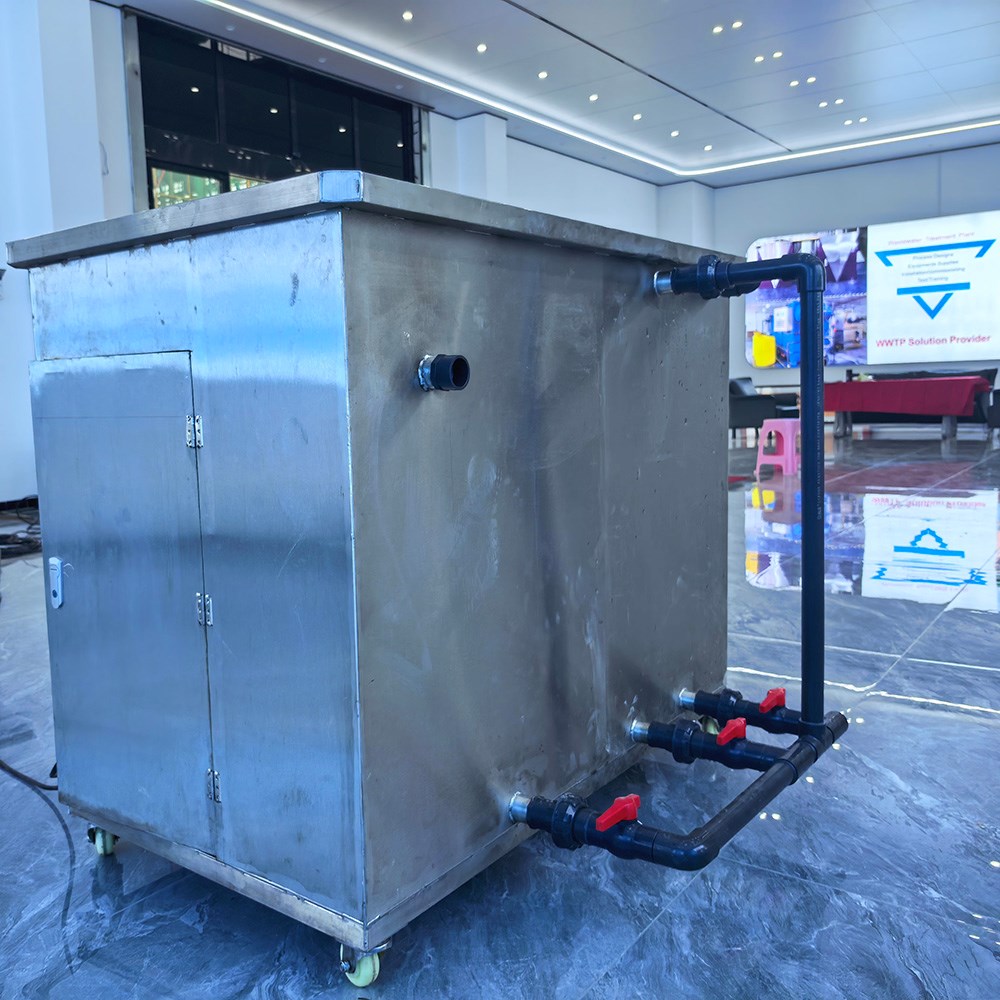

Equipment Room |
SUS304 Material 2mm Thickness （L=0.5m, W=0.75m, H=1.0m） |
|
|
3.1 |

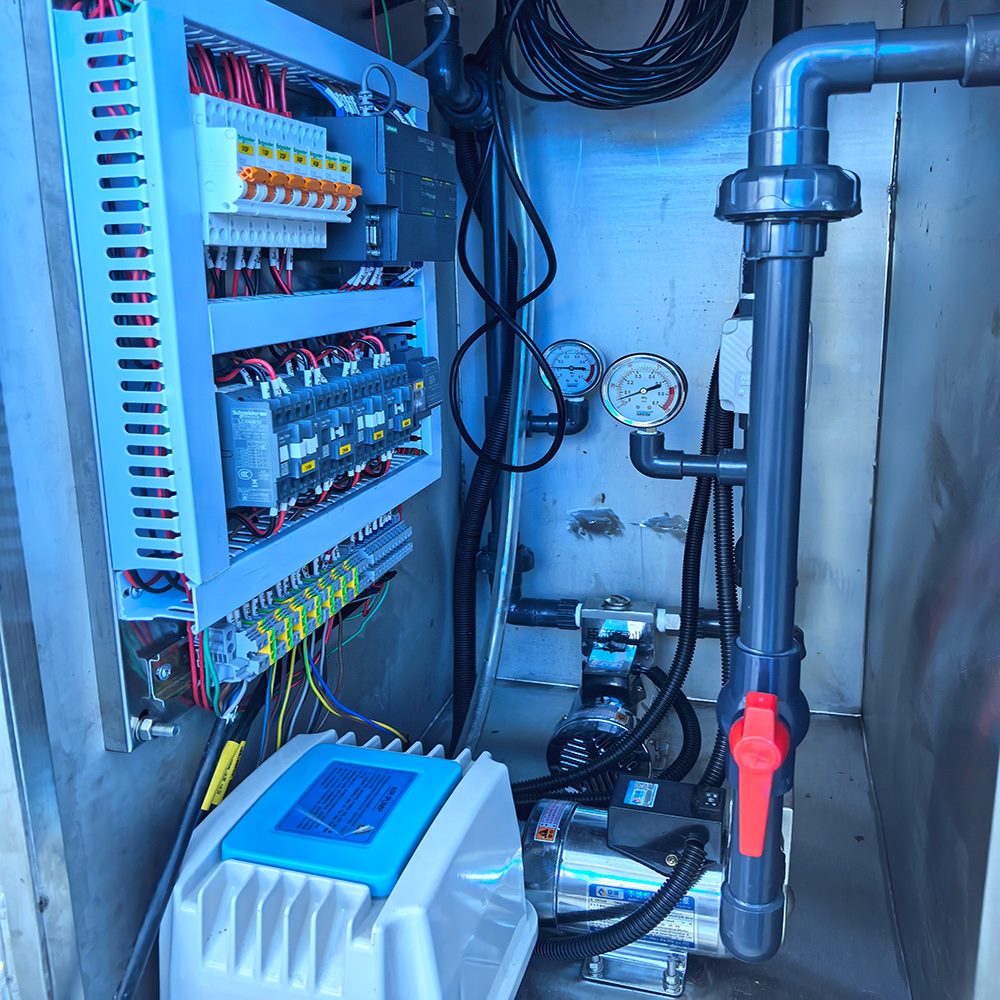

Control System ,cable |
Automatic control system Electric Cabinet |
1 |
|
3.2 |
Pipes, Valves |
UPVC Pipes / SUS304 Pipes and other fitting Valves, flow meter, pressure gauge |
1 |
The Standard components for the mobile containerized MBR System
